Real-time functions and outputs
158 A03031_24_E00_01 HBM: public QuantumX
S The peak value units do not accept other peak value units or RMS as input.
Only the 4 analog inputs are allowed.
Peak value function
Each peak value detection unit can monitor either the Min peak or the Max
peak of one of the module's 4 analog input channels. A peak value unit may
operate in different modes:
S EXPORT: peak values will be continuously updated
S HOLD: last peak value will be "frozen"
S PEAK VALUE: peak value detection enabled
S FOLLOW: peak value detection disabled, i.e. the channel returns the origi
nal signal of the input channel
The following combinations are possible:
RUN MAX PEAK VALUE
HOLD MAX PEAK VALUE
FOLLOW HOLD MAX
This also applies to minima.

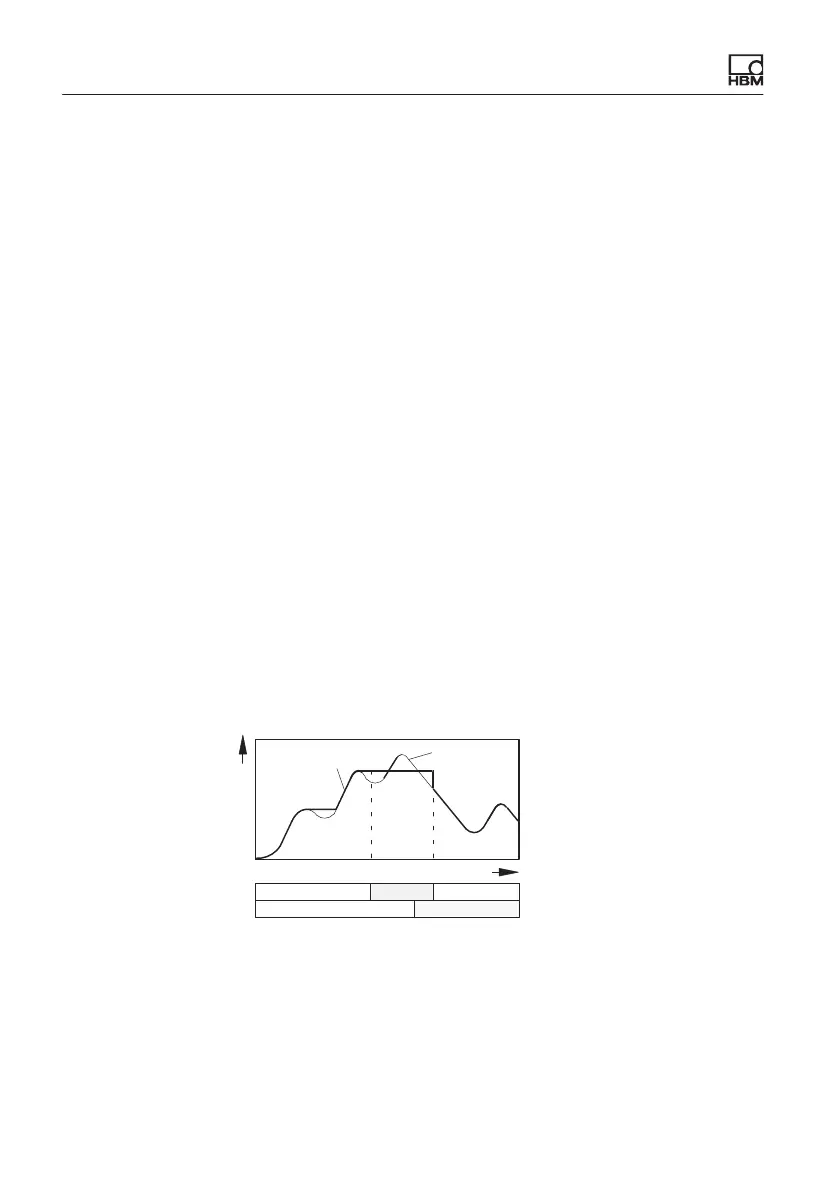

Graph for the peak value function
Measurement
signal
Output
t
V
i
, V
o
HoldRun Run
Function
Operating mode
Peak value
Follow
Function for Root Mean Square (RMS) calculation
RMS is computed from one of the module’s 4 analog input channels according
to the formula:
