Synchronzing via Ethernet PTPv2 (IEEE1588:2008)
Ethernet-
PTPv2Switch
PTP
PTP
PTP

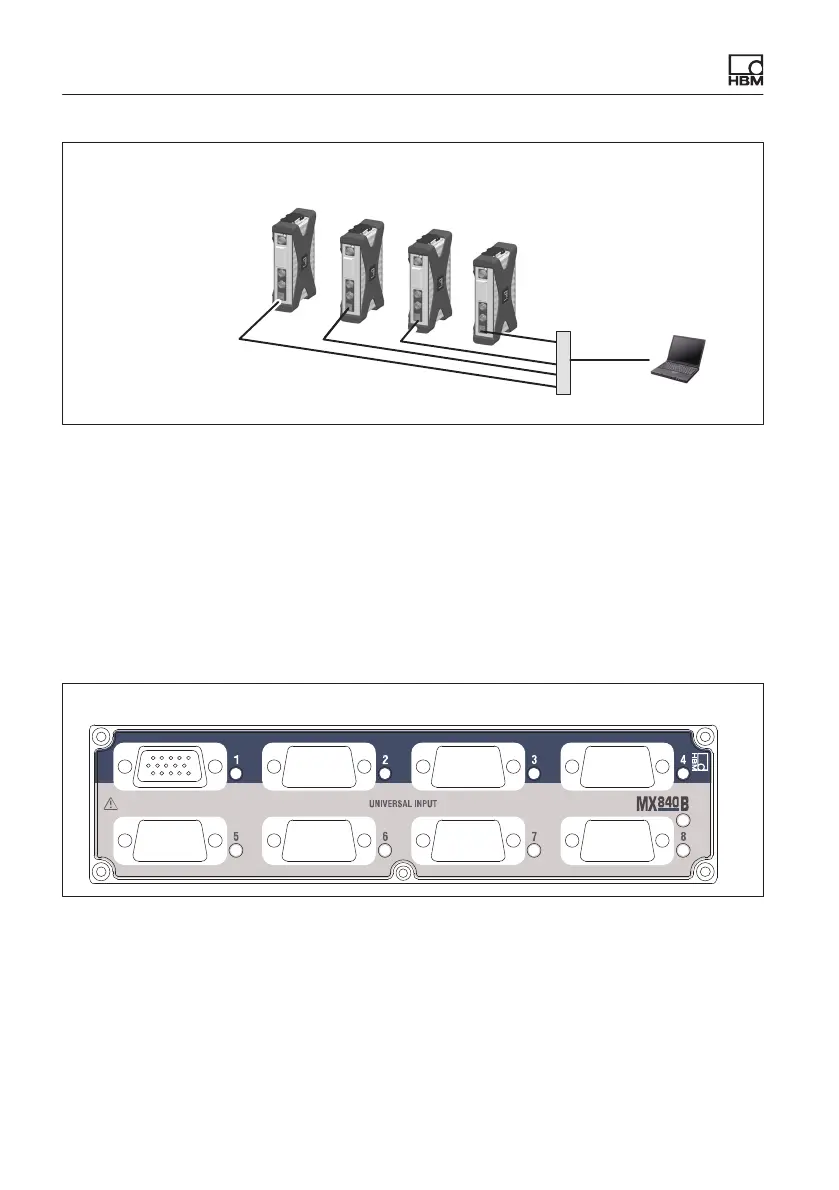

Fig. 4.1 Different methods of time synchronization
Additional information on the subject of "synchronized"
To achieve a precise reference over time, the applicable channels must be
parameterized with the same filter settings. In the modules no automatic run
time correction is carried out. The filter runtimes are shown in the respective
data sheet. After booting and successful synchronization, the system LED is lit
green. If synchronization is disturbed, or not yet established, the system LED is
lit orange.
Example: MX840B
