Mechanical

42 A03031_24_E00_01 HBM: public QuantumX

Case clip

2.5 a.f.

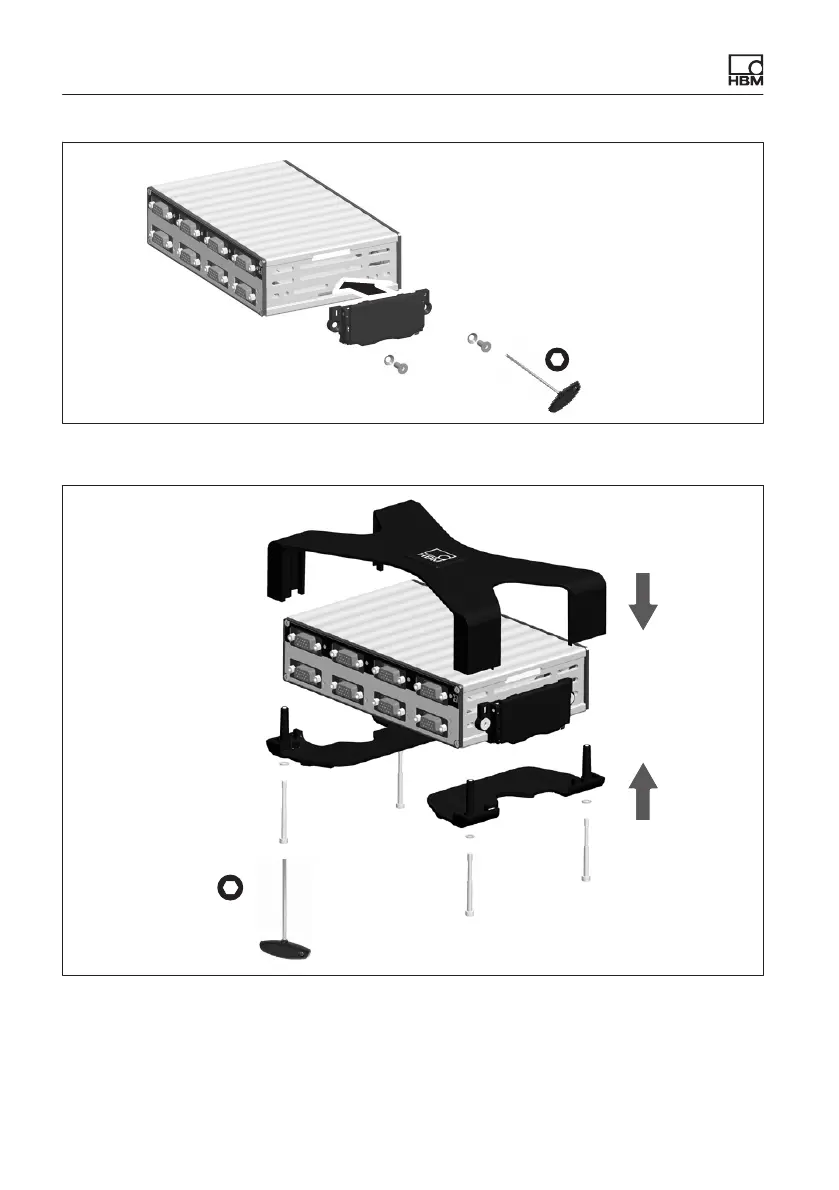

Fig. 6.4 Mounting the case clip CASECLIP

2.5 a.f.

Fig. 6.5 Mounting the case protection CASEPROT
