Connecting individual QuantumX modules
56 A03031_24_E00_01 HBM: public QuantumX
Maximum power consumption, including transducer
excitation voltage (watts)
Module
MX403B 10
MXFS 17
CX22B-W/CX22B 12
CX27C 7
MX878B 7
MX879B 7
If several modules are connected to each other via FireWire for time-synchro
nous data acquisition (see Fig. 7.4), the supply voltage can be looped through.
The power pack used must be able to provide the appropriate output.
The maximum permissible current on the IEEE1394b FireWire connection
cable is 1.5 A. If the chain is longer, repeating the supply connection is manda
tory.
If several amplifiers are operated non-synchronously (see Fig. 7.3), they must
be supplied separately.
X104
NTX001
1-Kab271-3
Or
X101/X102
1-KAB272
FireWire

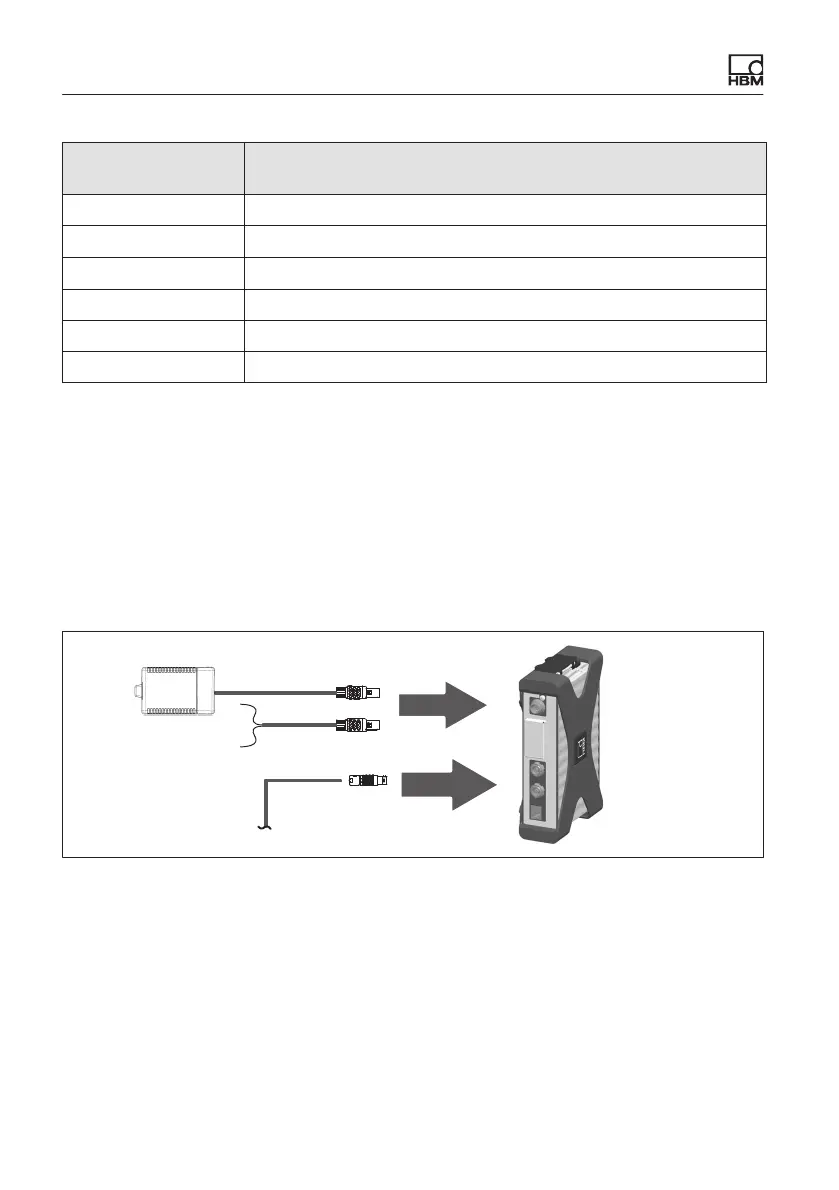

Fig. 7.1 Connecting socket for supply voltage
