HBM WTX110 - ADM (Analog Sensors)

Installation
20 A4774-1.0 HBM: public WTX110
4 Installation
4.1 Overview of connections
4.1.1 ADM (analog sensors)

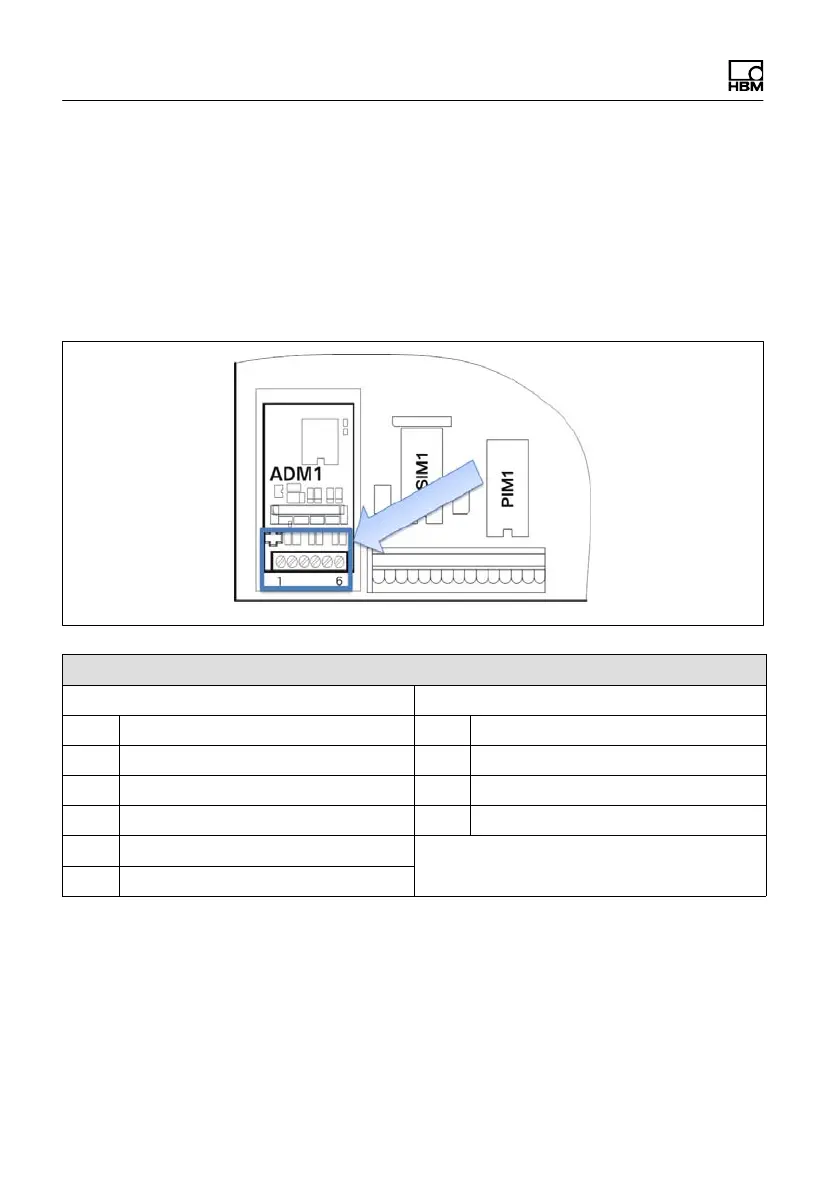

ADM for analog sensors in slot ADM1
6 wires 4 wires
1 + Excitation 1 / 3 + Excitation
2 – Excitation 2 / 4 – Excitation
3 + Sense 5 + Signal
4 – Sense 6 – Signal
5 + Signal
6 – Signal
