HBM WTX110 - Limit Switches

Application
114 A4774-1.0 HBM: public WTX110
8.2 Limit switches
For more information on the keys necessary to access this menu group, go to
the Navigation Pilot.
Information
Limit switches are only available with the Application:Standard option.
The Limit switches function provides up to four independently adjustable limit
switches, each capable of monitoring one of 2 possible signal sources in
4 different modes.

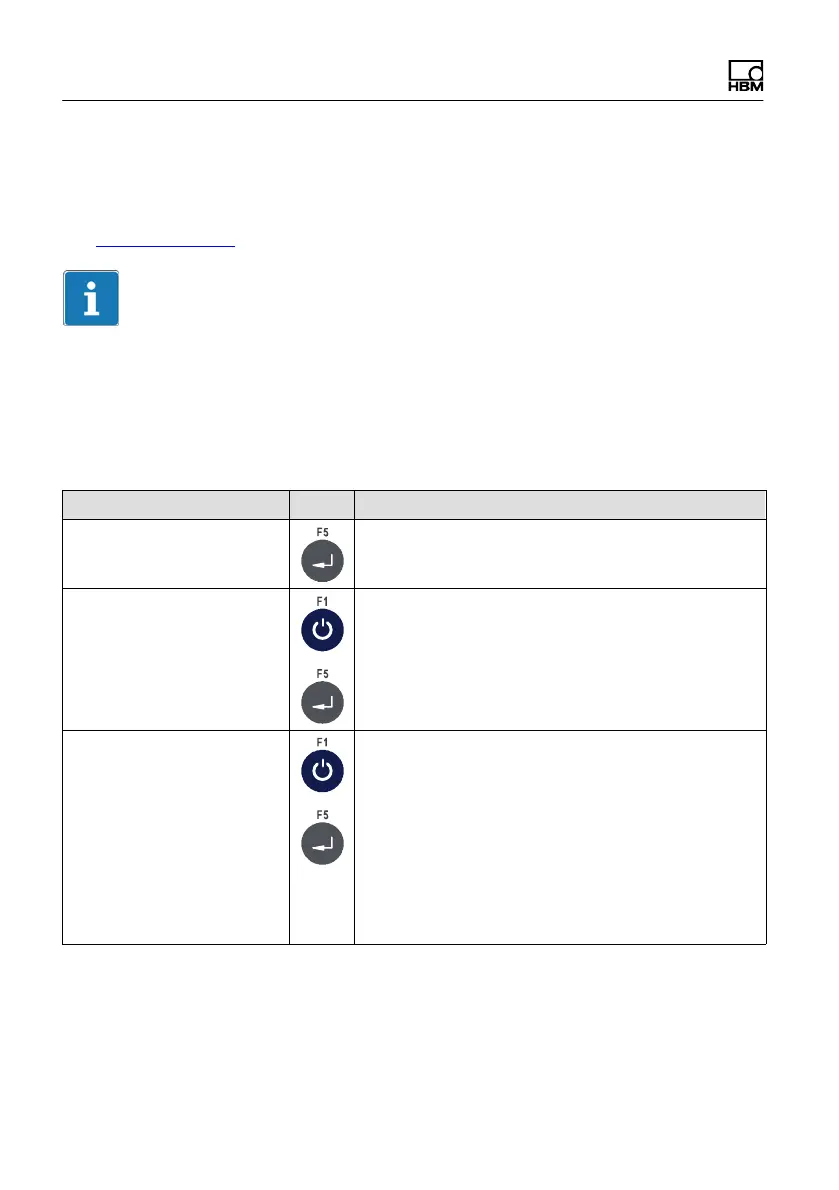

Menu Key Function/Secondary selection
Limit Switches
Source (LS1…LS4) Toggle and select the desired source
Off Limit switch function deactivated
Net Net signal
Gross Gross signal
Mode (LS1…LS4) Toggle and select the desired mode
Above Level For explanatory notes
see 8.2.1
Below Level For explanatory notes
see 8.2.2
Outside Band For explanatory notes
see 8.2.3
Inside Band For explanatory notes
see 8.2.4
