Installation
WTX110 A4774-1.0 HBM: public 39
4.10 Connection of digital inputs/outputs IO (2xDO, 2xDI)
If a WTX110 is ordered with option "IO," the interface is completely pre-wired.
K-WTX110-*-***-**-***-IO-***-**
The IO option is always used in slot PIM1 and labeled with PIM500.
Notice
Load carrying capacity of outputs max. 500 mA at 12…24 VDC.
Notice
Current consumption of inputs max. 7 mA at 12…24 VDC.

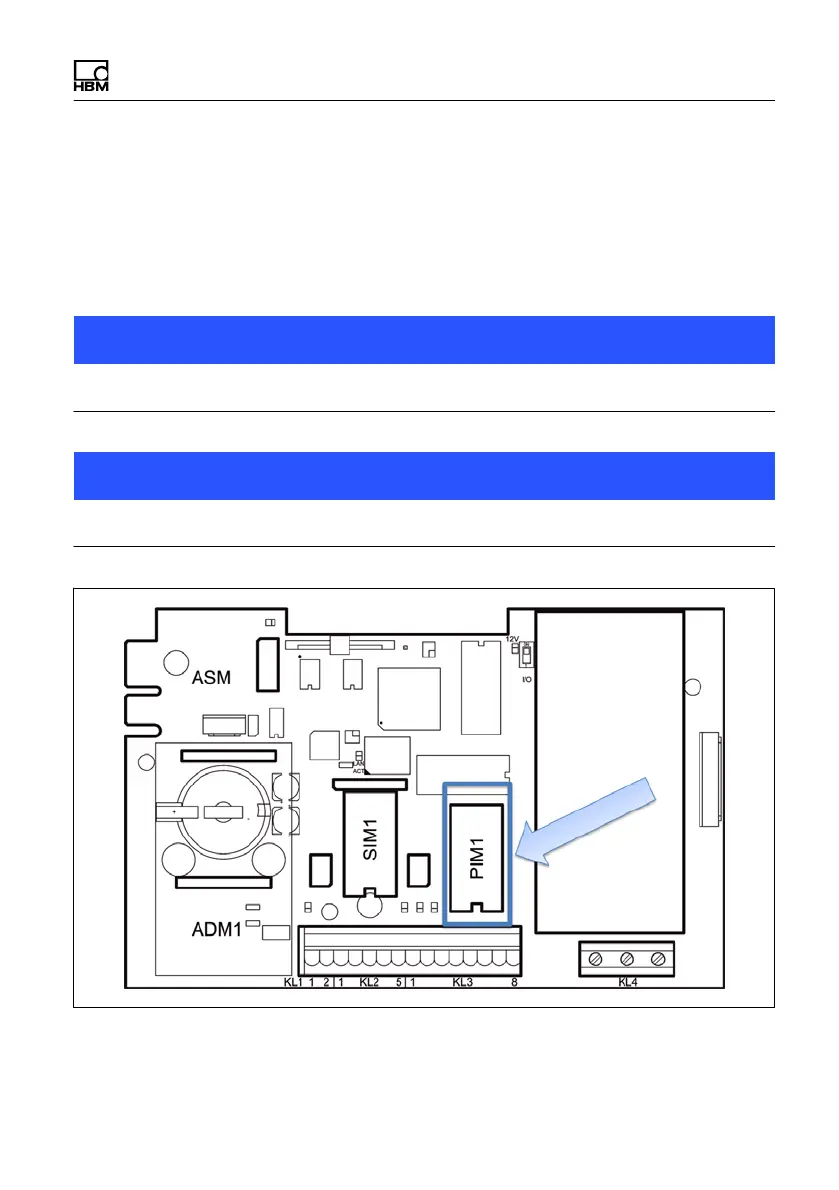

Fig. 4.4 Positioning of the IO module (PIM500) on the WTX110 motherboard
