Installation
WTX110 A4774-1.0 HBM: public 41
4.11 Connection of digital inputs/outputs DIO (2xDO, 1xDI)
If a WTX110 is ordered with option "DIO," the interface is completely pre-wired.
K-WTX110-*-***-**-DIO-**-***-**
The DIO option is always used in slot SIM1 and labeled with SIO. It has one
optically isolated input and two optically isolated outputs.
Notice
Load carrying capacity of outputs max. 100 mA at 12–24 VDC.
Notice
Current consumption of inputs max. 7 mA at 12–24 VDC.

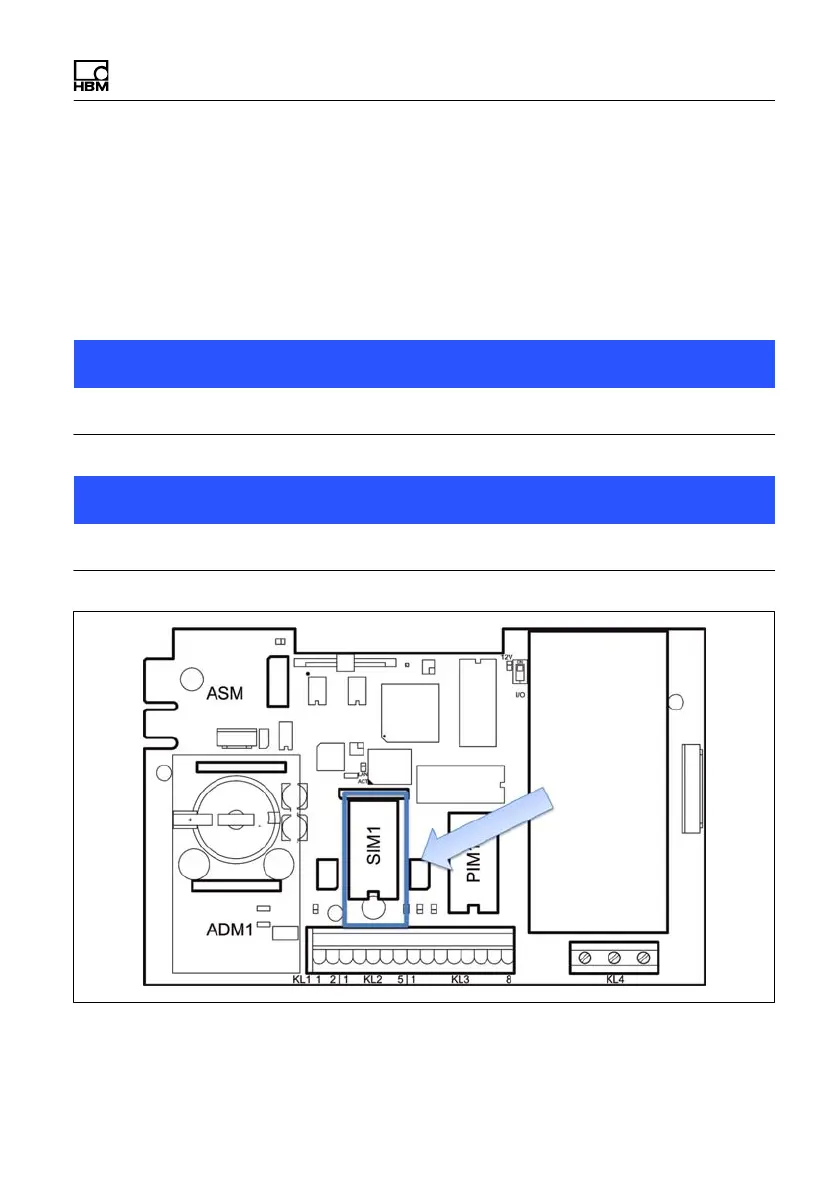

Fig. 4.6 Positioning of the DIO module (SIO) on the WTX110 motherboard
