Installation
24 A4774-1.0 HBM: public WTX110

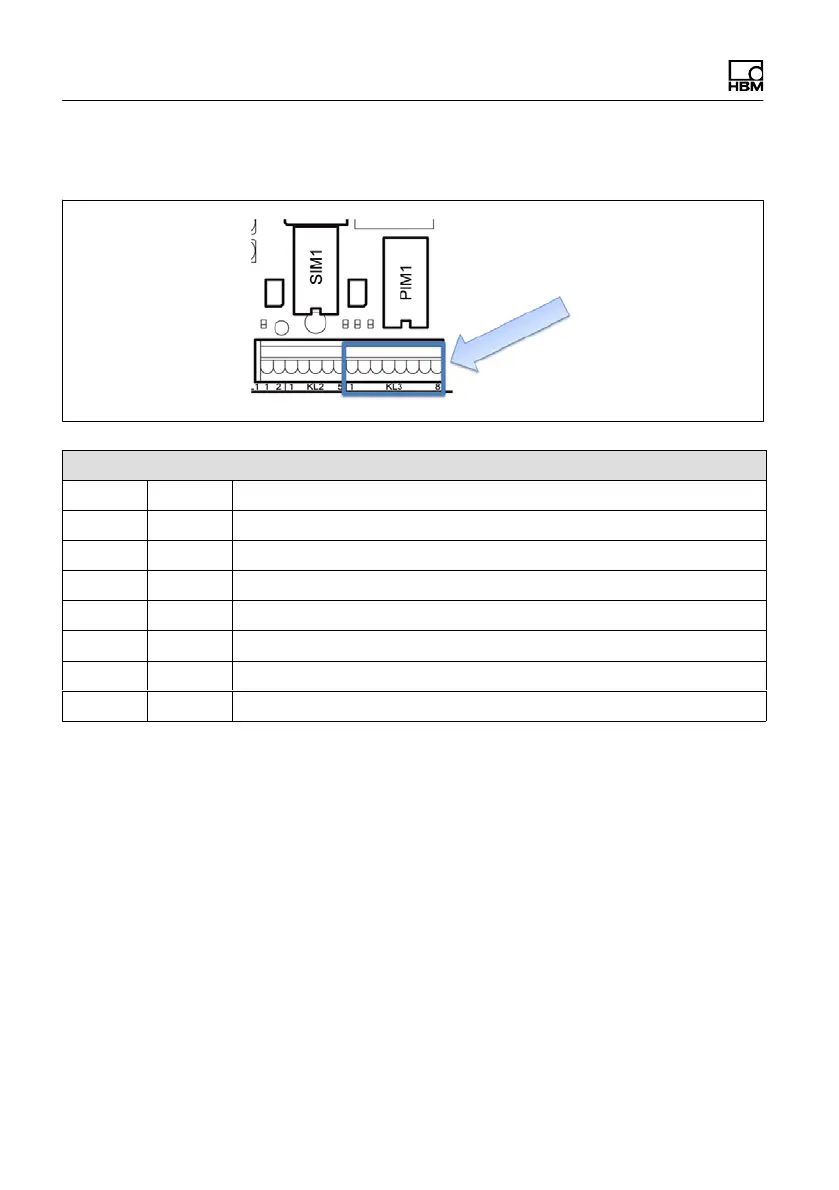

4.1.4 Analog output
KL3: Analog output DAU15 in slot PIM1
1 -
2 -
3 I + Current output 0/4–20 mA (+)
4 I – Current output 0/4–20 mA (–)
5 -
6 U + Voltage output 0/2–10 V (+)
7 U – Voltage output 0/2–10 V (–)
8 -
4.2 Setup and installation
The operating temperature can be between –10 °C and +40 °C with 95 %
relative humidity (non-condensing). Avoid direct sunlight
For wall-mounting the device is first mounted on the wall and then the cables
are connected with the housing cover open.
There are six fastening clamps on the device for control cabinet mounting.
Before commissioning the housing must always be closed and screwed shut
with the hexagonal nuts included with delivery. The hexagonal nuts must be
tightened crosswise to a torque of 1.1 Nm.
