HBM WTX110 - Serial Interfaces

Installation
WTX110 A4774-1.0 HBM: public 21

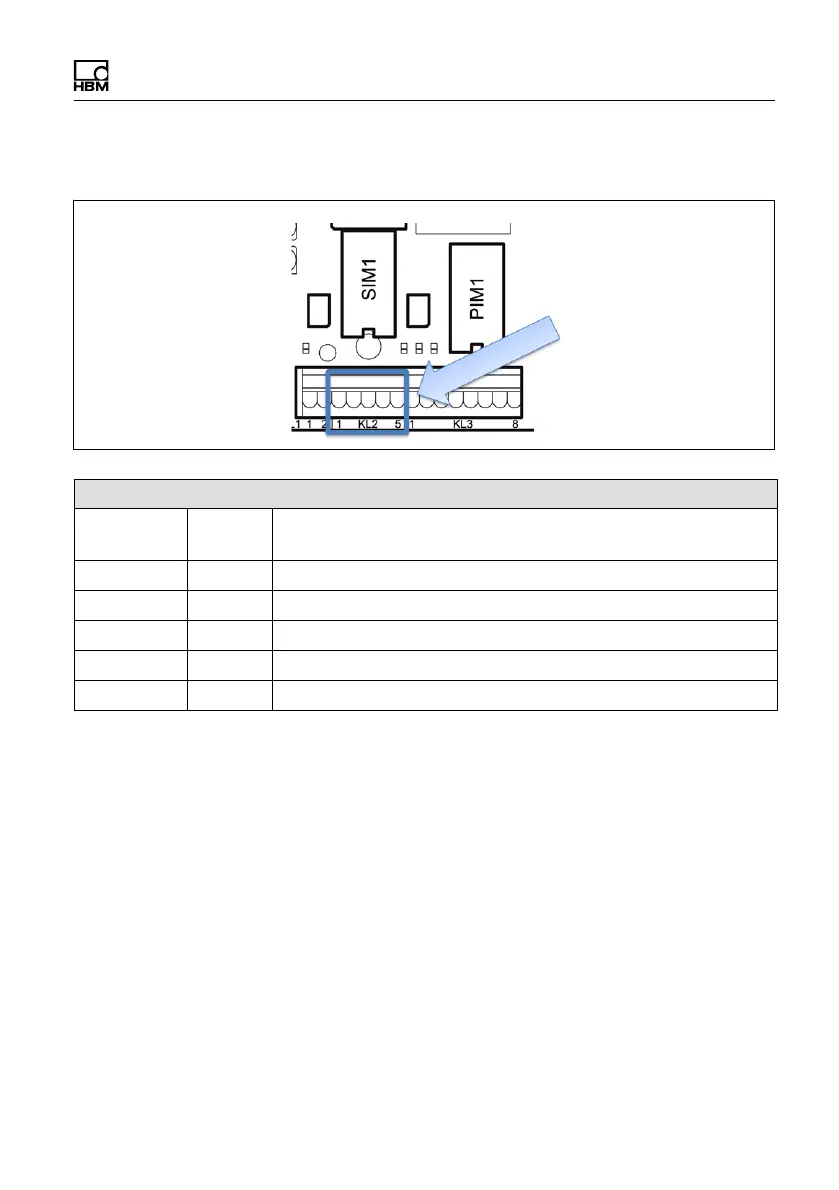

4.1.2 Serial interfaces
KL2: Serial interfaces RS485, RS232 in slot SIM1
Connectio
n
RS232 RS485 4 wires
1 TxD Tx A (Tx+)
2 RTS Tx B (Tx‒)
3 RxD Rx A (Rx+)
4 CTS Rx B (Rx‒)
5 Gnd -
