Installation
32 A4774-1.0 HBM: public WTX110
The position of the W1 jumper can be locked by a
weights and measures officer with thread and lead or a
seal:
A description of calibration can be found in section 11
"Calibration," page 159!
4.6 Serial interface connection
The WTX110 generally ships with the variant configuration with pre-wired
options.
RS232 or RS485 (4-wire) can be selected as serial options. The serial interface
module is always plugged into slot SIM1.

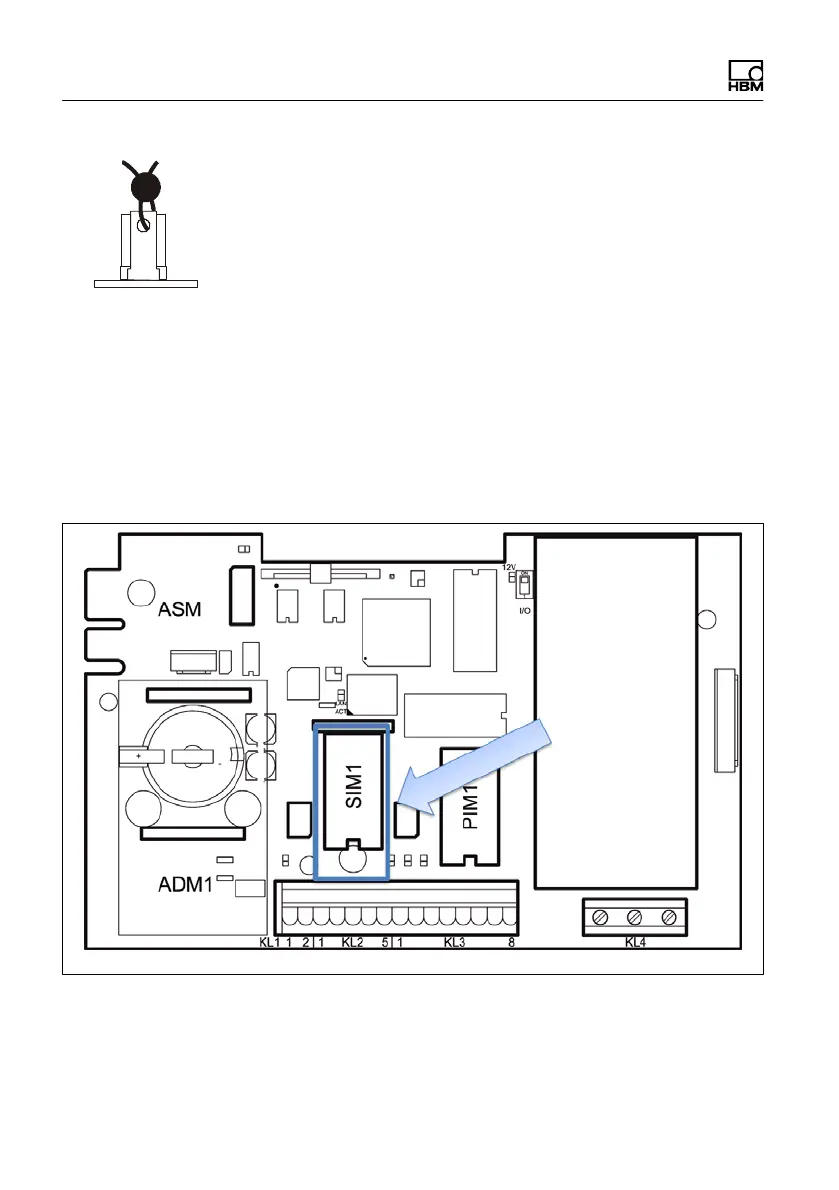

Fig. 4.3 Positioning the serial module on the WTX110 motherboard (CPU1)
