Installation
WTX110 A4774-1.0 HBM: public 29

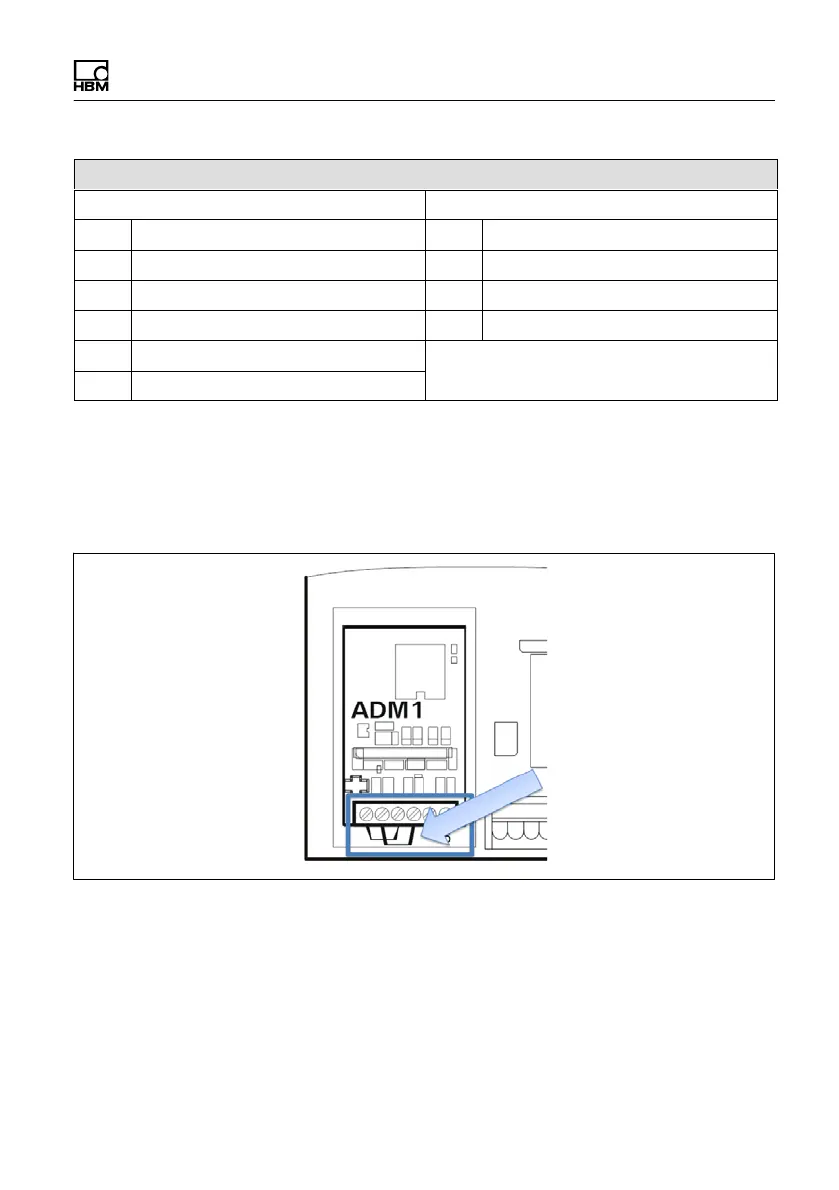

ADM for analog sensors in slot ADM1
6 wires 4 wires
1 + Excitation 1 / 3 + Excitation
2 – Excitation 2 / 4 – Excitation
3 + Sense 5 + Signal
4 – Sense 6 – Signal
5 + Signal
6 – Signal
Connection of an analog SG sensor in 4-wire configuration to the ADM
module
To operate sensors without sense wires (4-wire mode), jumpers must be fitted
on terminal TE1 between pins 1 and 3 and 2 and 4.
4.5.1 Connection cable for analog load cell
When laying scale connecting cables (analog load receptors) please note:
S Use only suitable scale connecting cables:
