Installation
WTX110 A4774-1.0 HBM: public 47

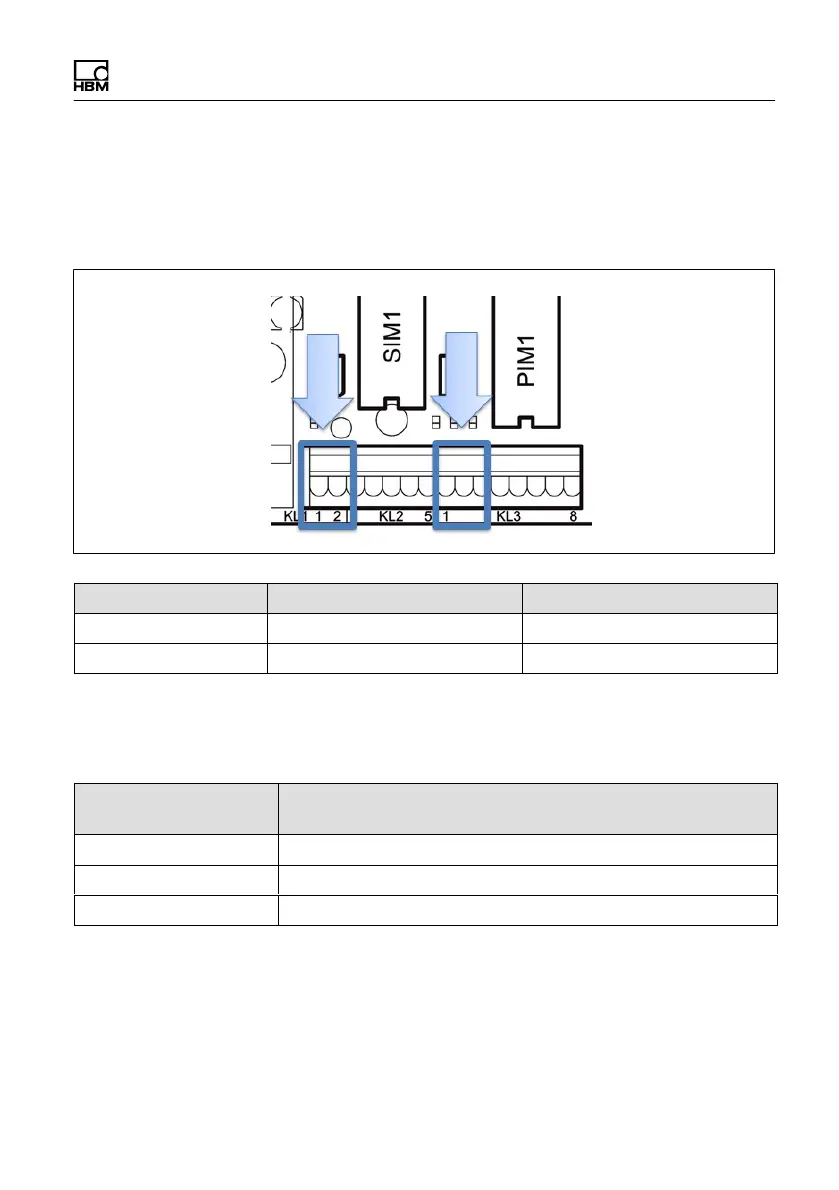

4.13 Power supply for external peripheral devices
12 V is provided on terminals KL1 (terminals 1, 2) and KL3 (terminal 1, 2) as
the power supply for peripheral devices (digital load cells, etc.).
Terminal 1 2
KL 1 0 V (=+12 V)
KL 3 0 V +12 V
Maximum current consumption
ADM installed in slot ADM1 (with up to 8 analog load cells, 350 ohms each):
Current consumption
of USB device
Current consumption 12 V for peripheral devices on KL1
and KL3 (total)
0…100 mA 300 mA max.
100…300 mA 200 mA max.
300…500 mA 100 mA max.
