4.1.3 Digital inputs/outputs

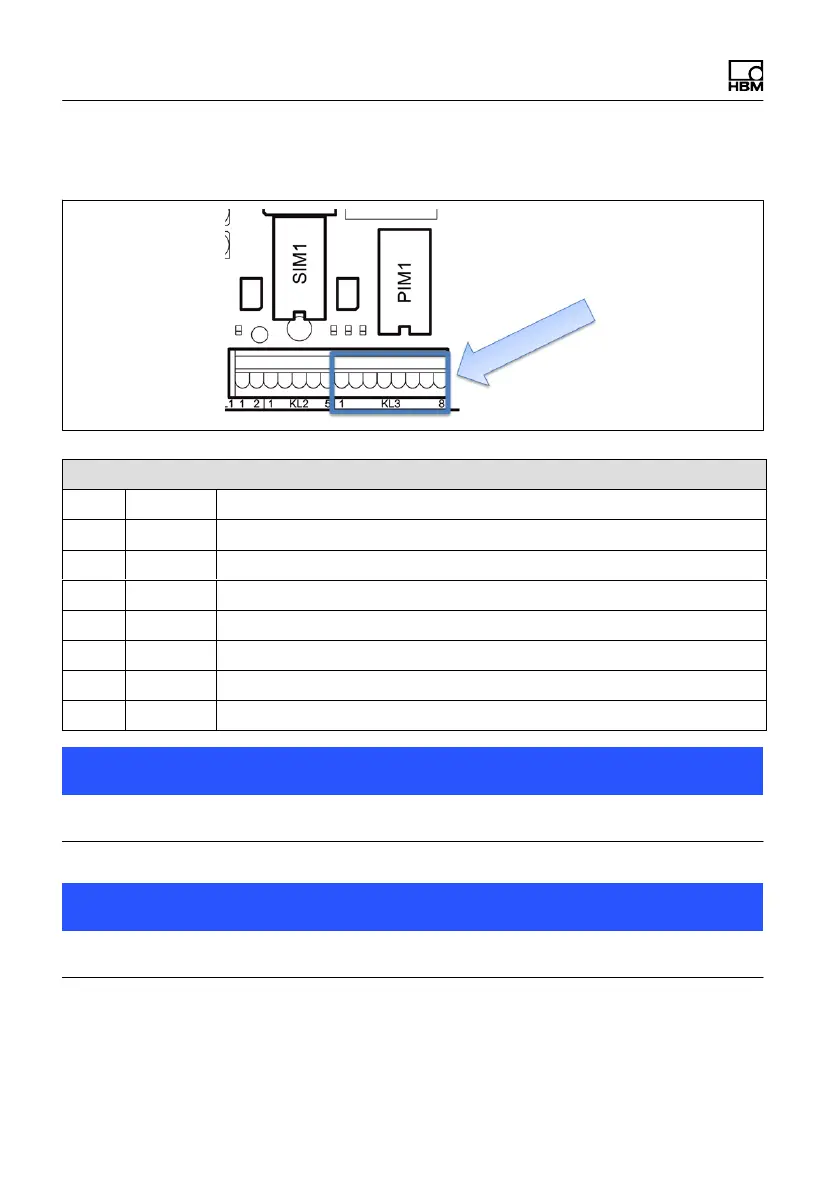

KL3: Digital inputs/outputs PIM500 in slot PIM1
1 (=0 V) Power supply for external peripheral devices (digital load cells, etc.)
2 (=+12 V) Power supply for external peripheral devices (digital load cells, etc.)
3 IN 0
4 IN 1
5 IN ‒ PIM500: for IN 0, IN 1 and OUT 0, OUT 1
6 OUT 0
7 OUT 1
8 OUT + for OUT 0, OUT 1
Notice
Load carrying capacity of outputs max. 500 mA at 12…24 VDC.
Notice
Current consumption of inputs max. 7 mA at 12…24 VDC.
