Installation
40 A4774-1.0 HBM: public WTX110

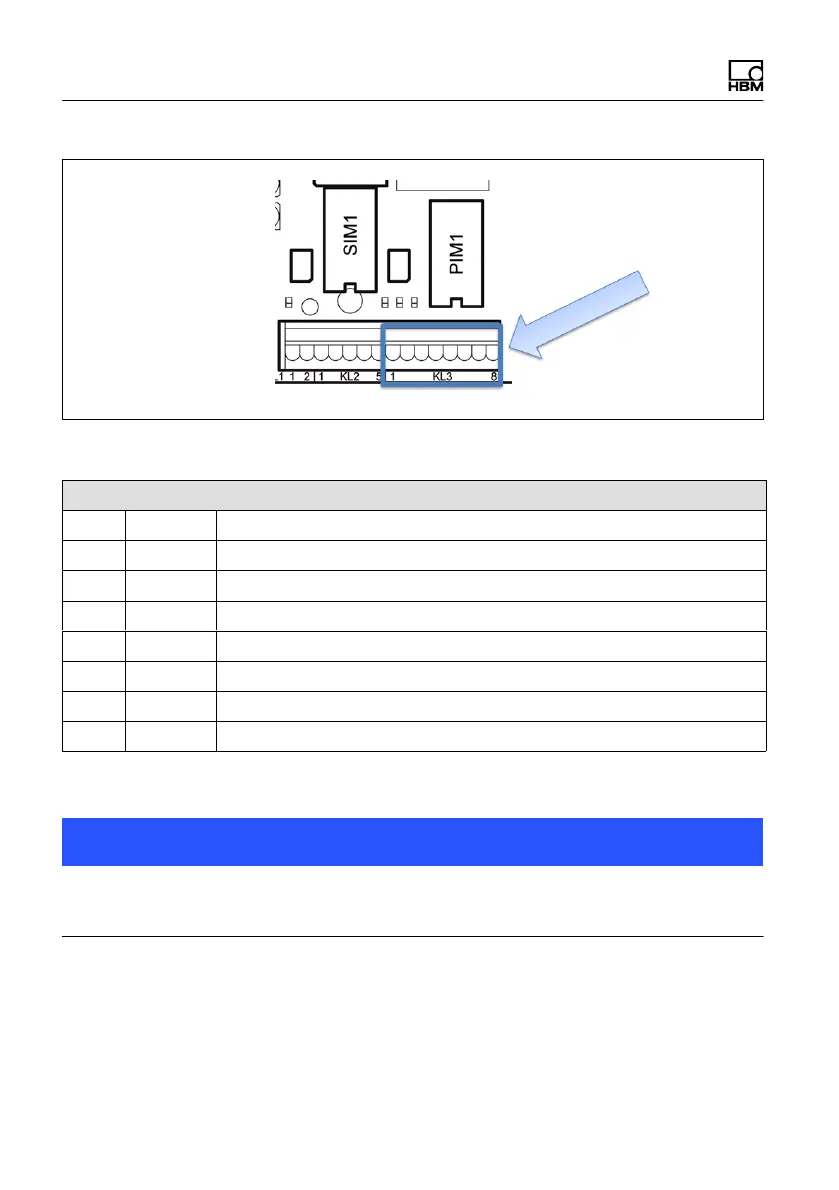

Fig. 4.5 Connection of digital inputs/outputs to KL3
KL3: Digital inputs/outputs PIM500 in slot PIM1
1 (=0 V) Power supply for external peripheral devices (digital load cells, etc.)
2 (=+12 V) Power supply for external peripheral devices (digital load cells, etc.)
3 IN 0
4 IN 1
5 IN ‒ PIM500: for IN 0, IN 1 and OUT 0, OUT 1
6 OUT 0
7 OUT 1
8 OUT + for OUT 0, OUT 1
Tab. 4.1 KL3: Digital inputs/outputs OIM500 in slot PIM1
Notice
Maximum current consumption on KL3 (terminal 1 and 2) according to section
4.13 "Power supply for external peripheral devices".
