Technical data
21
GBDEFRESPTITNLDKNESEFIPLCZHUSIROTR
12.1 Device dimensions
SX
K
SY
IT
IC
1
6
2
4
5

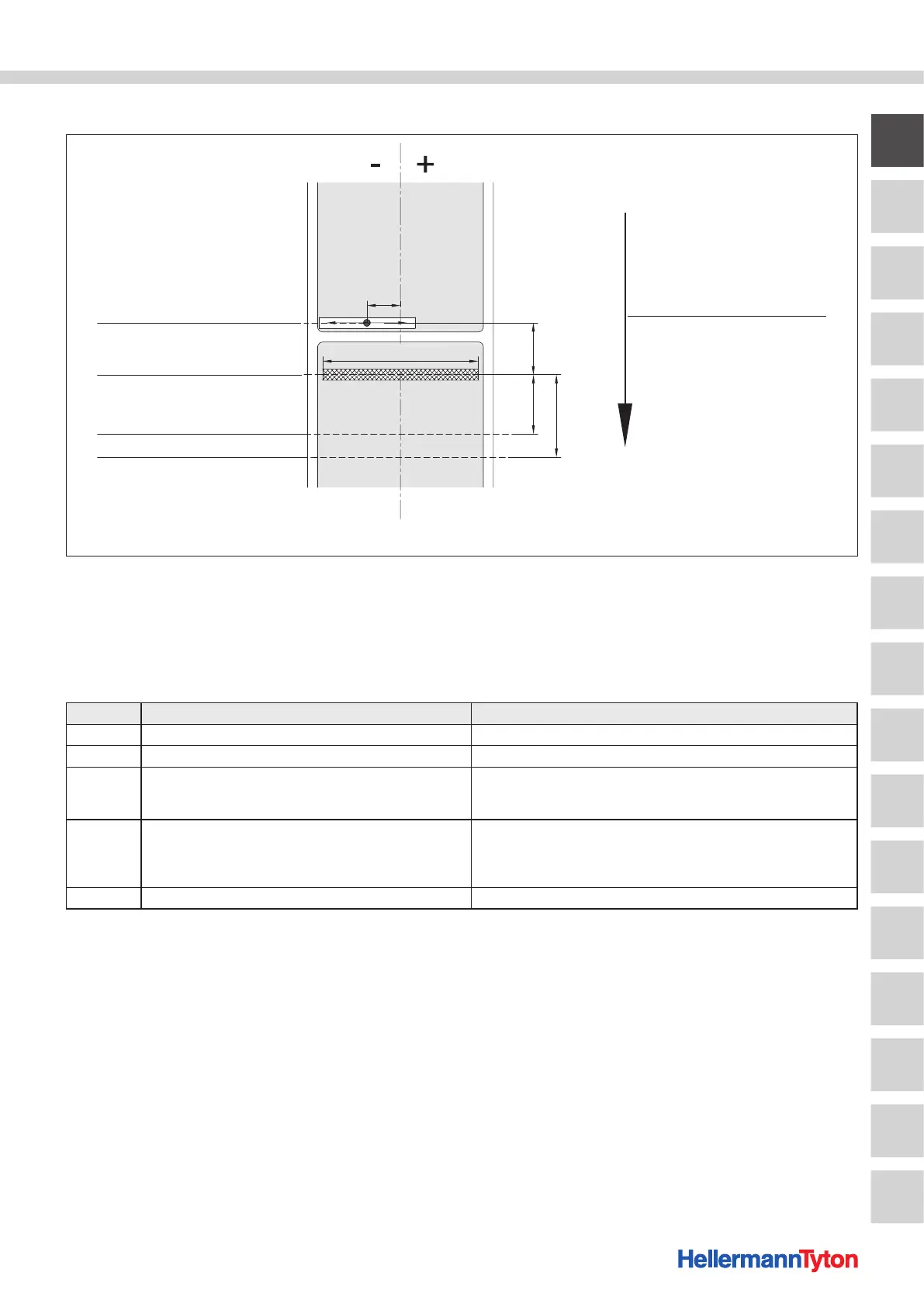

Device dimensions.
1 Backlight sensor and reflective sensor
2 Printhead
3 Tear-off plate
4 Cutting plate
5 Feed direction
Dimension Name Dimension in mm
IT Distance print line - tear-off plate 13.7
IC Distance print line - cutting plate blade 20.3
K
Print width
203 dpi
300 dpi
108.0
105.7
SX
Distance from backlight and reflective sensor to centre of the
paper feed
i.e. permitted distance from the reflection markings and
perforations to the centre of the material
-58 - 0
SY Distance from backlight and reflective sensor to the print line 44.9
