HellermannTyton TT431 - Dimensions for Reflection Marks

Operating Instructions • Thermal transfer printer TT431 • 03-2019 • 556-00400
Technical data
23
GBDEFRESPTITNLDKNESEFIPLCZHUSIROTR

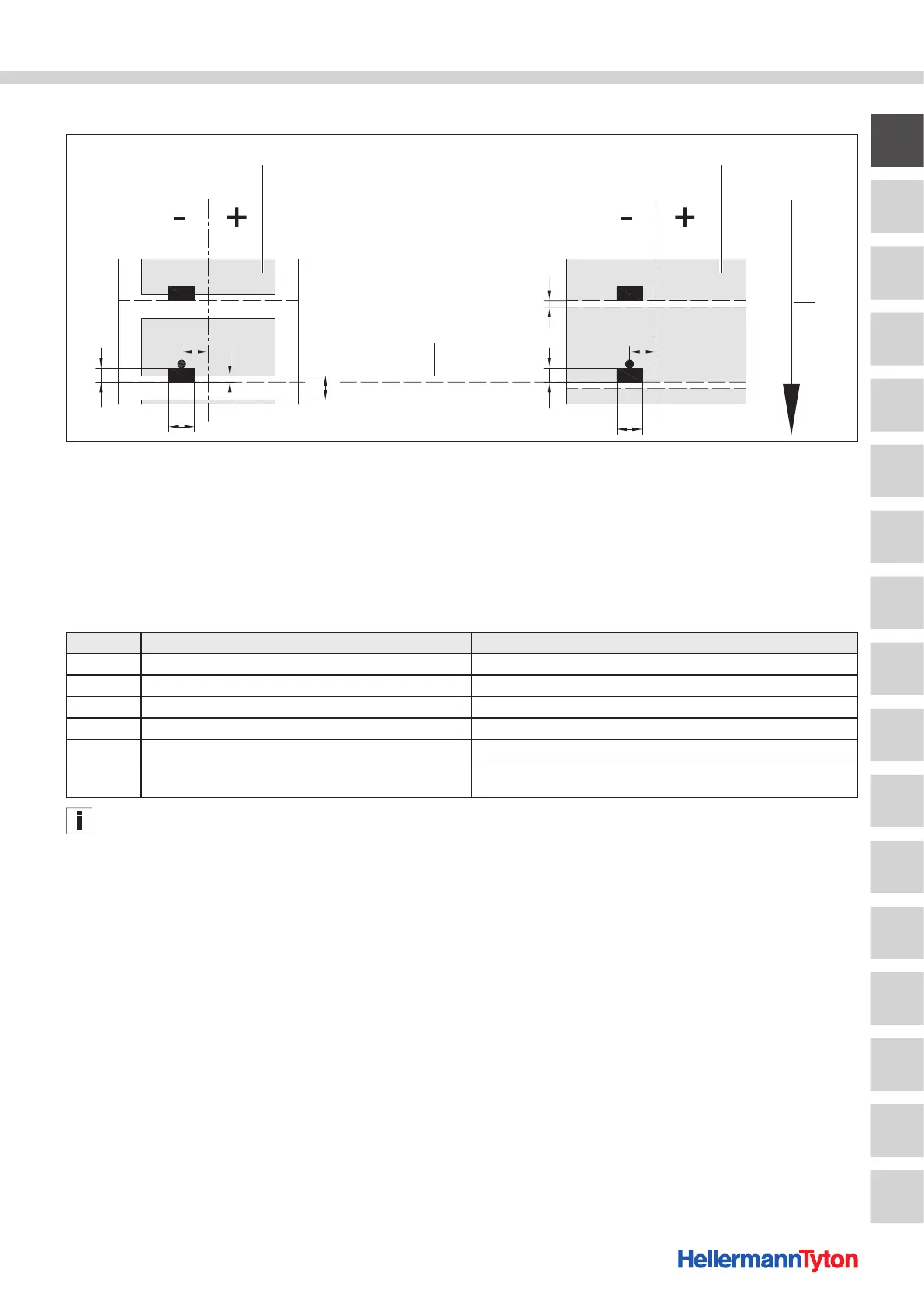

12.3 Dimensions for reflection marks
MM
L
XM
AZ
L
Z
A
XM
XM
1 3
4
2
Dimensions for reflection marks.
1 Materials with reflection marks
2 Virtual material start / reflection mark
3 Continuous material with reflection marks
4 Feed direction
Reflection marks must be on the rear side of the material. Upon request, a light barrier for reflection marks on the front
side can be supplied.
The data is valid for black marks. Colour marks may not be detected. This must be tested in advance.
Dimension Name Dimension in mm
A Material distance > 2
AZ Print zone distance > 2
L Width of the reflection mark > 5
M Height of the reflection mark 3 - 10
XM Distance mark - centre of paper feed -58 - ±0
Z Distance virtual material start - actual material start
0 to A /
Recommended: 0
The detection of reflection markings by the label sensor for
translucent materials is not only possible with the reflection
method but also with the backlight method.
