F 8627X (0650)

365

If necessary, delete the User Program of the Central Module F 865x

If a user program with a wrong resource name (e.g. no or wrong Res ID) exists in the F 865x,

no ELOP II TCP connection can be established.

Delete the user program with the wrong resource name, so that the F 8627X can be determine

the IP address from the F 865x ID settings (DIP switches 1-7).

Perform the following Settings in ELOP II

• Create a resource, having a name from which the required IP address can be deter-

mined (see chapter 5.1).

• In the dialog "cabinet layout" add the F 8627X module icons for the documentation

of the cabinet allocation

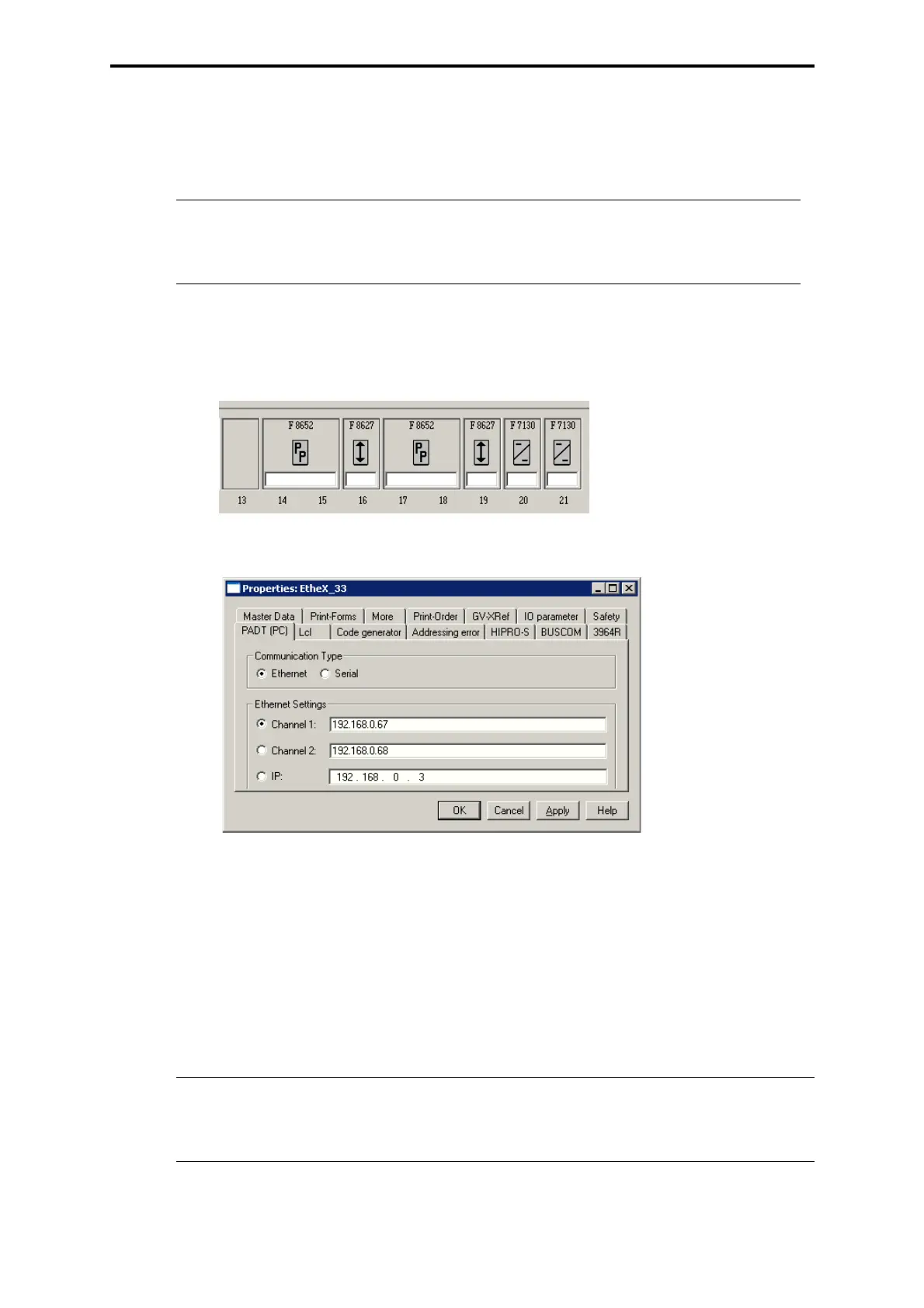

Figure 3: Cabinet Layout

• Open the context menu of the resource and select Properties.

Figure 4: ELOP II dialog "Properties"

• Open the tab PADT (PC) and select the communication type Ethernet.

• Select one of the IP addresses

channel1 or channel2 which are determined by

ELOP II. By this the F 8627X connected to the PADT is selected.

• Click "OK" to close the "Properties" dialog with "OK".

Load the User Program into the H41q/H51q

• Connect the selected F 8627X with the PADT corresponding to a connection from

chapter 5.2.5.

• Open the context menu of the resource and select

Control Panel.

If a connection has been established, "OK" appears in the field "Communication".

Note Please refer to the manual "Functions of the operating system BS41q/

H51q (HI 800 105)" for further information about "Erasing the user pro-

gram".

Note In case of a redundant H41q/H51q, make sure that the HSR cable

(BV 7053) is plugged; otherwise there is no access available to the

redundant central module F 865x.
