8.2 Bus connection and termination
The PROFIBUS-DP bus termination consists of a resistance combination ensuring a defined
zero potential on the bus.

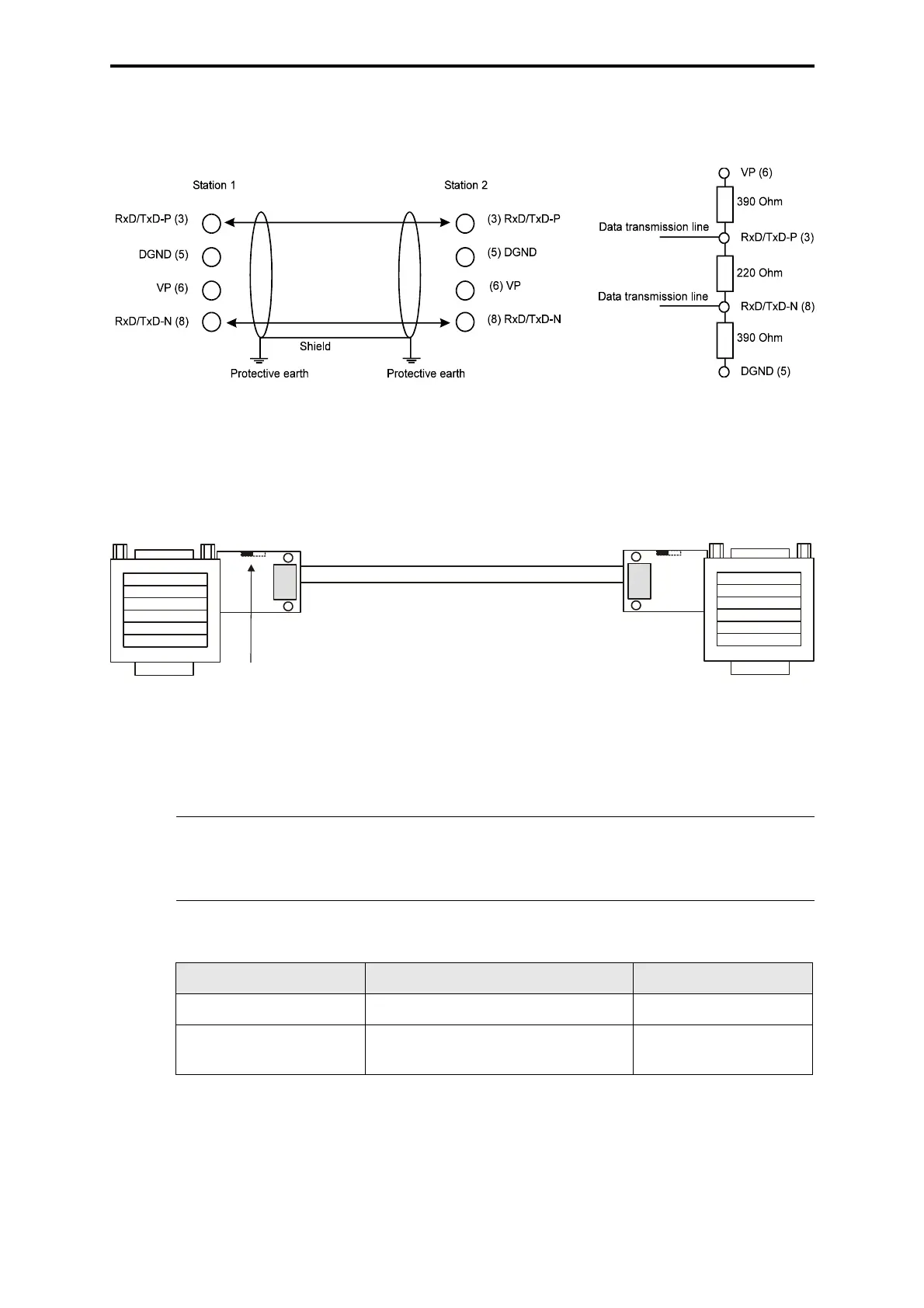

Figure 8: Bus connection and termination, pin assignment of the field bus interface
8.3 PROFIBUS-DP bus cable
In the IEC 61158, two bus cable types are specified. Cable type "A" may be used for all transfer
rates up to 12 Mbps. Cable type "B" is outdated and should not be used any longer.
Figure 9: PROFIBUS-DP bus cable, Type A, with bus connector Plug
The following table specifies the PROFIBUS connectors used within HIMA.
Table 12: PROFIBUS connectors manufactured by PHOENIX CONTACT
Note When using the F 8628X Ethernet interface (e.g. for ELOP II TCP), the
straight PROFIBUS connector should be utilized. An angled connector
might have to be removed to reach the F 8628X Ethernet interface.
PROFIBUS Plug PHOENIX CONTACT Description HIMA Number
Axial SUBCON-PLUS-PROFIB/AX/SC 52 000 9397
Angled plug, with additio-
nal PG connection
SUBCON-PLUS-PROFIB/PG/SC2 52 000 9394
Profibus cable type A
By selection of a switch the bus termination resistors
can be switched on at each end
X2
MIN-D plug,
9-pole
X1
MIN-D plug,
9-pole
