3.9 Other Functions
106
You can hold the display of all measured values by pressing (placing the instrument in the display hold
state).
Activating display hold
Canceling the display hold state
The display hold will be unavailable in the following condition:
• During the AVG lamp is blinking
The display hold will become available when the AVG lamp that has been blinking lights up, which means
that an average data is determined. Measurement values that are not supposed to be averaged such as a
peak value will not be subject to the display hold until an average data is determined.
• Immediately after the setting such as the range is changed (while [- - - - -] is shown on the display)
The display hold will become available when a measurement value appears on the display on which
[- - - - -] has been shown.
3.9 Other Functions

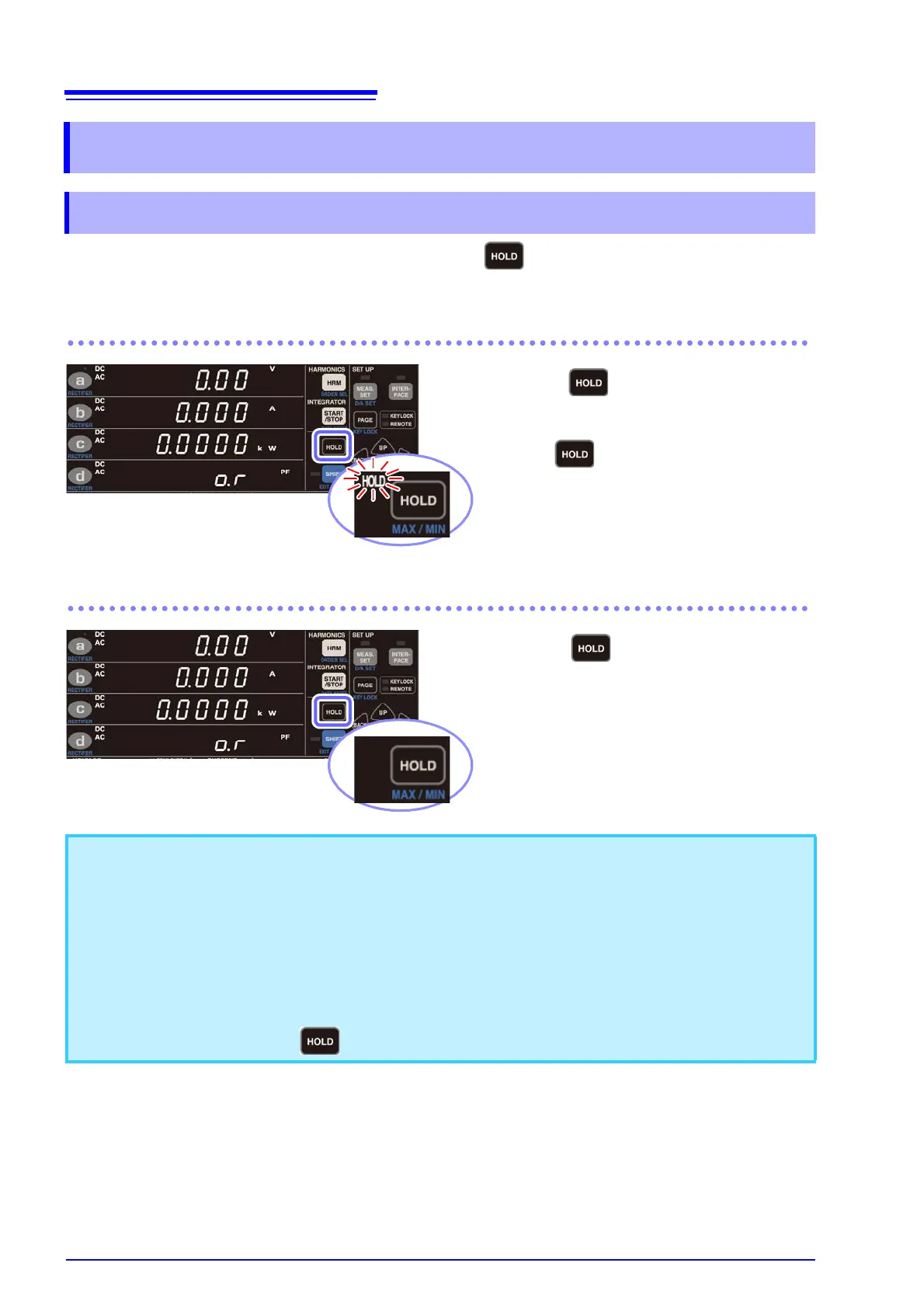

3.9.1 Fixing Display Values (Display Hold)
Press .
The display of measured values will be fixed
when is pressed, and the
HOLD lamp
will light up.
Press while the instrument is
in the display hold state.
The instrument will return to the normal display
(Measurement screen), and the
HOLD lamp will
turn off.
• The following operations are not available when in the display hold state:
• Range switching
The instrument will display [Err.16] if any range key is pressed. (p.166)
Similarly, the range will not change during auto-range operation. The range will be fixed to the range
in effect when the instrument was placed in the hold state.
(The range can be switched while auto-range integration is in the stopped state.)
• Setting changes (integration time, number of averaging iterations, VT ratio, CT ratio, etc.)
The setting parameter will light up on the Settings screen, and you will not be able to change it.
• The flashing cursor cannot be moved to parameters that cannot be changed while in the hold state.
• To change a setting, press the to cancel the display hold state (so that the HOLD lamp turns off).
