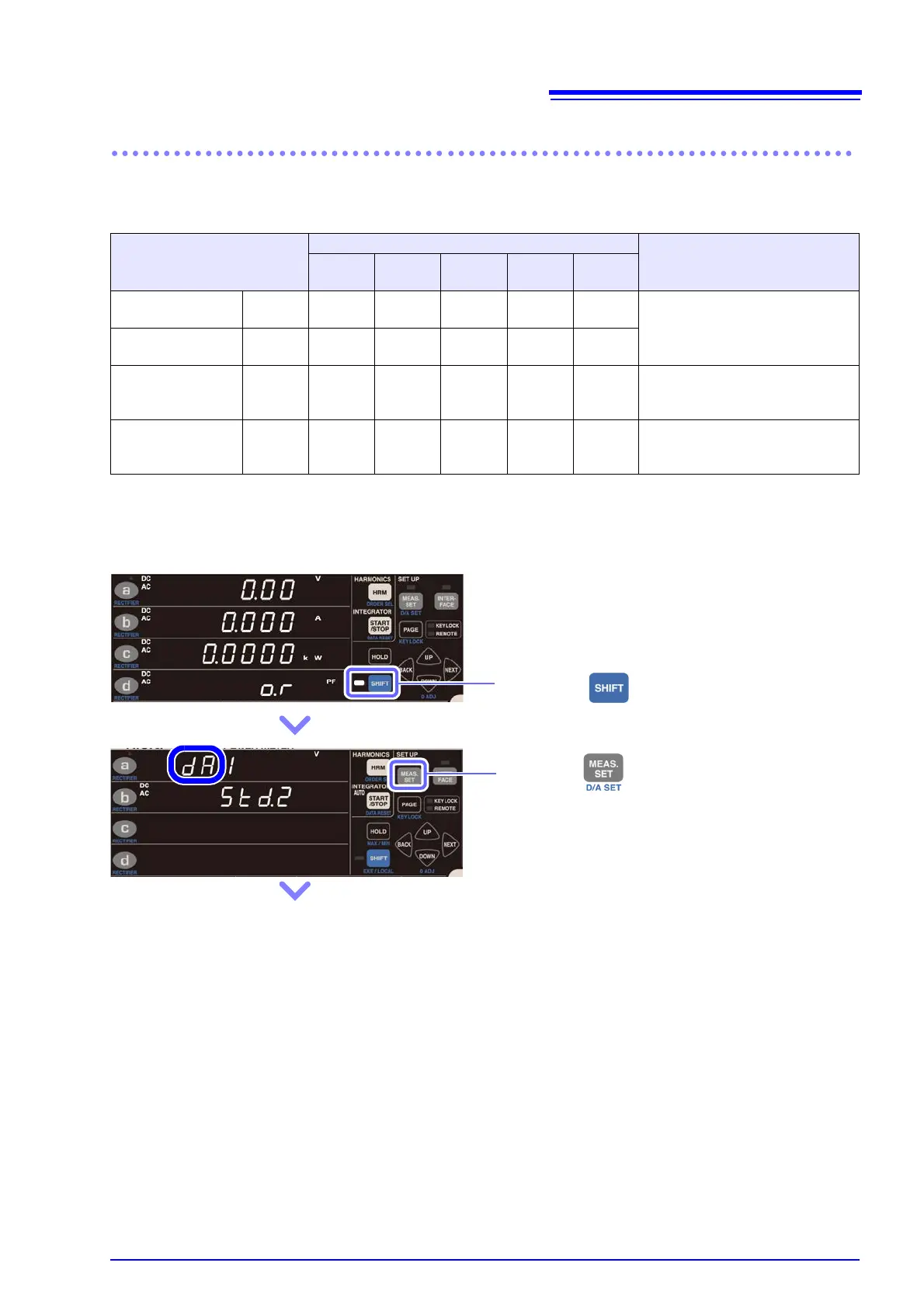

Setting D/A output when enabling auto-range integration
During auto-range integration mode operation, you can set the current range (200 mA to 20 A, b, totAL [total])
you wish to output for the following measurement parameters.
In the b and totAL ranges, 100% of current is equivalent to 20 A, and 100% of power is equivalent to 100% of
the voltage range × 20 A.
: Current range can be set Lo.: 0 V output
Measurement items
Rectifier
Rated output voltage
AC+DC
AC+DC
+Umn
DC AC FND
Time average
current
T.AV A Lo.* Lo.*  Lo. Lo.
Relative to ±100% of the range
STD.2: ±2 V DC
STD.5: ±5 V DC
Time average
active power
T.AV W Lo. Lo.
Current integration
Ah+
Ah-
Ah
Lo. Lo.  Lo. Lo.
5 V when set value is reached
Example: If set to 5 kAh,
5 V DC at 5 kAh
Active power
integration
Wh+
Wh-
Wh
Lo. Lo.
5 V when set value is reached
Example: If set to 5 kWh,
5 V DC at 5 kWh
1 Press to place the instrument in
the shift state.
First, enable auto-range integration. (p.67)
2 Press to switch to the D/A output
parameter settings screen. ([dA] will be
displayed in display area
a.)
