3.7 Using D/A Output
92

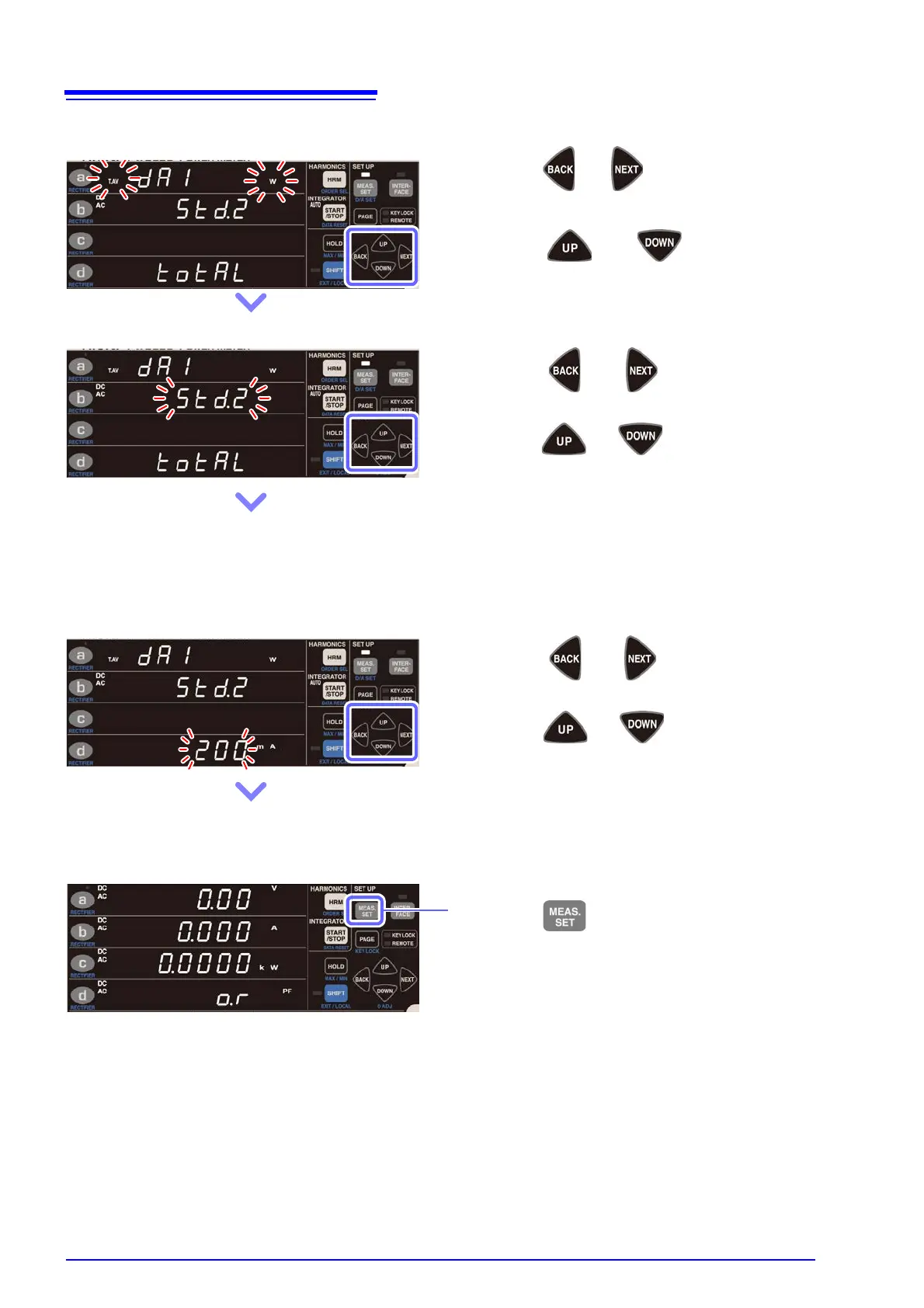

For time average (T.AV A or T.AV W)
3 Press or until the parameter
flashes.
4 Press or to select the
parameter you wish to output.
If you select time-average, the current range will be
shown in display area d.
5 Press or until the output
method flashes.
6 Press or to select the out-
put method.
The available output method vary with the output pa-
rameters and rectifier.
Example: For T.AV W and AC+DC
Default setting: STD.2
Settings:
Std.2 → Std.5 → Std.2 ⋅⋅⋅
7 Press or until the current
range flashes.
8 Press or to select the cur-
rent range you wish to output.
Default setting: totAL
Settings:
totAL → 200 mA → 500 mA → 1 A →
2 A → 5 A → 10 A → 20 A → b →
totAL ⋅⋅⋅
9 Press to exit the settings.
The instrument will return to the normal display
(Measurement screen).
