The instrument allows you to set an upper limit value for the harmonic analysis order. One example of how
this setting can be used is to set a limit on the uppermost order during total harmonic distortion (THD) mea-
surement.
3.4.3 Setting the Harmonic Analysis Order Upper
Limit

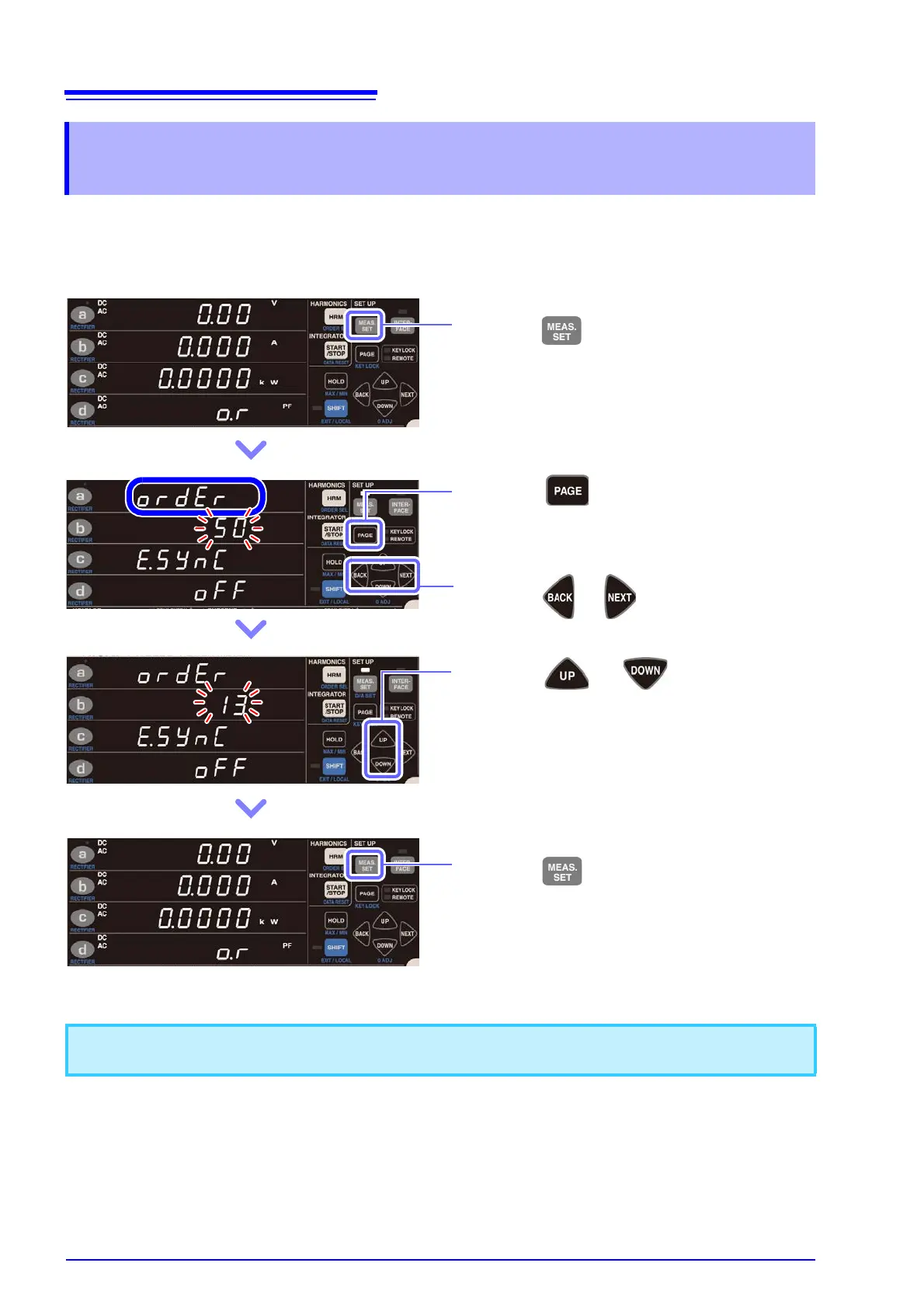

2 Press to switch to the analysis
order upper limit settings screen.
([
ordEr] will be displayed in display
area
a.)
3 Press or until the display area
b flashes.
4 Press or to set the upper
limit value for analysis.
Default setting: 50
Setting range:
50 → 2 → 3 ⋅⋅⋅ → 49 → 50 ⋅⋅⋅
When the setting is changed to a value other than the
default setting of 50, the HRM LIMIT lamp will light
up.
The harmonic level and content percentage displays will include data up to the 50th order, even if the upper
limit is set to a value other than 50.
5 Press to exit the settings.
The instrument will return to the normal display (Mea-
surement screen).
