Accurate measurement cannot be performed when using input of a low frequency of less than 10 Hz (with a
repeating period of greater than 0.1 sec.) because each input cycle will exceed the instrument’s calculation
processing interval (causing a timeout). The SYNC lamp (ERROR) will light up at this time. In this case, set
the instrument’s timeout setting to 1 sec. (for an input frequency of less than 10 Hz) or 10 sec. (for an input
frequency of less than 1 Hz).
3.2.6 Setting the Timeout
Setting Description TIME OUT lamp
0.1 sec.
(Default setting)
Use this setting when the frequency of the input set as the synchronization source
is 10 Hz or higher.
off
1 sec.
Use this setting when the frequency of the input set as the synchronization source
is less than 10 Hz.
on
10 sec.
Use this setting when the frequency of the input set as the synchronization source
is less than 1 Hz.
on
Accurate measurement cannot be performed if the SYNC lamp
(ERROR) is lit up.
Setting the timeout to 1 sec. to 10 sec. will cause the lamp to
light up. The default value is 0.1 sec.

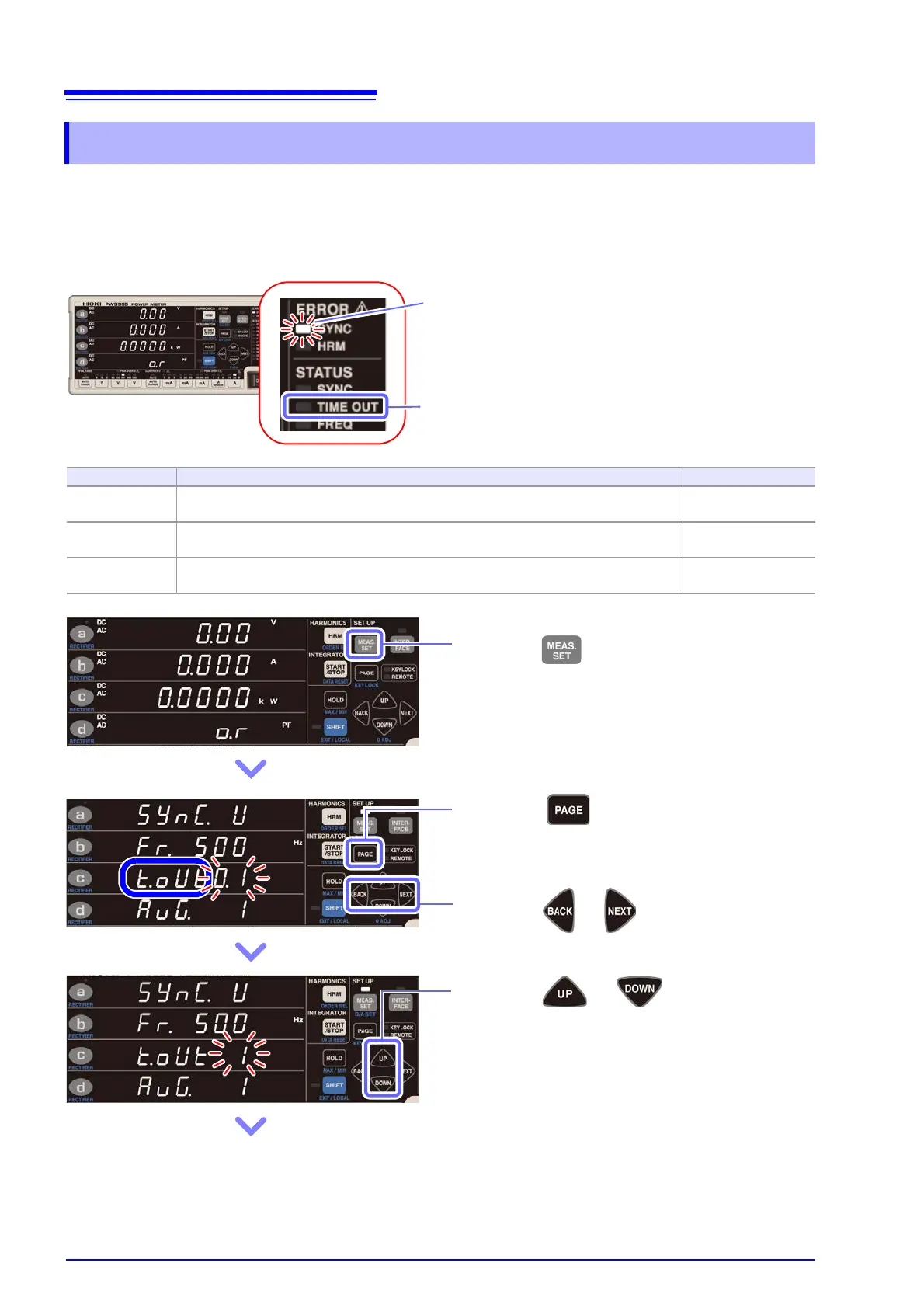

2 Press to switch to the timeout
settings screen. ([t.oUt] will be dis-
played in display area
c.)
3 Press or until the display area
c flashes.
4 Press or to set the timeout
(0.1 sec., 1 sec., or 10 sec.).
Default setting: 0.1 sec.
Settings: 0.1 → 1 → 10 → 0.1 ⋅⋅⋅
