1.3 Names and Functions of Parts
• The shift state is automatically canceled after Approx. 10 seconds. When the RECTIFIER key is pressed,
the shift state is canceled after Approx. 2 seconds.
• If key operation causes a message or indication that is not described in this manual to be displayed,
immediately cycle the instrument’s power.
POWER switch (p.34)
Turns the instrument on and off.
Warning lamps (p.17)
CURRENT
●
PEAK OVER I
AUTO and B lamps (p.16)
AUTO
B
Current range (p.43)
Function setting status lamps (p.16)
Light up to indicate activated functions.
Warning lamp (p.17)
PEAK OVER U
AUTO lamp (p.16)
AUTO
Voltage range (p.43)

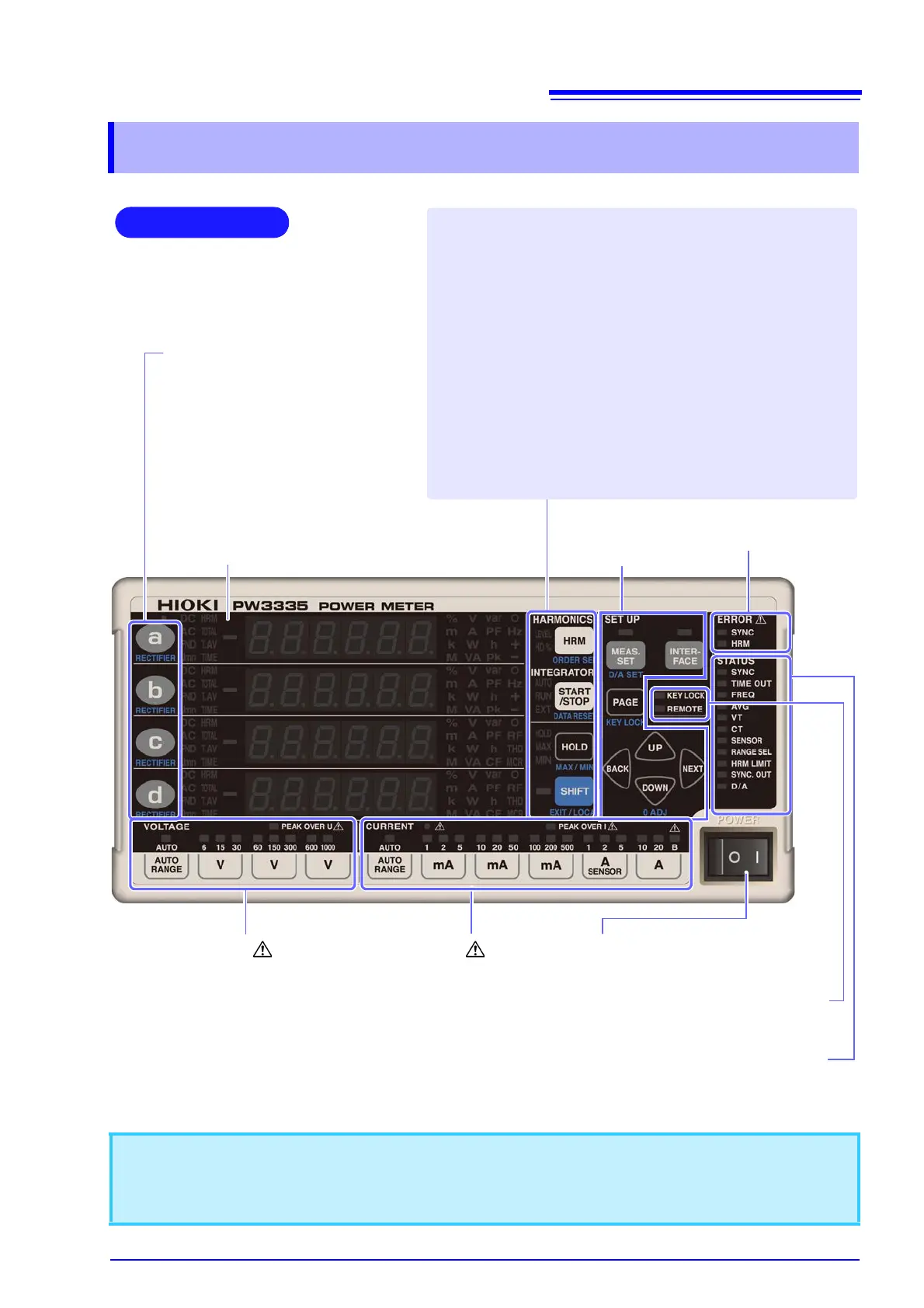

Front Panel
Example:
PW3335-04
Parameter keys (p.14)
Switch display parameters.
RECTIFIER (p.42)
Switches the rectifier in the shift state.
Display
Switches between measured
values and setting values.
Error lamps
(p.17)
Function setting
keys (p.17)
Configure functions.
HRM (ORDER SEL)
Harmonic display (switch among level, content percentage, and
normal display) (Choose the order you wish to display in the shift
state.)
HOLD (MAX/ MIN)
Holds display values (switches between maximum and minimum
values in the shift state).
SHIFT (EXIT/ LOCAL)
Activates the SHIFT state (the lamp will light up while in the SHIFT
state). (p.14)
(Switches from settings mode to the normal measurement state
and from the remote state to the local state.)
START/STOP (DATA RESET)
Starts/stops integration (resets integrated values in the shift state).
Function setting status lamps (p.16)
Light up to indicate when settings differ from
default settings.
