3.5 Performing Synchronized Measurement with Multiple Instruments
80

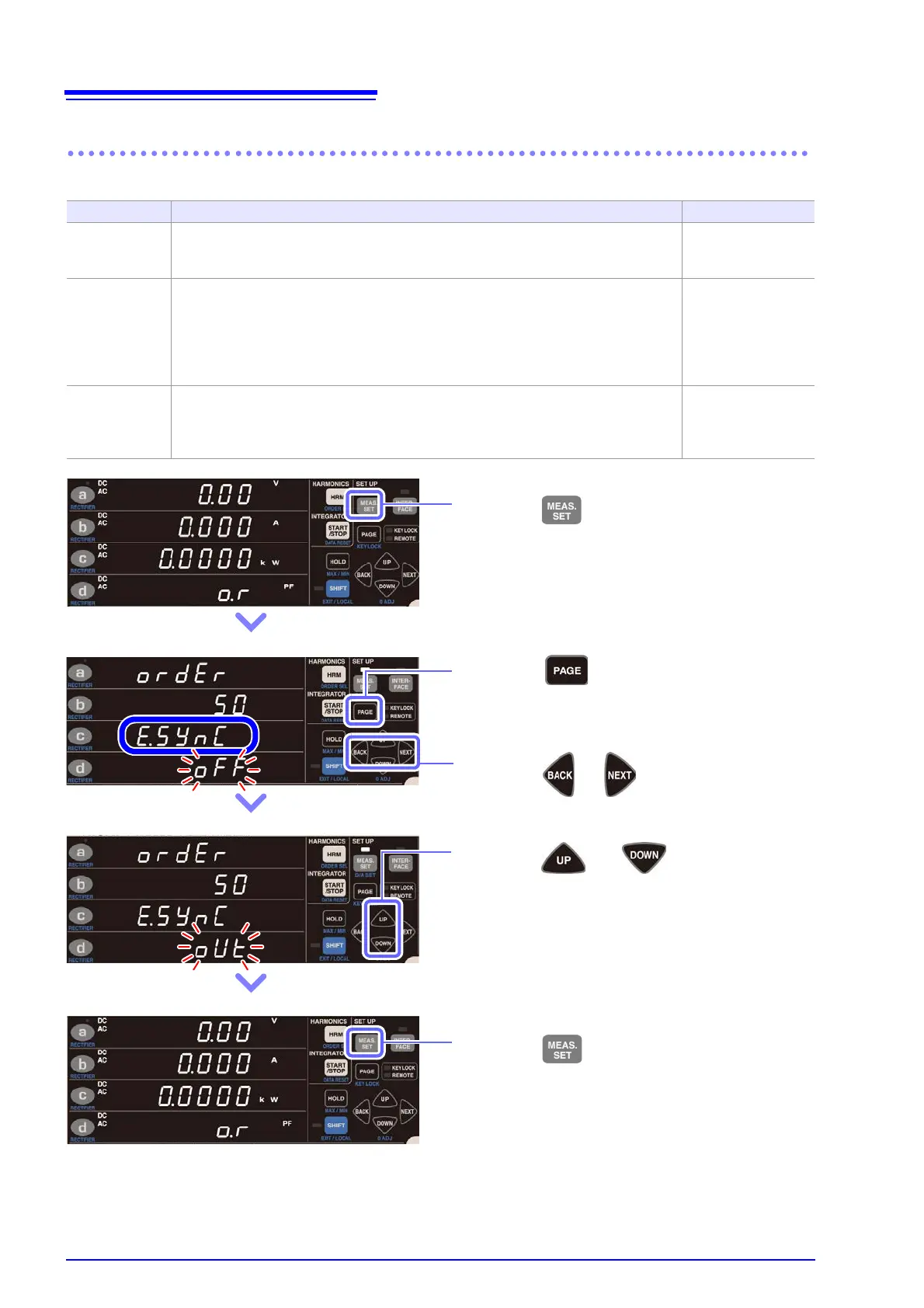

Configuring synchronized measurement
You can set the master and slave by configuring the synchronized control input and output settings.
Setting Description SYNC.OUT lamp
OFF
(Default setting)
Turns off the synchronized control function.
The external synchronization terminal (EXT.SYNC) setting is [IN], but input signals
are ignored. External synchronized operation is not performed.
off
IN
Sets the instrument as the slave.
The external synchronization terminal (EXT.SYNC) is set to [IN], and dedicated
synchronization signals can be input. Synchronization signals will be received from
the external synchronization terminal (EXT.SYNC), and processing will be per-
formed accordingly. When synchronization signals are received from an external
source, the SYNC.OUT lamp will flash.
off, flash
OUT
Sets the instrument as the master.
The external synchronization terminal (EXT.SYNC) will be set to [OUT], and dedi-
cated synchronization signals will be output. Synchronization signals will be output
from the external synchronization terminal (EXT.SYNC).
on
2 Press to switch to the synchro-
nized measurement settings screen.
([E.SynC] will be displayed in display
area
c.)
3 Press or until the display area
d flashes.
4 Press or to configure the
synchronized control I/O setting.
Default setting: OFF
Setting: oFF → in → oUt ⋅⋅⋅
The SYNC.OUT lamp will light up when set to oUt.
5 Press to exit the settings.
The instrument will return to the normal display (Mea-
surement screen).
To Next Page
