3.7 Using D/A Output
87

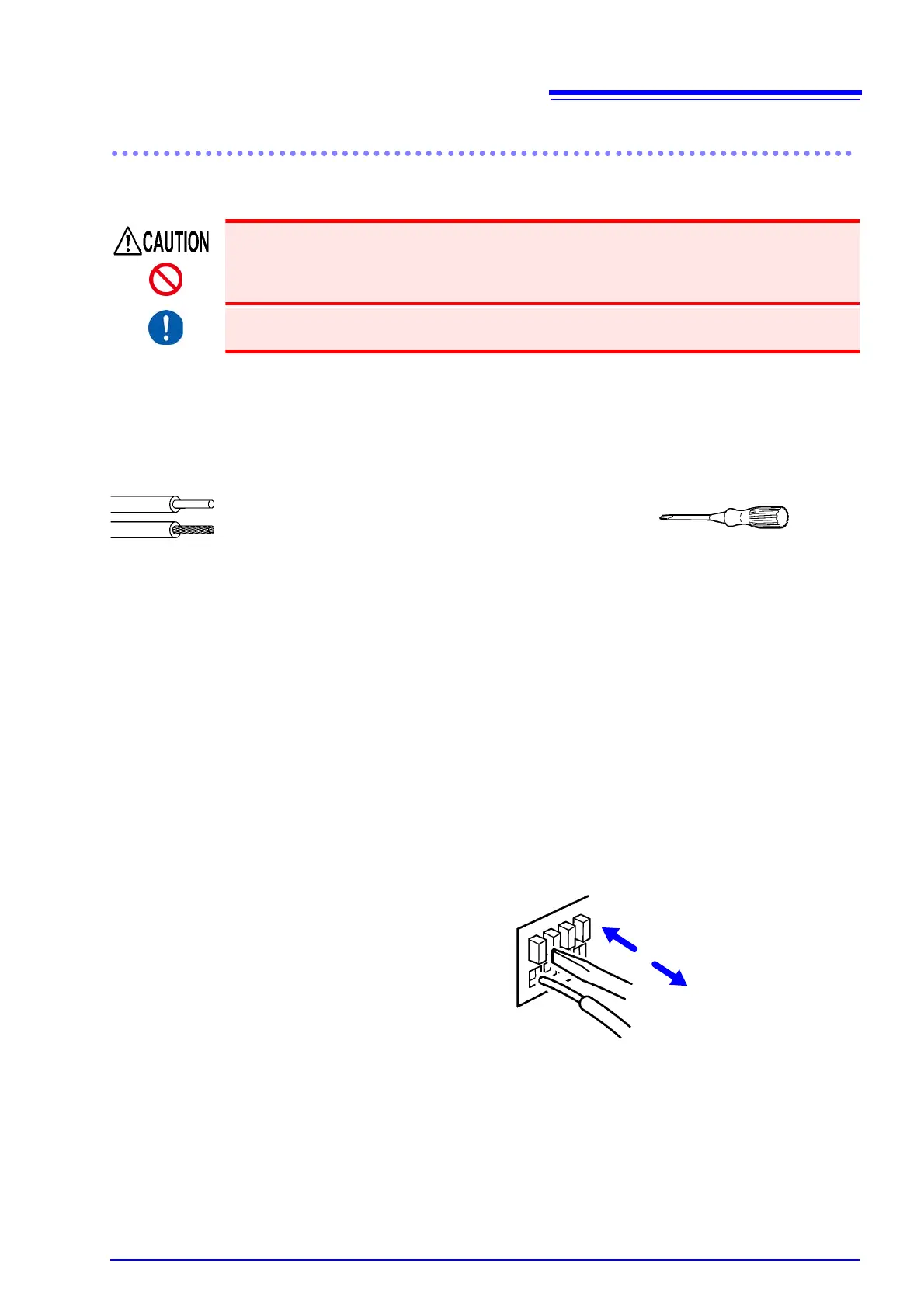

Connecting wires to D/A output terminals
Before connecting wires to the terminals, see "Connecting, Input and Measurement" (p.8).
Connect wires to the terminals that you have set to output the desired parameters. Connect the instrument’s
GND terminal to the GND terminal of the data logger, recorder, or other output device.
See: "Output terminals and description of output" (p.86)
Required item:
To avoid damaging the instrument, do not input voltage to the output terminals or short the
terminals.
To avoid an electrical accident, use the specified wire type.
1
Press down on the button above each of the instrument's D/A output terminals using a
tool, such as a flat head screwdriver.
2
While the button is depressed, insert the wire into the electric wire connection hole.
3
Wires
Recommended wires
Single strand diameter: φ 0.65 mm (AWG22)
Multi-strand: φ 0.32 mm
2
(AWG22)
Strand diameter: At least φ 0.12 mm or greater
Usable wires Single strand diameter: φ 0.32 mm to φ 0.65 mm (AWG28 to AWG22)
Multi-strand: 0.08 mm
2
to 0.32 mm
2
(AWG28 to AWG22)
Strand diameter: At least φ 0.12 mm or greater
Standard insulation stripping length 8 mm
Flathead screwdriver
Shaft diameter: φ 3 mm
tip width: 2.6 mm
Release the button.
The electric wire is locked in place.
To remove the wire:
Hold the button while pulling the wire out.
3
2
1
