3.7 Using D/A Output
90
For Lo. display
For frequency (V Hz or A Hz)
For integrated value (Ah+, Ah-, Ah, Wh+, Wh-, or Wh)

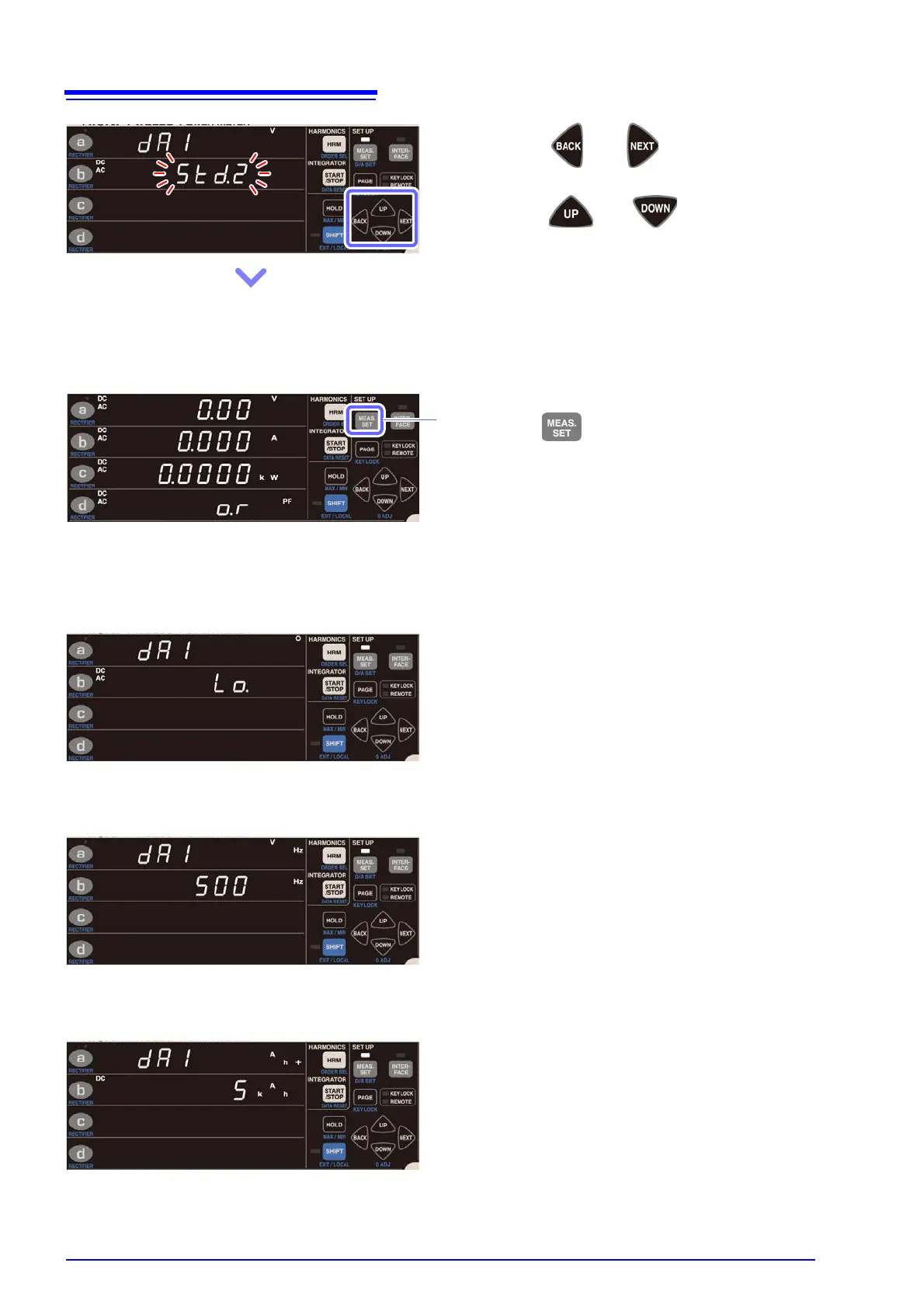

9 Press or until the output
method flashes.
10 Press or to change the
output method.
The available output parameters vary with the output
method and rectifier.
Example: For V and AC+DC
Std.2 → Std.5 → FASt.2 → FASt.5 →
FASt ⋅⋅⋅
11 Press to exit the settings.
The instrument will return to the normal display
(Measurement screen).
If the Lo. display is active, output will be 0 V.
Sets the frequency value for the output f.s.
(5 V).
Default setting: 500 Hz
Settings:
500 → 5 k → 50 k → 500 k → 0.5 →
5 → 50 ⋅⋅⋅ [Hz]
Sets the integrated value for the output f.s.
(5 V).
Default setting: 5 k
Settings:
5 k → 50 k → 500 k → 5 M → 50 M
→ 500 M → 5000 M → 5 m → 50 m
→ 500 m → 5 → 50 → 500 → 5 k ⋅⋅⋅
