PROCESS INFORMATION DISPLAYS
6510020335
119
NOTE
A Trend Set is a collection of four user-specified trends, you can define up
to 20 Trend Set. Trend Sets are stored in the local node, and is unique for
each Operator Station. Towards the top left of the display is a dropdown
list box , which is used to select the Trend Set to
view.
Figure 97 and Figure 98 shows the Numeric and Alpha Numeric Selection Popup.

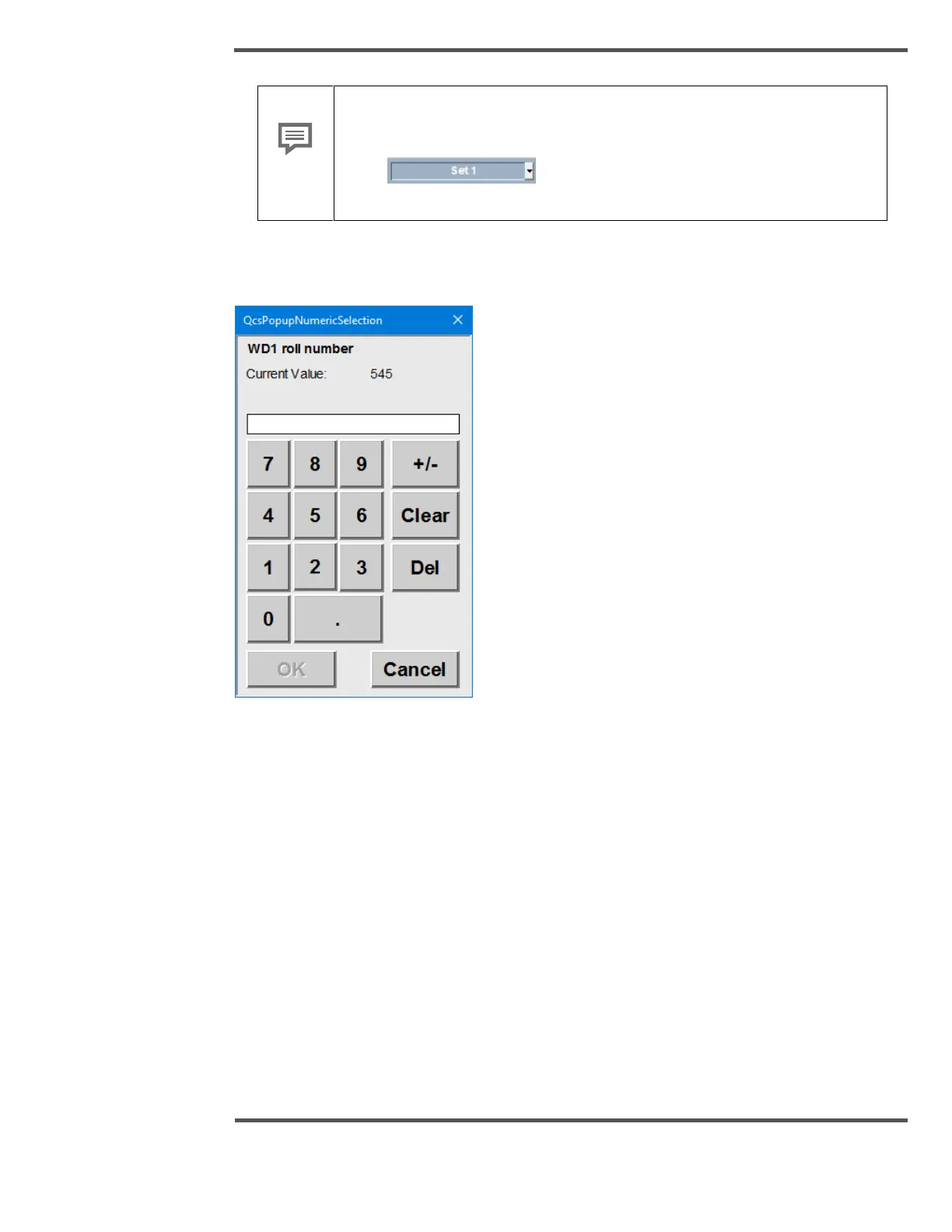

Fig. 97. Numeric Selection popup
