SCANNER SAFETY AND LOCAL CONTROLS

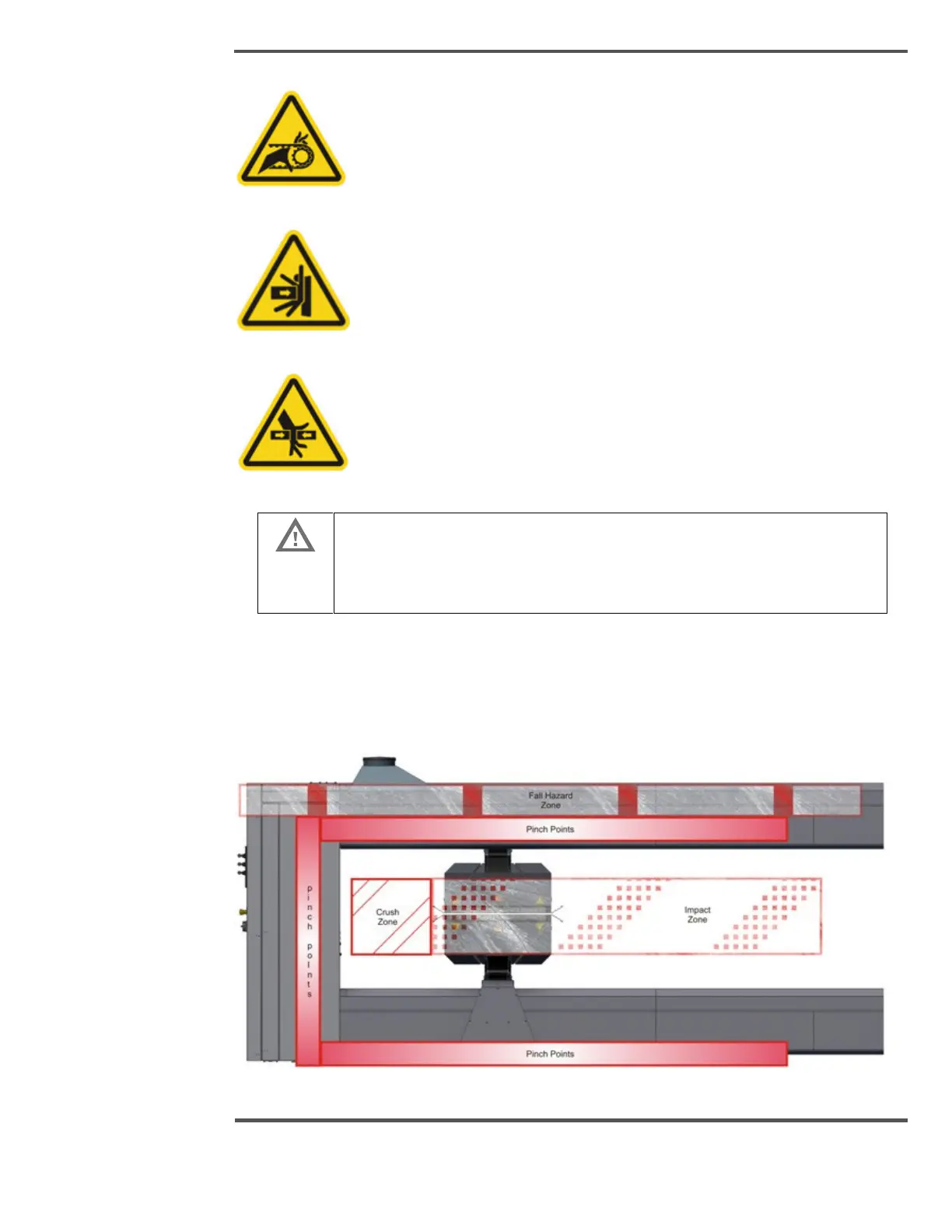

Fig. 2. Pinch point Warning Label
Fig. 3. Body Crush Warning Label
Fig. 4. Hand Crush Warning Label
Prior to opening any scanner beam or side cover panel, the scanner motor
must be locked out by using a hasp on the motor drive breaker. This
completely prevents unintended motion that could be caused by actions
of coworkers or software routines while working near drive components.
Figure 5 shows areas of concern regarding moving mechanical parts that can generate
pinch points, crush zones, and impacts. When working on the scanner in one or more of
these areas, refer to the color coded areas in Figure 5, and in Table 1, to determine the
hazard, warning, and safety precaution.
Fig. 5. Scanner Frame: Mechanical Motion Hazard Zones
