SCANNER SAFETY AND LOCAL CONTROLS

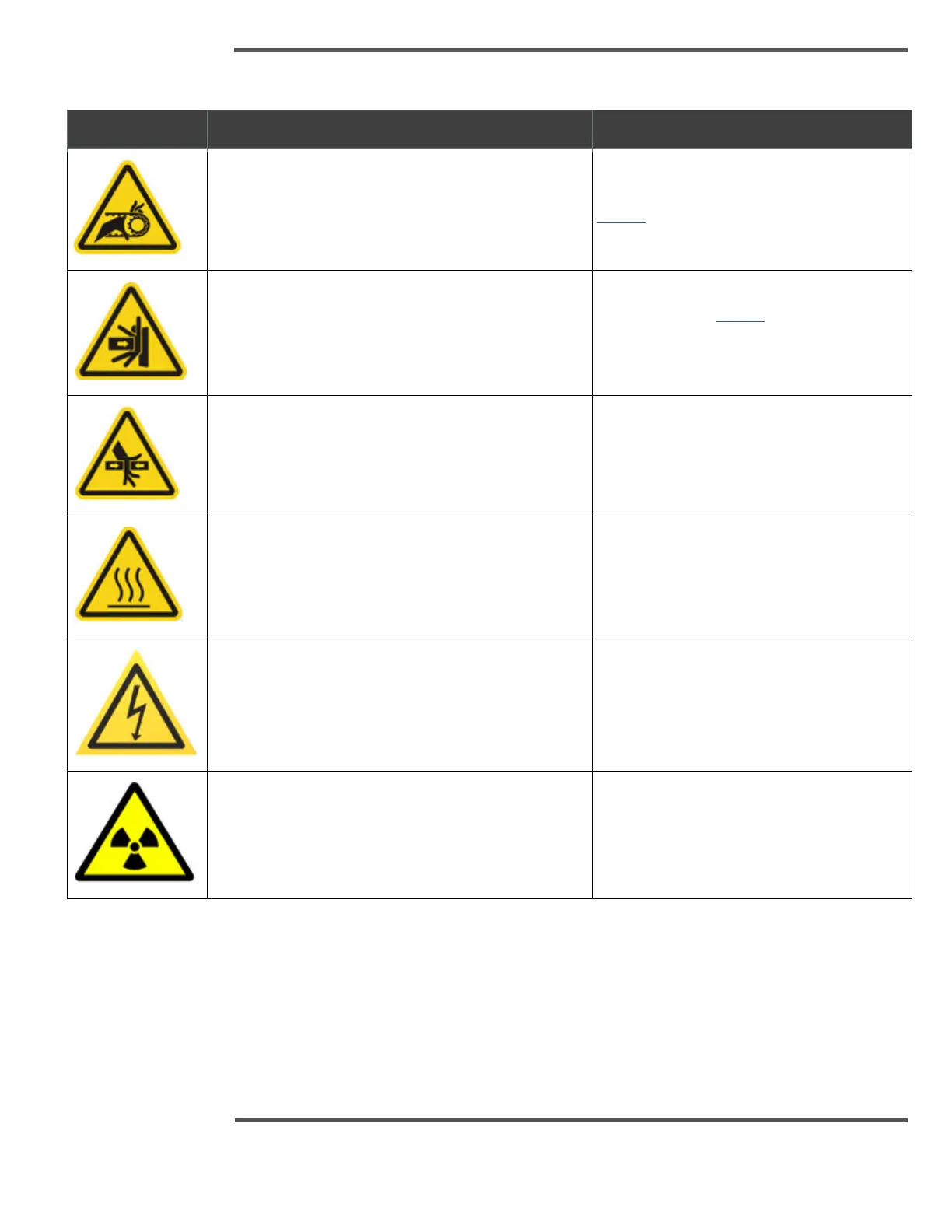

Table. 6. Safety Labels (without text)
Warning! Hand pinch and entanglement hazard
from belts and pulleys.
Outside vertical side panels at both the
cable and distant end (see Subsection
2.2.1.1).
Warning! Body crush hazard between the head and
scanner O-Frame.
Inside scanner O-frame on vertical plates
(see Subsection 2.2.1.1).
Warning! Hand crush from shearing action caused
by scanner head brackets and orange cover
supports.
Located on the scanner frame beams,
either side of vertical, orange painted cover
support bars.
Warning! Hot surface from air wipe heaters located
on the leading edge of the upper and lower heads.
Located on the upstream side of the head
enclosure.
Warning! Shock hazard from 208–240 V AC. Work in
this area exposes the worker to lethal voltage and
current levels which can cause serious/fatal injury.
Located near 208–240 V AC terminations.
Warning! Indicates operation of radiation source
mounted in scanner.
Located near nuclear shutter status
indicators on upper and lower heads and
user panel.
See Table 7 for labels (with text), hazard descriptions, and placement locations on the
scanner. Labels are typically placed conspicuously at entry points to enclosures where
multiple hazards may exist, or in close proximity to hazard locations.
