1/01
UDC3300 Limit Controller Product Manual
93
Section 8
–
Parts List
8.1
Exploded View
Introduction

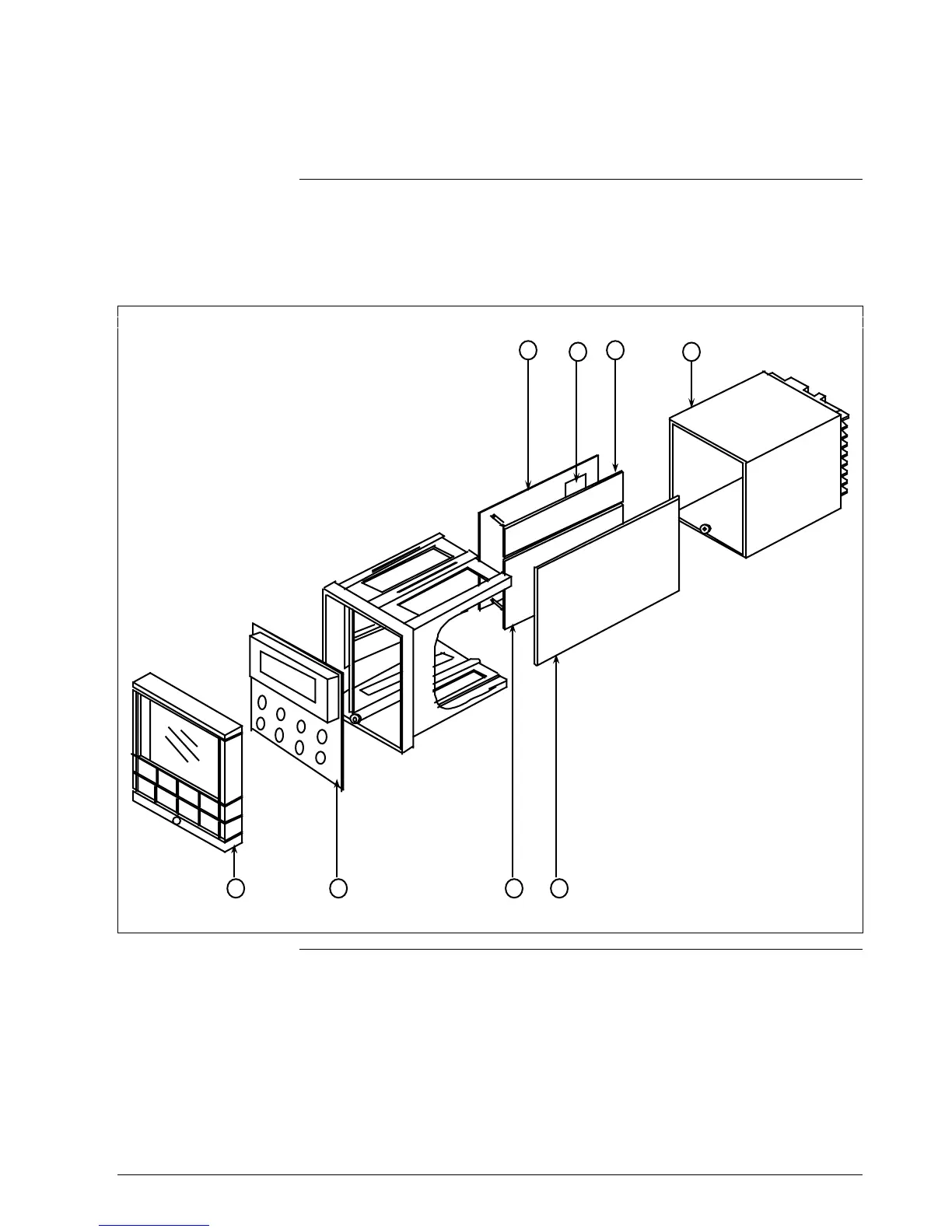

Figure 8-1 is an exploded view of the UDC3300 Limit Controller. Each
part is labeled with a key number. The part numbers are listed by key
number in Table 8-1. There is a list of parts not shown in Table 8-2.
Figure 8-1
UDC3300 Exploded View
12
3
4
5
67
8
22650
Continued on ne
xt page
102
104
