6.4 Input #1 Set Up Wiring, Continued
Thermocouple inputs
using a precision
resistor
Refer to Figure 6-3 and wire the controller according to the procedure
given in Table 6-4.
Table 6-4 Set Up Wiring Procedure for Thermocouple Inputs Using
a Precision Resistor
Step Action
1
Connect the copper leads to the calibrator.
2
Disconnect the cold junction resistor.
3
Install a 500-ohm precision resistor across terminal 25 (R) and terminal
27 (–). See Figure 6-3.
4
Subtract the millivolt value for 77°F (25°C) from the zero and span value for
your range (see Table 6-1 for zero and span values) and use the adjusted
value when calibrating.

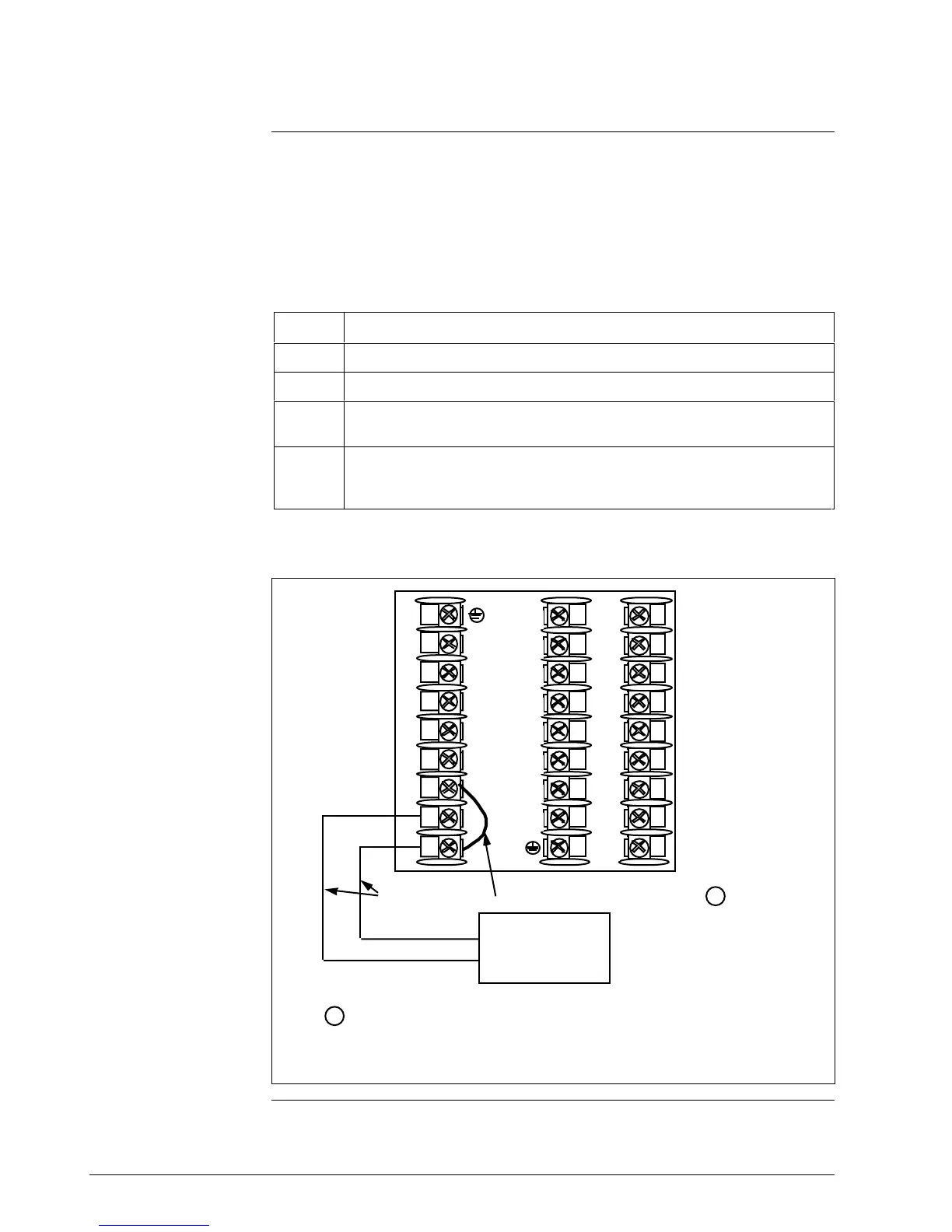

Figure 6-3 Wiring Connections for Thermocouple Inputs Using a
Precision Resistor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
L1
L2/N
22
23
24
25
26
27
+
–
Precision 500 Ohm Resistor
Copper Leads
Millivolt
Source
+
–
R
1
1
Caution: The accuracy of the controller is directly affected by the
accuracy of this resistor. At a minimum, use a 0.1%, 25ppm resistor.
22628
Continued on next page
