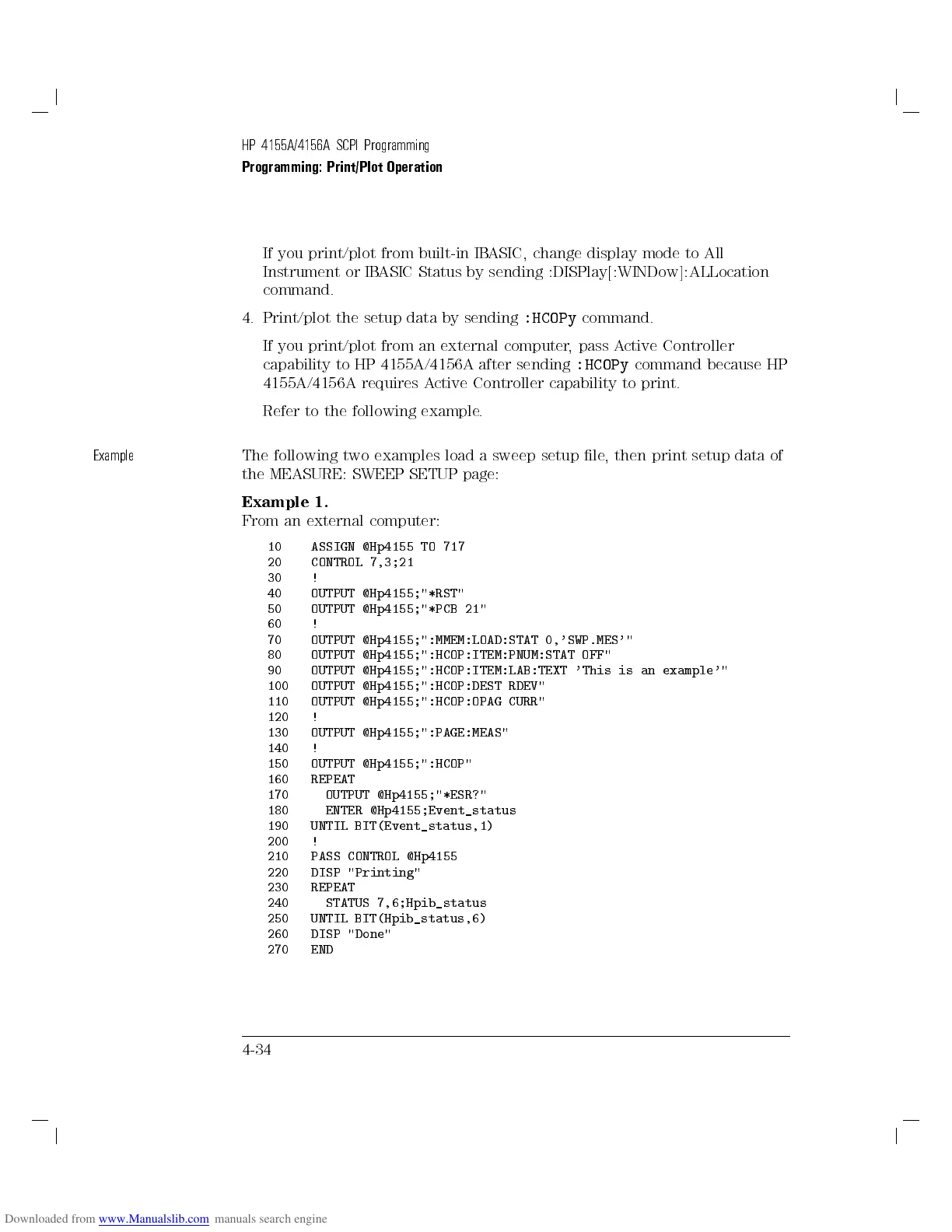

HP 4155A/4156A SCPI Programming
Programming: Print/Plot Operation
If you print/plot from built-in IBASIC, change display mode to All
Instrument or IBASIC Status by sending :DISPlay[:WINDow]:ALLocation
command.
4. Print/plot the setup data by sending :HCOPy command.
If you print/plot from an external computer, pass Active Controller
capability to HP 4155A/4156A after sending :HCOPy command because HP
4155A/4156A requires Active Controller capability to print.
Refer to the following example.
Example The following two examples load a sweep setup le, then print setup data of
the MEASURE: SWEEP SETUP page:
Example 1.
From an external computer:
10 ASSIGN @Hp4155 TO 717
20 CONTROL 7,3;21
30 !
40 OUTPUT @Hp4155;"*RST"
50 OUTPUT @Hp4155;"*PCB 21"
60 !
70 OUTPUT @Hp4155;":MMEM:LOAD:STAT 0,'SWP.MES'"
80 OUTPUT @Hp4155;":HCOP:ITEM:PNUM:STAT OFF"
90 OUTPUT @Hp4155;":HCOP:ITEM:LAB:TEXT 'This is an example'"
100 OUTPUT @Hp4155;":HCOP:DEST RDEV"
110 OUTPUT @Hp4155;":HCOP:OPAG CURR"
120 !
130 OUTPUT @Hp4155;":PAGE:MEAS"
140 !
150 OUTPUT @Hp4155;":HCOP"
160 REPEAT
170 OUTPUT @Hp4155;"*ESR?"
180 ENTER @Hp4155;Event_status
190 UNTIL BIT(Event_status,1)
200 !
210 PASS CONTROL @Hp4155
220 DISP "Printing"
230 REPEAT
240 STATUS 7,6;Hpib_status
250 UNTIL BIT(Hpib_status,6)
260 DISP "Done"
270 END
4-34
