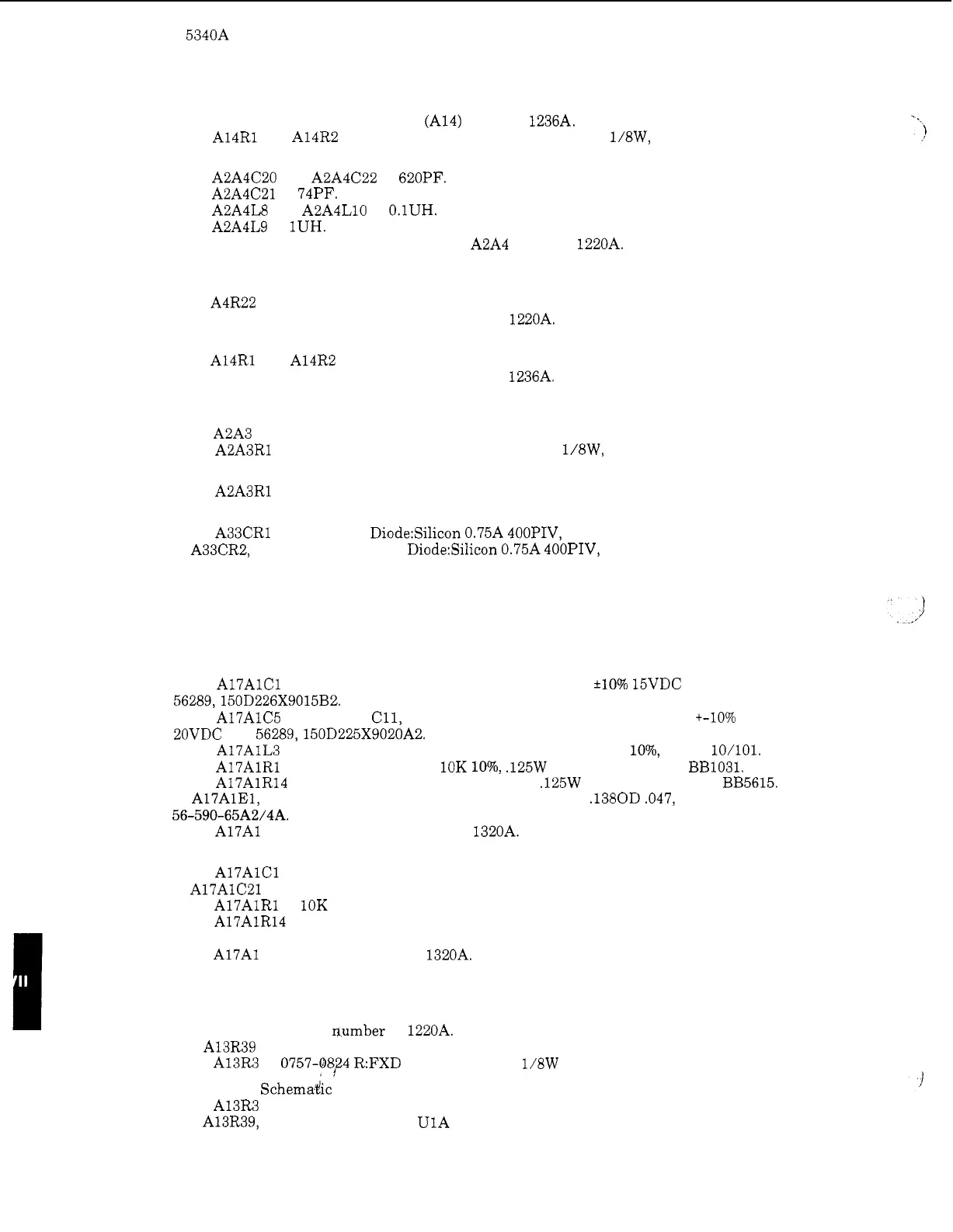

Model 5340A
Manual Changes and Options
Table 6
- 1, A14 Replaceable Parts:
Change series number for 05340
- 60011 (A14) to Series 1236A.
Change A14R1 and A14R2 to 0757 - 0893 RFXD FLM 51 OHM 2% 1/8W, 28480, 0757 - 0893.
Page
8 - 13, Figure 8 - 8, A2 Schematic Diagram:
Change
A2A4C20 and A2A4C22 to 620PF.
Change A2A4C21 to 74PF.
Change A2A4L8 and A2A4L10 to O.1UH.
Change A2A4L9 to 1UH.
Change series number at top of schematic for A2A4 to Series 1220A.
Delete C8.
Change
A4R22 to 2200 OHMS.
Change series number at top
of schematic to Series 1220A.
Change A14R1 and A14R2 to 51 OHMS.
Change series number
at top of schematic to Series 1236A.
Page 8 - 17, Figure 8 - 10, A4 Schematic Diagram:
Page 8
- 37, Figure 8 - 20, A14 Schematic Diagram:
CHANGE 2
Page 6 - 6, A2A3 Parts List:
Change
A2A3R1 to 0757 - 0963 RFXD FLM 43K OHM, 2%, 1/8W, 28480,0757 - 0963.
Page 8
- 13, Figure 8 - 8:
Change
A2A3R1 to 43K.
Page 6
- 32, A33 Parts List:
Change
A33CR1 to 1901 - 0027, Diode:Silicon 0.75A 400PIV, 04713, SR1358 - 9.
Add
A33CR2, CR3, CR4; 1901 - 0027, Diode:Silicon 0.75A 400PIV, 04713, SR1358 - 9.
Change part number
of T2 to 9100 - 3021.
Page 8
- 77, Figure 8 - 35, A33 Power Supply:
Replace schematic and component locator with Figure 7
- 9 and 7 - 10.
CHANGE 3
Table 6 - 1, A17 Replaceable Parts:
56289,150D226X9015B2.
2OVDC TA, 56289,150D225X9020A2.
Change A17AlC1 and C2 to 0180 - 0228, Capacitor; FXD 22 UF *lo% 15VDC TA - SOLID,
Change
A17AlC5 through C7, C11, C12 to 0180 - 0197, Capacitor; FXD 2.2 UF +-lo%
Change A17AlL3 to 9140 - 0158, Coil, FXD, Molded RF Choke, 1 UH lo%, 24226, 10/101.
Change A17AlR1 to 0698 - 5426, Resistor 10K lo%, .125W CC Tubular, 01121, BB1031.
Change A17AlR14 to 0698 - 5996, Resistor 560 OHM 5% .125W CC Tubular, 01121, BB5615.
Add A17AlE1, E3, 9170 - 0029, Core Magnetic, Shielding Bead, .1380D .047, 02114,
Change
A17A1 board series number to Series 1320A.
Change A17AlCl and C2 to 22 UFD.
Add
A17AlC21 2.2 PF from U5B pin 11 to ground.
Change
A17AlR1 to 10K ohms.
Change
A17AlR14 to 560 ohms.
Delete C22 and C23.
Change
A17A1 board series number to 1320A.
56-590-65A2/4A.
Figure 8 - 23, A17 Schematic Diagram:
CHANGE 4
Table 6 - 1, A13 Replaceable Parts:
Change A13 board series
oumber to 1220A.
Delete A13R39 and description.
Change
A13R3 to 0757-08/24 R:FXD FLM 56 ohm 2% 1/8W 28480 0757 - 0894.
Change
A13R3 to 56' ohms.
Delete
A13R39, connect C4 directly to U1A pin 1.
Figure 8 - 19, A13 Schemadic Diagram:
7
- 2
