The output shows that Switch C communicates with network 1200::0/64 through the path Switch
C<—>Switch B<—>Switch A.
# Break down the path Switch C<—>Switch B<—>Switch A and then display route 1200::0/64 on
Switch C.
<SwitchC> display ipv6 routing-table 1200::0 64 verbose
Summary count : 1
Destination: 1200::/64
Protocol: BGP4+ Process ID: 0
SubProtID: 0x1 Age: 00h00m57s
Cost: 100 Preference: 255
IpPre: N/A QosLocalID: N/A
Tag: 0 State: Active Adv
OrigTblID: 0x1 OrigVrf: default-vrf
TableID: 0xa OrigAs: 0
NibID: 0x25000000 LastAs: 0
AttrID: 0x0 Neighbor: 2000::1
Flags: 0x10060 OrigNextHop: 2000::1
Label: NULL RealNextHop: FE80::20C:29FF:FE40:715
BkLabel: NULL BkNextHop: N/A
Tunnel ID: Invalid Interface: Vlan-interface201
BkTunnel ID: Invalid BkInterface: N/A
The output shows that Switch C communicates with network 1200::0/64 through the path Switch
C<—>Switch D<—>Switch A.
IPv6 BGP FRR configuration example
Network requirements
As shown in Figure 86, configure BGP FRR so that when Link B fails, BGP uses Link A to forward
traffic.

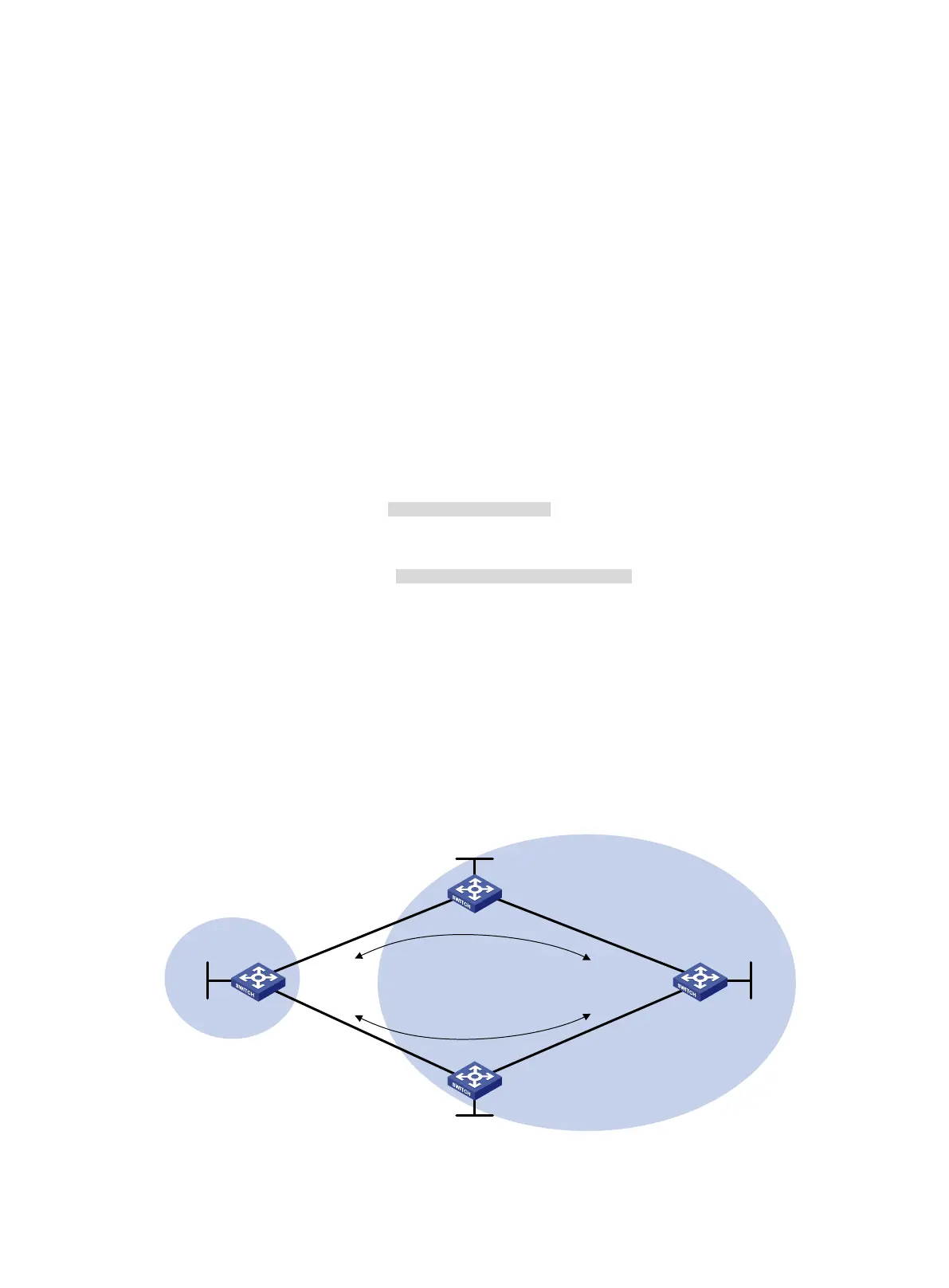

Figure 86 Network diagram
Switch B
Switch C
Switch D
AS 200
AS 100
Switch A
Loop0
1.1.1.1/32
1::1/64
Loop0
4.4.4.4/32
4::4/64
Vlan-int200
2001::1/64
Vlan-int100
3001::1/64
Vlan-int100
3001::2/64
Vlan-int101
3002::1/64
Vlan-int201
2002::2/64
Vlan-int101
3002::2/64
Vlan-int200
2001::2/64
Vlan-int201
2002::1/64
Link A
Link B
Loop0
2.2.2.2/32
Loop0
3.3.3.3/32
