# Display the static routes on Switch A.
<SwitchA> display ip routing-table protocol static
Summary Count : 1
Static Routing table Status : <Active>
Summary Count : 1
Destination/Mask Proto Pre Cost NextHop Interface
120.1.1.0/24 Static 60 0 12.1.1.2 Vlan10
Static Routing table Status : <Inactive>
Summary Count : 0
The output shows that Switch A communicates with Switch B through VLAN-interface 10. Then the
link over VLAN-interface 10 fails.
# Display static routes on Switch A.
<SwitchA> display ip routing-table protocol static
Summary Count : 1
Static Routing table Status : <Active>
Summary Count : 1
Destination/Mask Proto Pre Cost NextHop Interface
120.1.1.0/24 Static 65 0 10.1.1.100 Vlan11
Static Routing table Status : <Inactive>
Summary Count : 0
The output shows that Switch A communicates with Switch B through VLAN-interface 11.
Static route FRR configuration example
Network requirements
As shown in Figure 5, configure static routes on Switch A, Switch B, and Switch C, and configure
static route FRR. When Link A becomes unidirectional, traffic can be switched to Link B immediately.

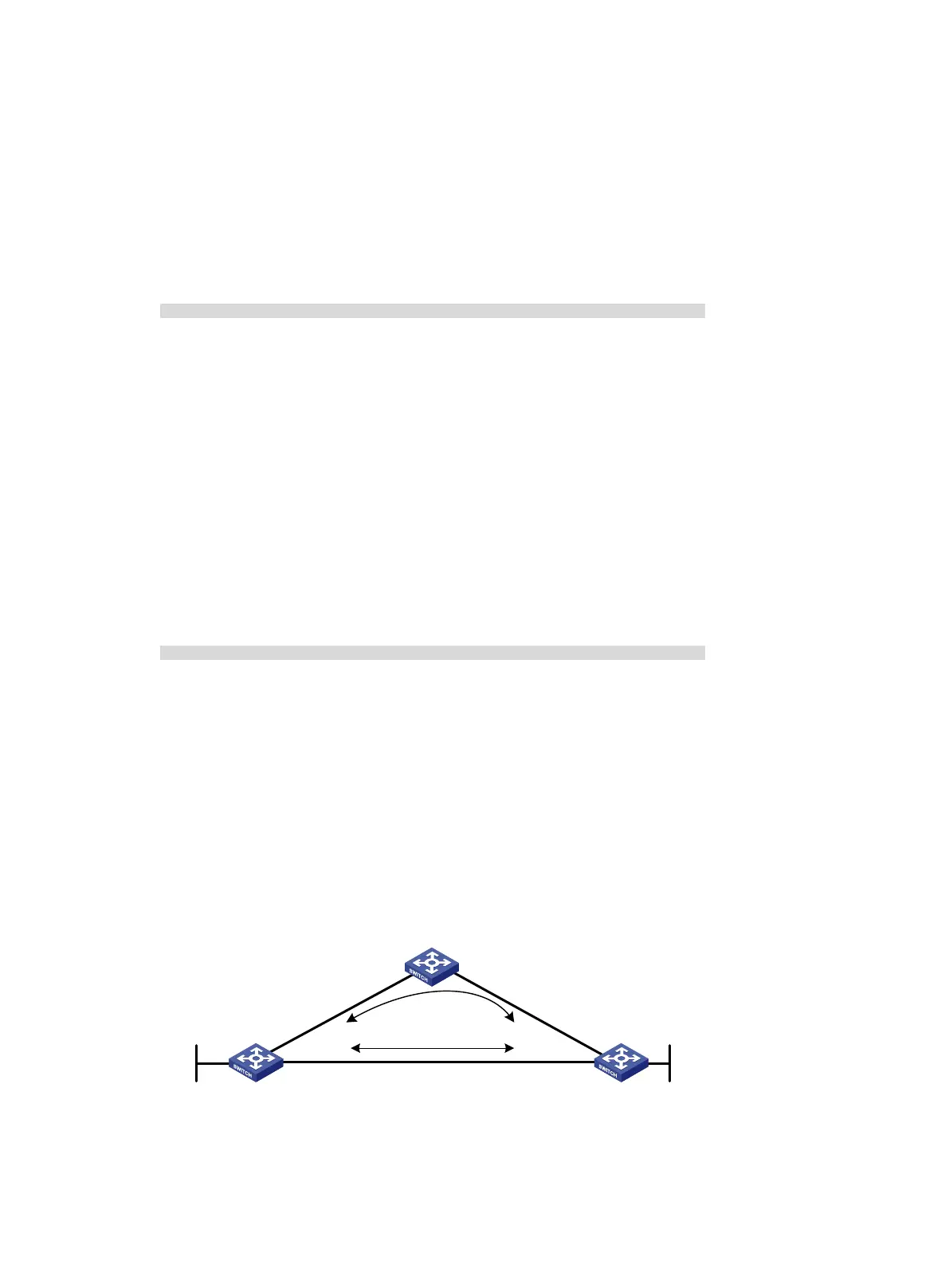

Figure 5 Network diagram
Switch A Switch B
Switch C
Loop0
Vlan-int100
Vlan-
int200
Vlan-int200
Vlan-int100
Vlan
-int101
Vlan-int101
Loop0
Link A
Link B
