127.0.0.0/32 Direct 0 0 127.0.0.1 InLoop0
127.0.0.1/32 Direct 0 0 127.0.0.1 InLoop0
127.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0
Configuring RIP GR
Network requirements
As shown in Figure 11, Switch A, Switch B, and Switch C all run RIPv2.
•
Enable GR on Switch A. Switch A acts as the GR restarter.
•
Switch B and Switch C act as GR helpers to synchronize their routing tables with Switch A by
using GR.

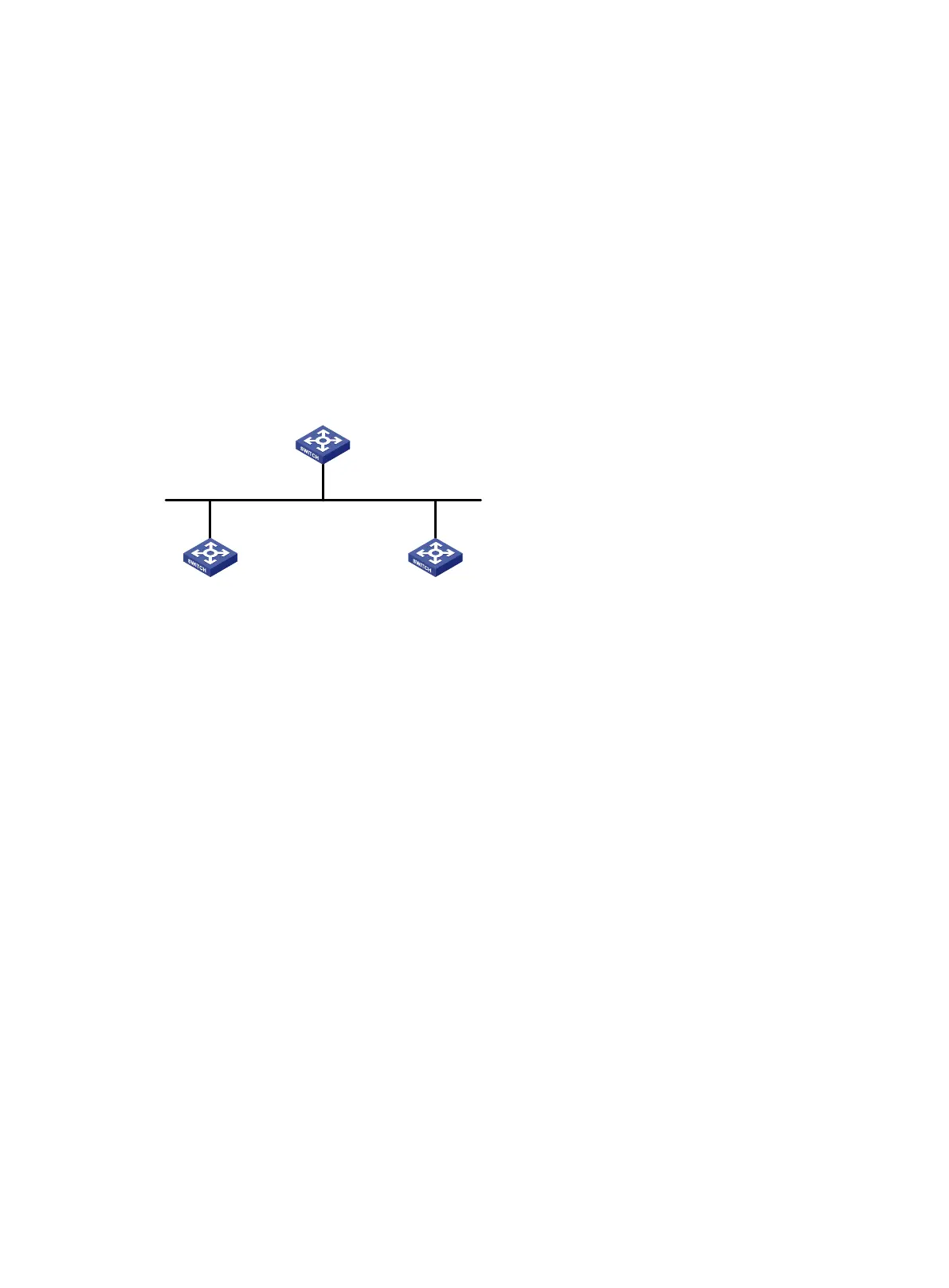

Figure 11 Network diagram
Configuration procedure
1. Configure IP addresses and subnet masks for interfaces on the switches. (Details not shown.)
2. Configure RIPv2 on the switches to ensure the following: (Details not shown.)
 Switch A, Switch B, and Switch C can communicate with each other at Layer 3.
 Dynamic route update can be implemented among them with RIPv2.
3. Enable RIP GR on Switch A.
<SwitchA> system-view
[SwitchA] rip
[SwitchA-rip-1] graceful-restart
Verifying the configuration
# Trigger a routing protocol restart or active/standby switchover and display GR status on Switch A.
<SwitchA> display rip graceful-restart
RIP process: 1
Graceful Restart capability : Enabled
Current GR state : Normal
Graceful Restart period : 60 seconds
Graceful Restart remaining time : 0 seconds
Configuring RIP NSR
Network requirements
As shown in Figure 12, Switch A, Switch B, and Switch S all run RIPv2.
Vlan-int100
192.1.1.1/24
Vlan-int100
192.1.1.3/24
Vlan-int100
192.1.1.2/24
GR helper GR helper
GR restarter
Switch A
Switch CSwitch B
Router ID: 1.1.1.1
Router ID: 2.2.2.2
Router ID: 3.3.3.3
