56 bytes from 192:168::4, icmp_seq=3 hlim=64 time=1.000 ms
56 bytes from 192:168::4, icmp_seq=4 hlim=64 time=1.000 ms
--- Ping6 statistics for 192:168::4 ---
5 packets transmitted, 5 packets received, 0.0% packet loss
round-trip min/avg/max/std-dev = 0.000/1.200/3.000/0.980 ms
IPv4 multi-hub-group ADVPN configuration example
Network requirements
As shown in Figure 152, the primary and secondary VAM servers manage and maintain VAM client
information for all hubs and spokes. The AAA server performs authentication and accounting for
VAM clients.
• Configure three hub groups to accommodate all ADVPN nodes:
{ Hub group 0 contains Hub 1, Hub 2, and Hub 3.
{ Hub group 1 contains Hub 1, Hub 2, Spoke 1, and Spoke 2. Hub 1 and Hub 2 back up each
other.
{ Hub group 2 contains Hub 3, Spoke 3, and Spoke 4. Hub groups 1 and 2 use full-mesh
networking.
• Allow any two spokes to establish a direct spoke-spoke tunnel.

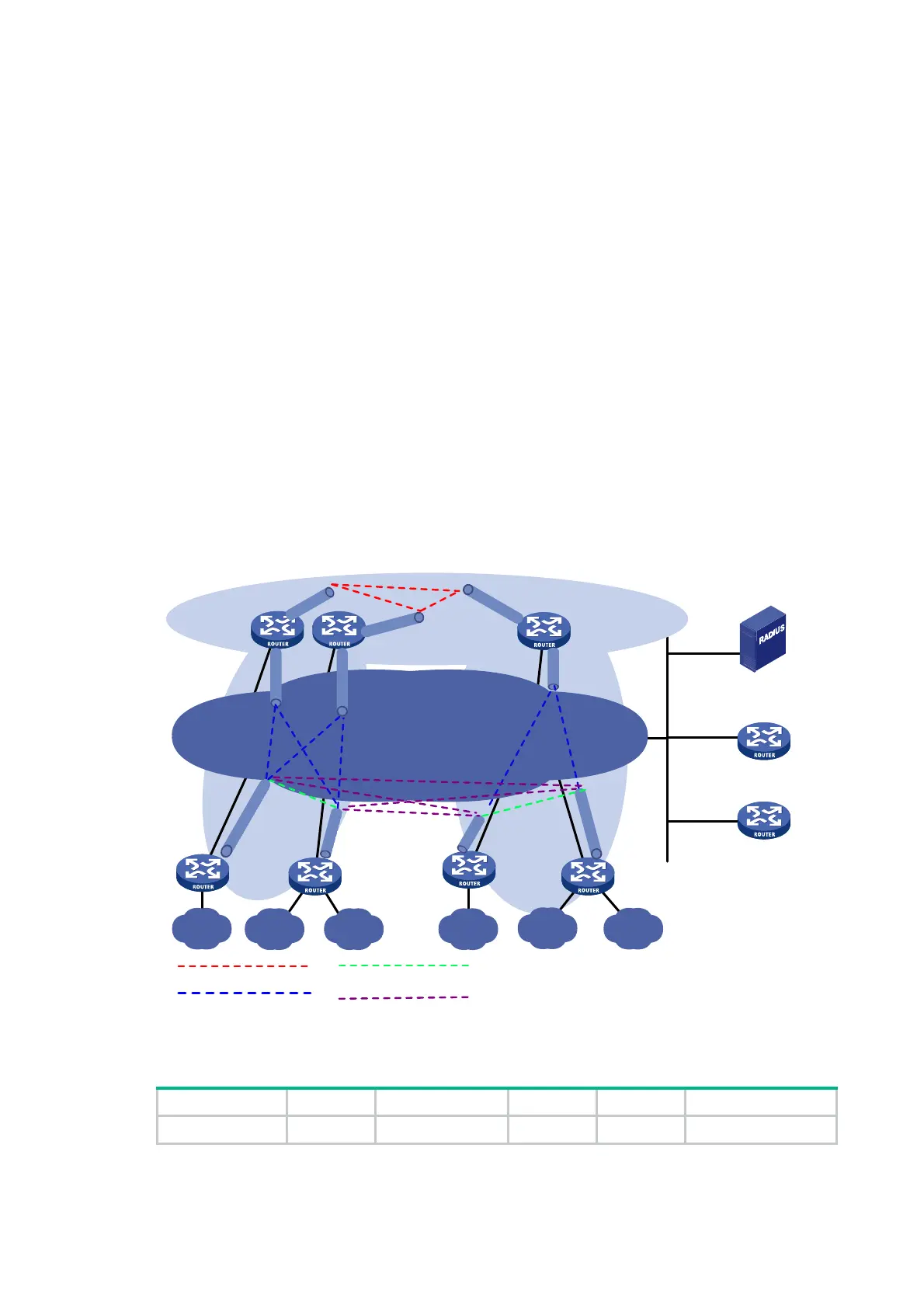

Figure 152 Network diagram
Table 16 Interface and IP address assignment
Device Interface IP address Device Interface IP address
Hub 1 GE2/0/1 1.0.0.1/24 Spoke 1 GE2/0/1 1.0.0.4/24
AAA server
Hub3
Hub1
Group 1
Group 2
Group 0
Spoke1
Spoke4
Hub2
Tunnel 1
Tunnel 1
Tunnel 1
Tunnel 1
Tunnel 1
Tunnel 1
Spoke2
Spoke3
GE2/0/1
GE2/0/2
GE2/0/1
GE2/0/2
GE2/0/3
GE2/0/1
GE2/0/2
GE2/0/3
GE2/0/1
GE2/0/1
GE2/0/1
GE2/0/1
Tunnel 1
GE2/0/2
Tunnel 2
Tunnel 2
Tunnel 2
Site 1
Site 2 Site 3 Site 4
Site 5
Site 6
Primary server
Secondary server
GE2/0/1
GE2/0/1
Spoke-to-Spoke dynamic tunnel
between two groups
Hub-to-Hub static tunnel
Hub-to-Spoke static tunnel
Spoke-to-Spoke dynamic
tunnel in one group
