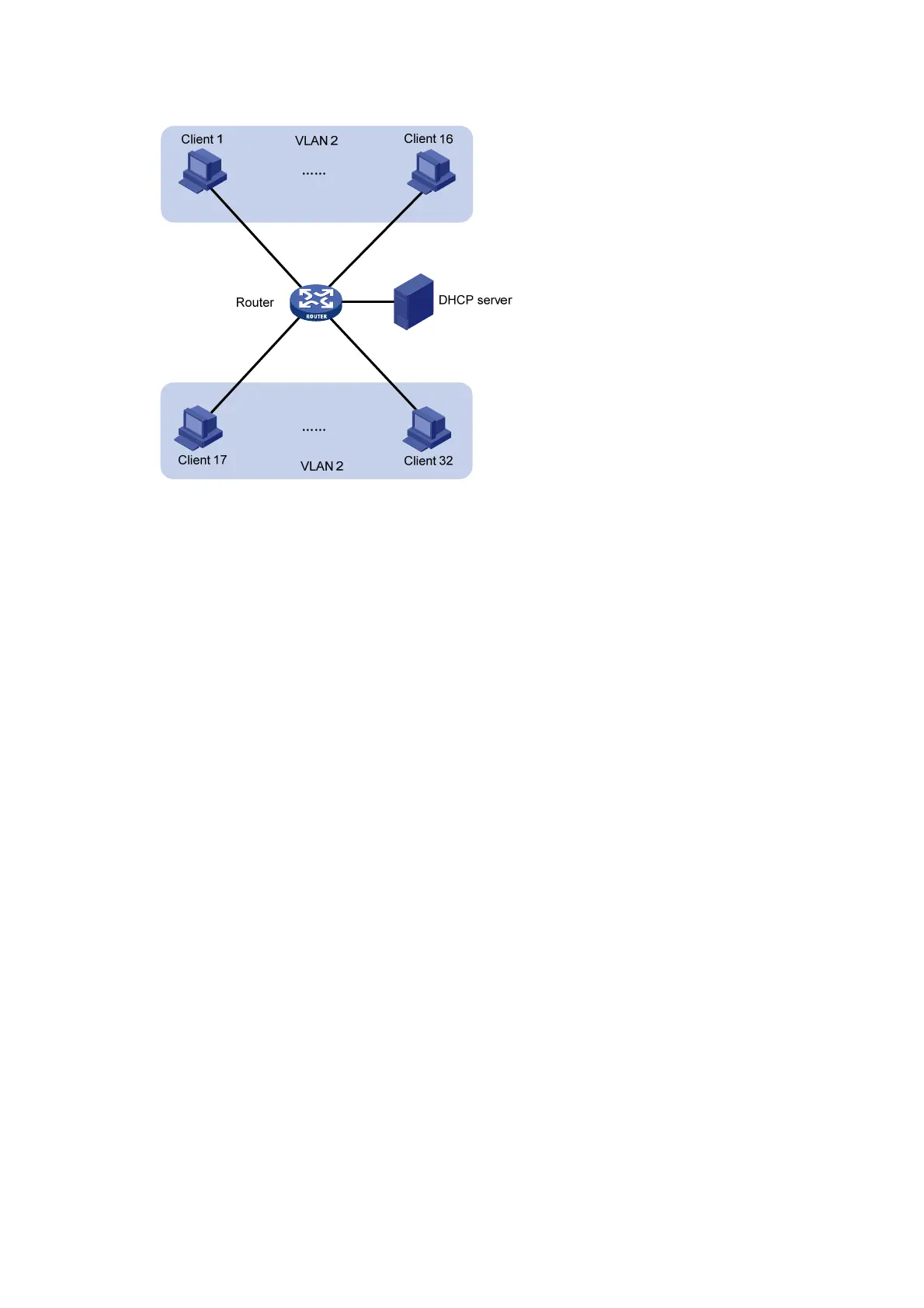

Figure 6 Network diagram

Configuration procedure

# Enable ARP snooping for VLAN 2 on the router.

<Router> system-view

[Router] vlan 2

[Router-vlan2] arp snooping enable

# Enable ARP fast-reply for VLAN 2 on the router.

[Router-vlan2] arp fast-reply enable

[Router-vlan2] quit
