116

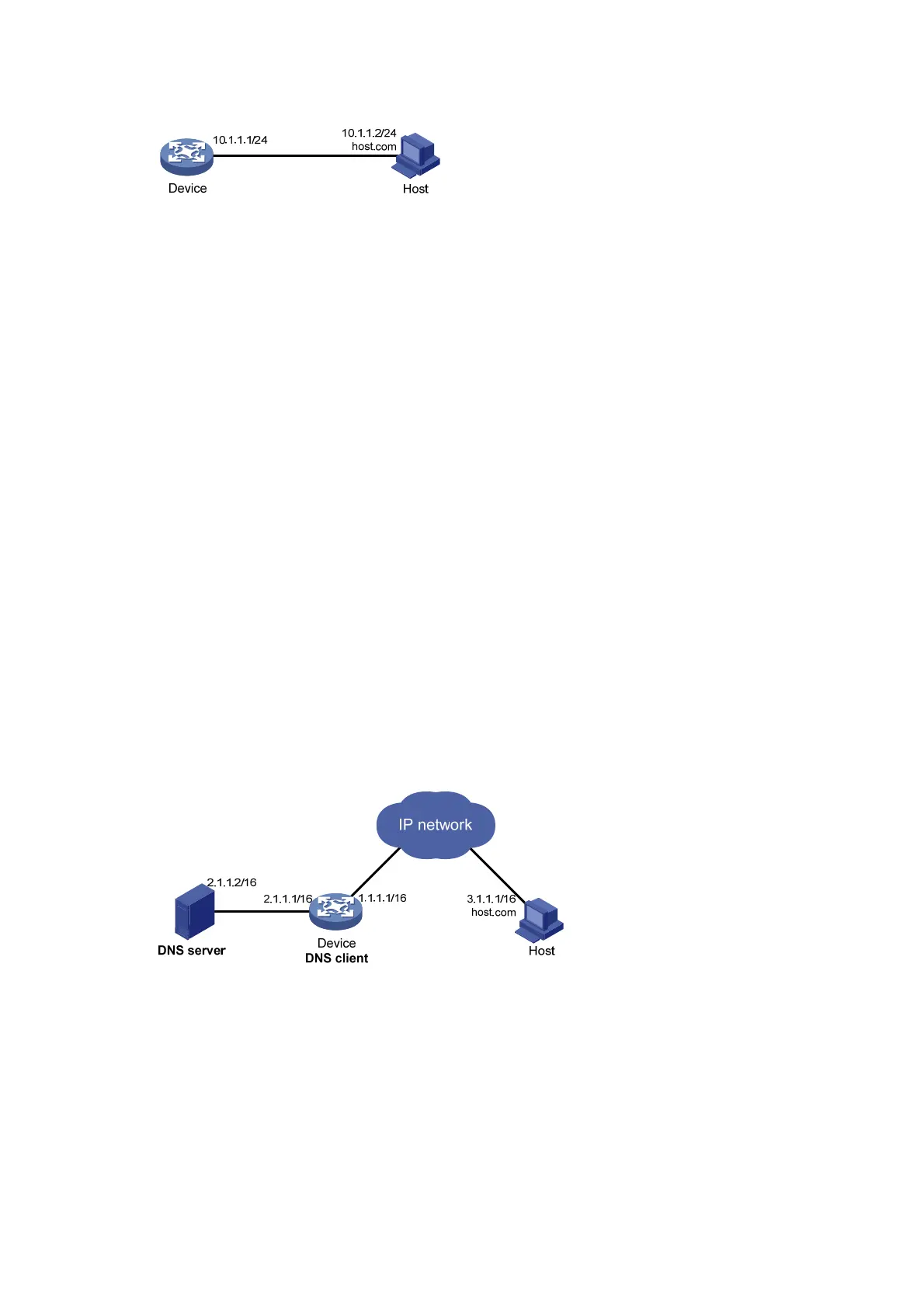

Figure 42 Network diagram
Configuration procedure
# Configure a mapping between the host name host.com and the IP address 10.1.1.2.
<Sysname> system-view
[Sysname] ip host host.com 10.1.1.2
# Verify that the device can use static domain name resolution to resolve the domain name
host.com into the IP address 10.1.1.2.
[Sysname] ping host.com
Ping host.com (10.1.1.2): 56 data bytes, press CTRL_C to break
56 bytes from 10.1.1.2: icmp_seq=0 ttl=255 time=1.000 ms
56 bytes from 10.1.1.2: icmp_seq=1 ttl=255 time=1.000 ms
56 bytes from 10.1.1.2: icmp_seq=2 ttl=255 time=1.000 ms
56 bytes from 10.1.1.2: icmp_seq=3 ttl=255 time=1.000 ms
56 bytes from 10.1.1.2: icmp_seq=4 ttl=255 time=2.000 ms
--- Ping statistics for host.com ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.000/1.200/2.000/0.400 ms
Dynamic domain name resolution configuration example
Network requirements
As shown in Figure 43, configure the DNS server to store the mapping between the host's domain
name host and IPv4 address 3.1.1.1/16 in the com domain. Configure dynamic IPv4 DNS and the
DNS suffix com on the device so that the device can use the domain name host to access the host.
Figure 43 Network diagram
Configuration procedure
Before performing the following configuration, make sure that:
• The device and the host can reach each other.
• The IP addresses of the interfaces are configured as shown in Figure 43.
1. Config
ure the DNS server:
