457
DS-Lite tunnel peer: -
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: ICMP(1)
Inbound interface: GigabitEthernet2/0/1
State: ICMP_REPLY
Application: OTHER
Start time: 2014-03-13 08:52:59 TTL: 27s
Initiator->Responder: 4 packets 240 bytes
Responder->Initiator: 4 packets 240 bytes
Total sessions found: 1
Allowing IPv6 Internet access from an IPv4 network
Network requirements
As shown in Figure 164, a company deploys an IPv4 network, and the Internet migrates to IPv6.
To allow IPv4 hosts to access the IPv6 server in the IPv6 Internet, configure the following AFT
policies on the router:
• Configure an IPv4-to-IPv6 source address dynamic translation policy.
• Configure an IPv6-to-IPv4 source address static mapping for the IPv6 server.

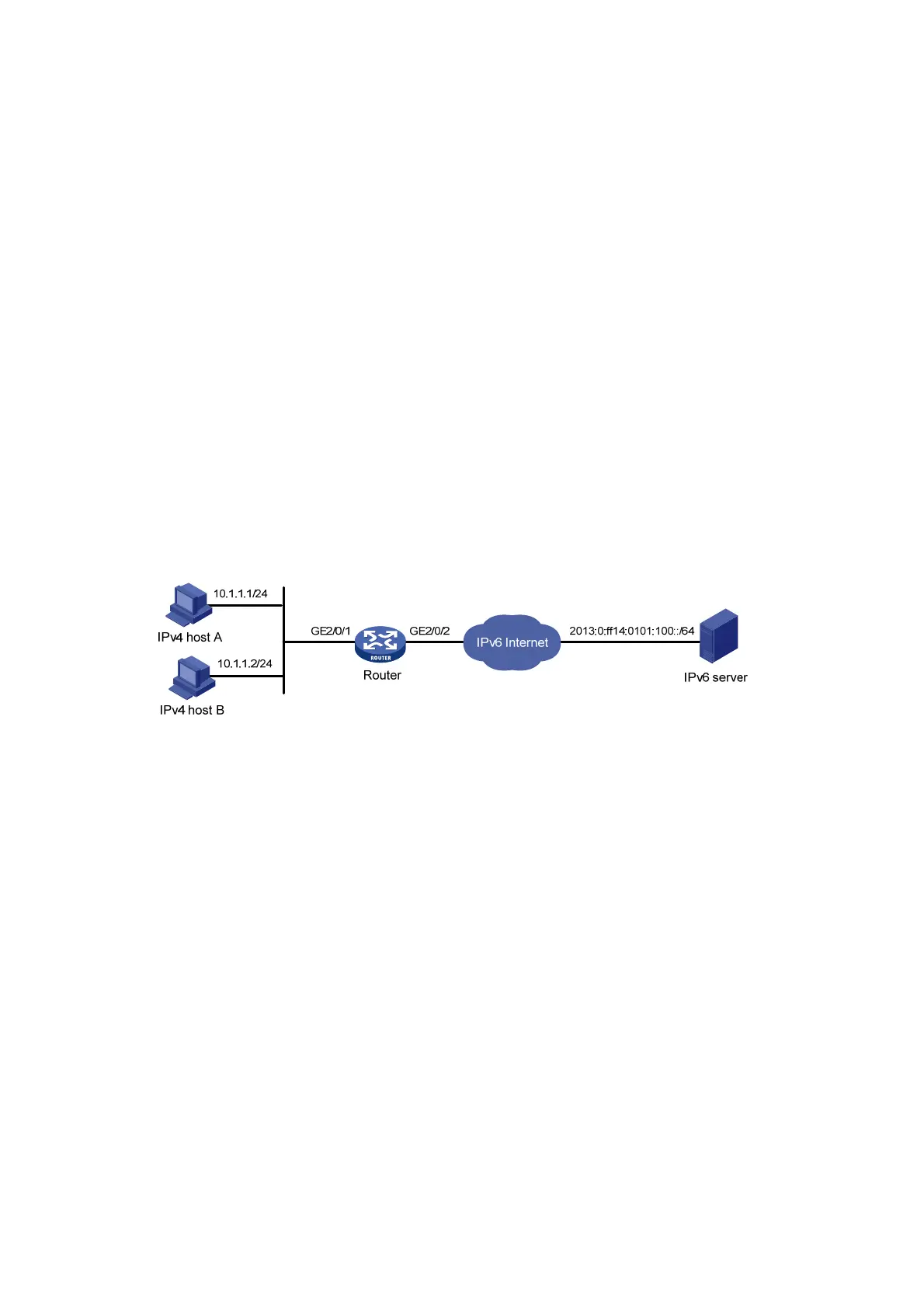

Figure 164 Network diagram
Configuration procedure
# Specify IP addresses for the interfaces on the router. (Details not shown.)
# Configure IPv4 ACL 2000 to permit IPv4 packets only from subnet 10.1.1.0/24 to pass through.
<Router> system-view
[Router] acl number 2000
[Router-acl-ipv4-basic-2000] rule permit source 10.1.1.0 0.0.0.255
[Router-acl-ipv4-basic-2000] rule deny
[Router-acl-ipv4-basic-2000] quit
# Configure NAT64 prefix 2012:: 96.
[Router] aft prefix-nat64 2012:: 96
# Configure the router to use NAT64 prefix 2012:: 96 to translate source addresses of packets
permitted by IPv4 ACL 2000.
[Router] aft v4tov6 source acl number 2000 prefix-nat64 2012:: 96
# Map source IPv6 address 2013:0:ff14:0101:100:: to source IPv4 address 20.1.1.1.
[Router] aft v6tov4 source 2013:0:ff14:0101:100:: 20.1.1.1
# Enable AFT on GigabitEthernet 2/0/1, which is connected to the IPv4 network.
[Router] interface gigabitethernet 2/0/1
To Next Page
