The configuration might vary by DNS server. The following configuration is performed on a PC

running Windows Server 2008 R2.

a. Select Start > Programs > Administrative Tools > DNS.

The DNS server configuration page appears, as shown in Figure 44.

b. Right-cli

ck Forward Lookup Zones, select New Zone, and then follow the wizard to create

a new zone named com.

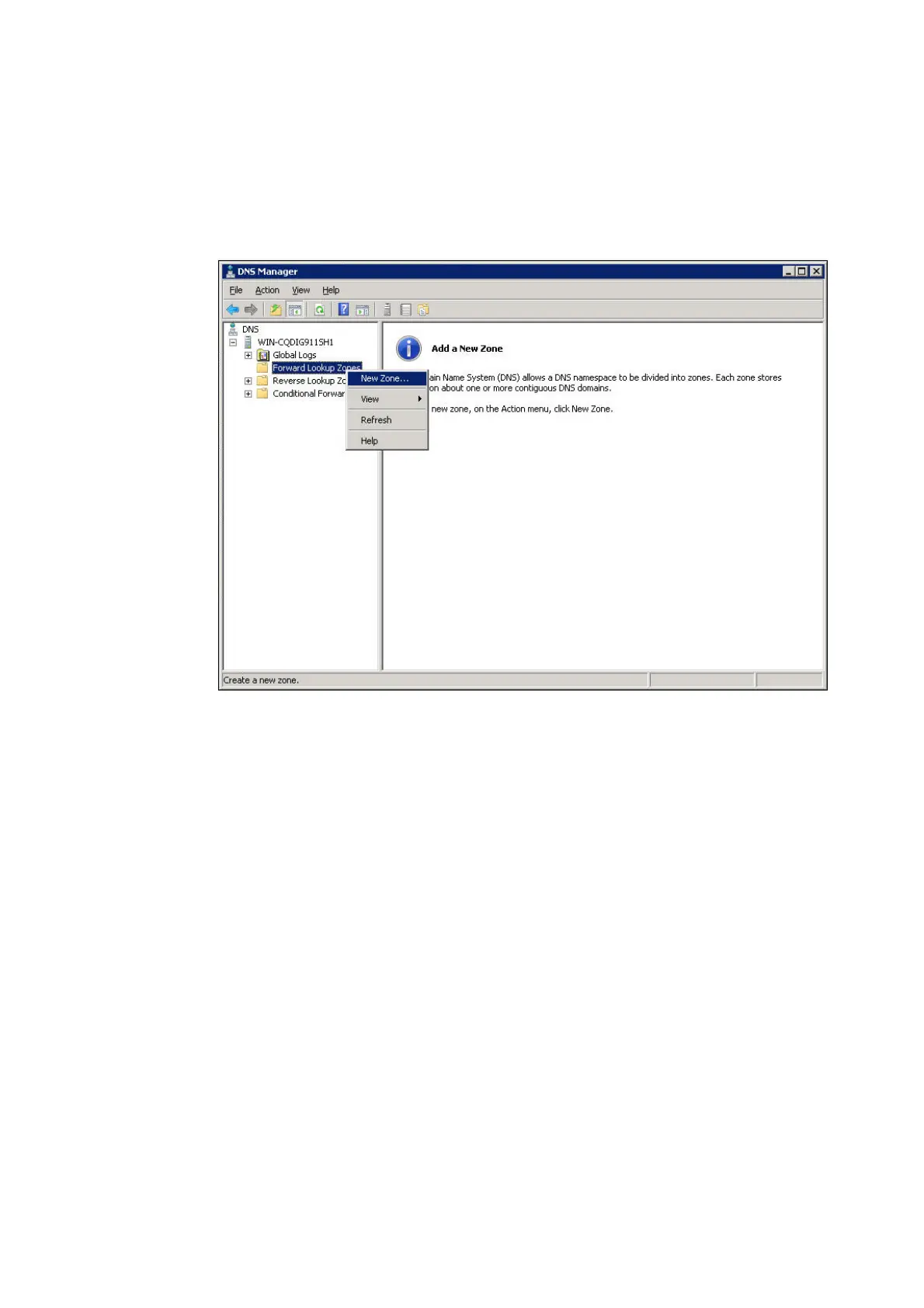

Figure 44 Creating a zone

c. On the DNS server configuration page, right-click zone com and select New Host.
