The client ID of the interface GigabitEthernet 1/0/1 on Router B is:

0030-3030-662e-6532-3030-2e30-3030-322d-4574-6865-726e-6574.

The MAC address of the interface GigabitEthernet 1/0/1 on Router C is 000f-e200-01c0.

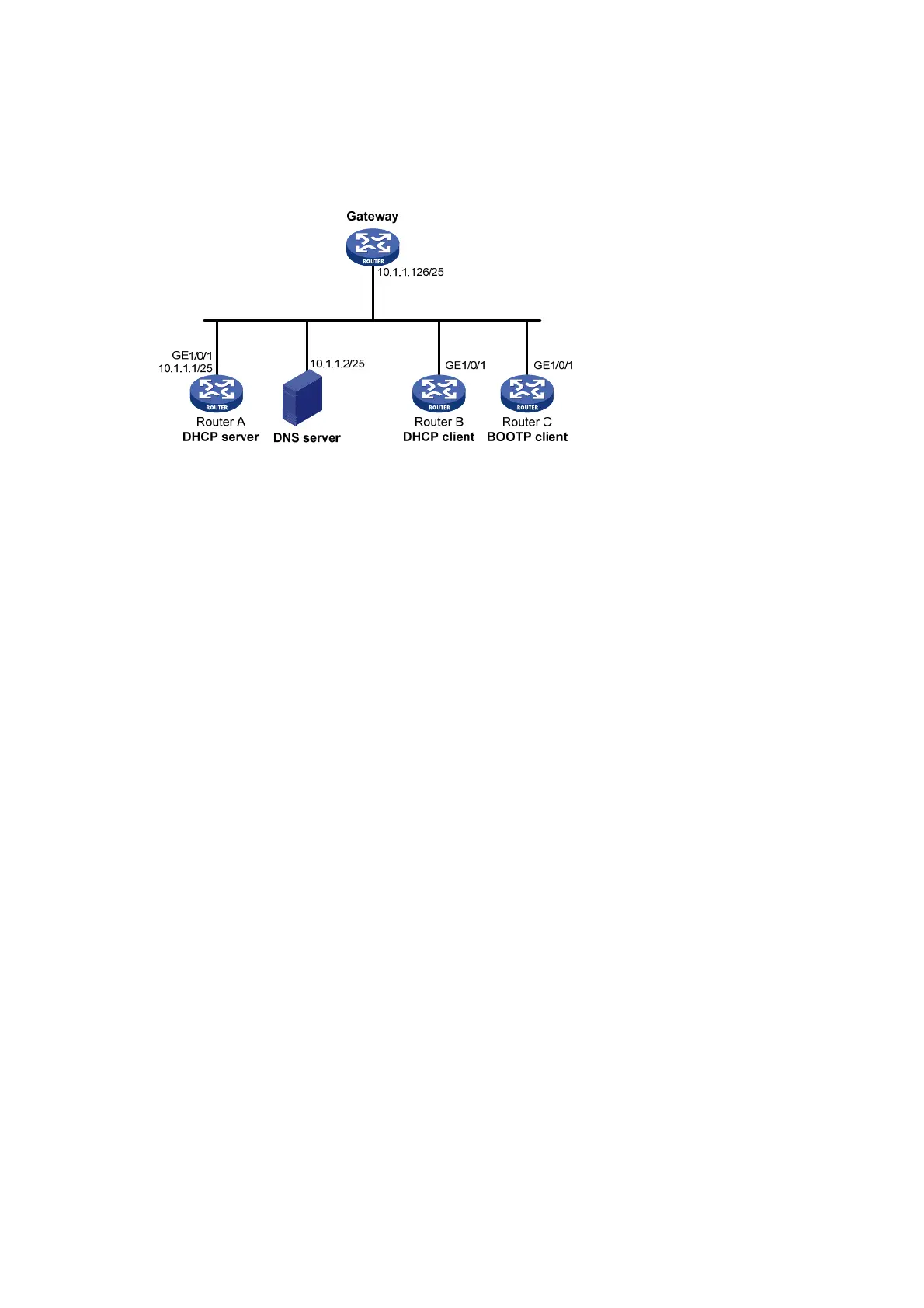

Figure 24 Network diagram

Configuration procedure

1. Specify an IP address for GigabitEthernet 1/0/1 on Router A:

<RouterA> system-view

[RouterA] interface gigabitethernet 1/0/1

[RouterA-GigabitEthernet1/0/1] ip address 10.1.1.1 25

[RouterA-GigabitEthernet1/0/1] quit

2. Configure the DHCP server:

# Enable DHCP.

[RouterA] dhcp enable

# Enable the DHCP server on GigabitEthernet 1/0/1.

[RouterA] interface gigabitethernet 1/0/1

[RouterA-GigabitEthernet1/0/1] dhcp select server

[RouterA-GigabitEthernet1/0/1] quit

# Create DHCP address pool 0.

[RouterA] dhcp server ip-pool 0

# Configure a static binding for Router B.

[RouterA-dhcp-pool-0] static-bind ip-address 10.1.1.5 25 client-identifier

0030-3030-662e-6532-3030-2e30-3030-322d-4574-6865-726e-6574

# Configure a static binding for Router C.

[RouterA-dhcp-pool-0] static-bind ip-address 10.1.1.6 25 hardware-address

000f-e200-01c0

# Specify the DNS server and gateway.

[RouterA-dhcp-pool-0] dns-list 10.1.1.2

[RouterA-dhcp-pool-0] gateway-list 10.1.1.126

[RouterA-dhcp-pool-0] quit

[RouterA]

Verifying the configuration

# Verify that Router B can obtain IP address 10.1.1.5 and all other network parameters from Router A.

(Details not shown.)
