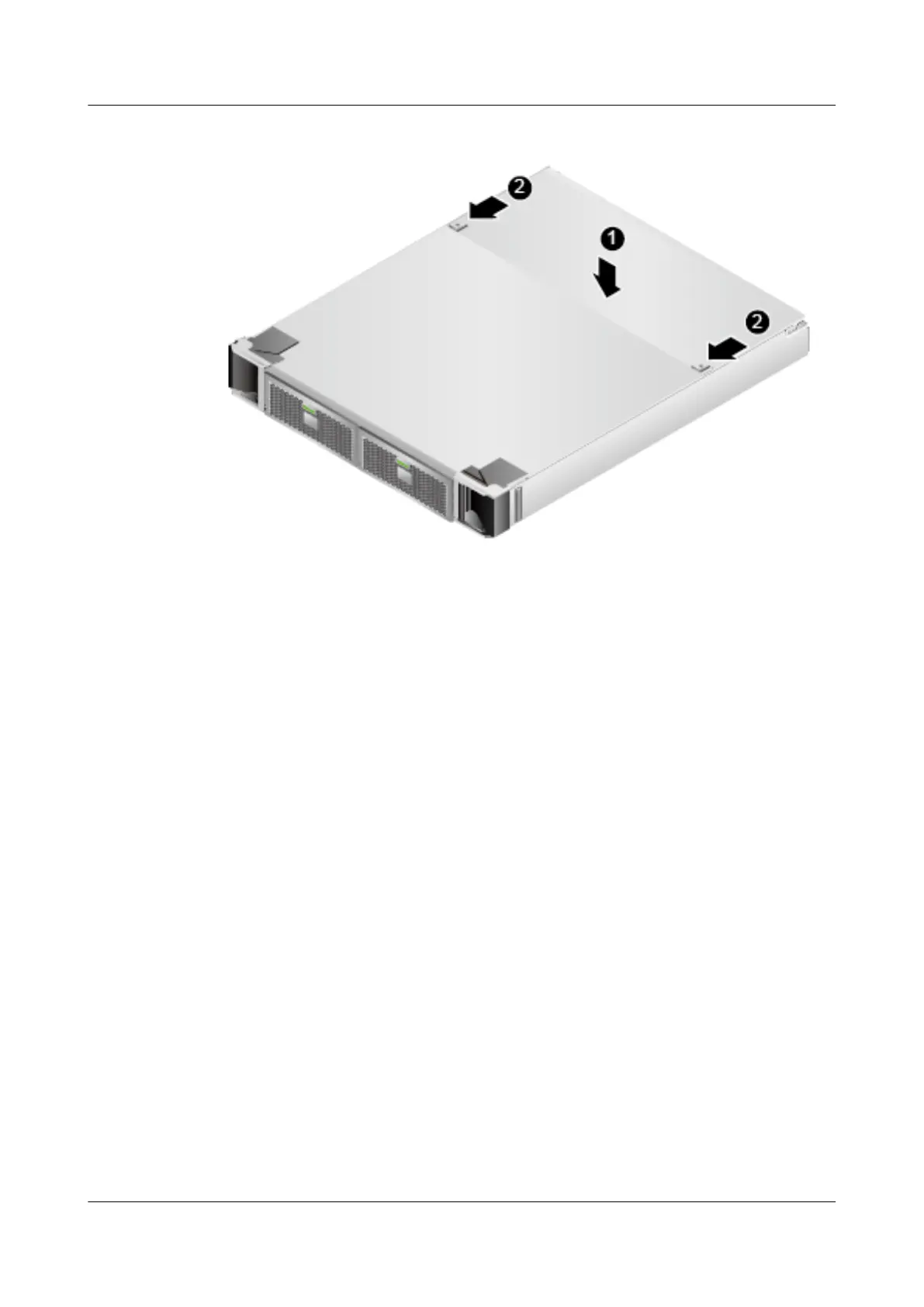

Figure 5-80 Installing a cover for the front I/O module
----End
5.6.9 Removing a Hard Disk Indicator Panel
This topic describes how to remove a hard disk indicator panel.
Scenarios
Remove a hard disk indicator panel when it is faulty and needs to be replaced.
Prerequisites
Conditions
● You have powered
o the RH8100 V3. For details, see 6.2 Powering O the
RH8100 V3. Then you have removed all power cables from the server.
● You have removed the front I/O module. For details, see 5.6.1 Removing the
Front I/O Module.
Data
● You have obtained the cabinet number and chassis number of the RH8100 V3.
● You have located the RH8100 V3 based on the preceding information, and
labeled its panel to prevent misoperations.
● You have determined the position on the RH8100 V3 for removing the hard
disk indicator panel.
Tools
● ESD gloves
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 197

Huawei RH8100 V3 Specifications

General

RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Storage	2.5-inch SAS/SATA HDDs or SSDs
Power Supply	Dual redundant power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Management	iBMC (Intelligent Baseboard Management Controller)
