How the Plasma Power Supply Operates

168 810430 Troubleshooting Guide Powermax65/85/105 SYNC

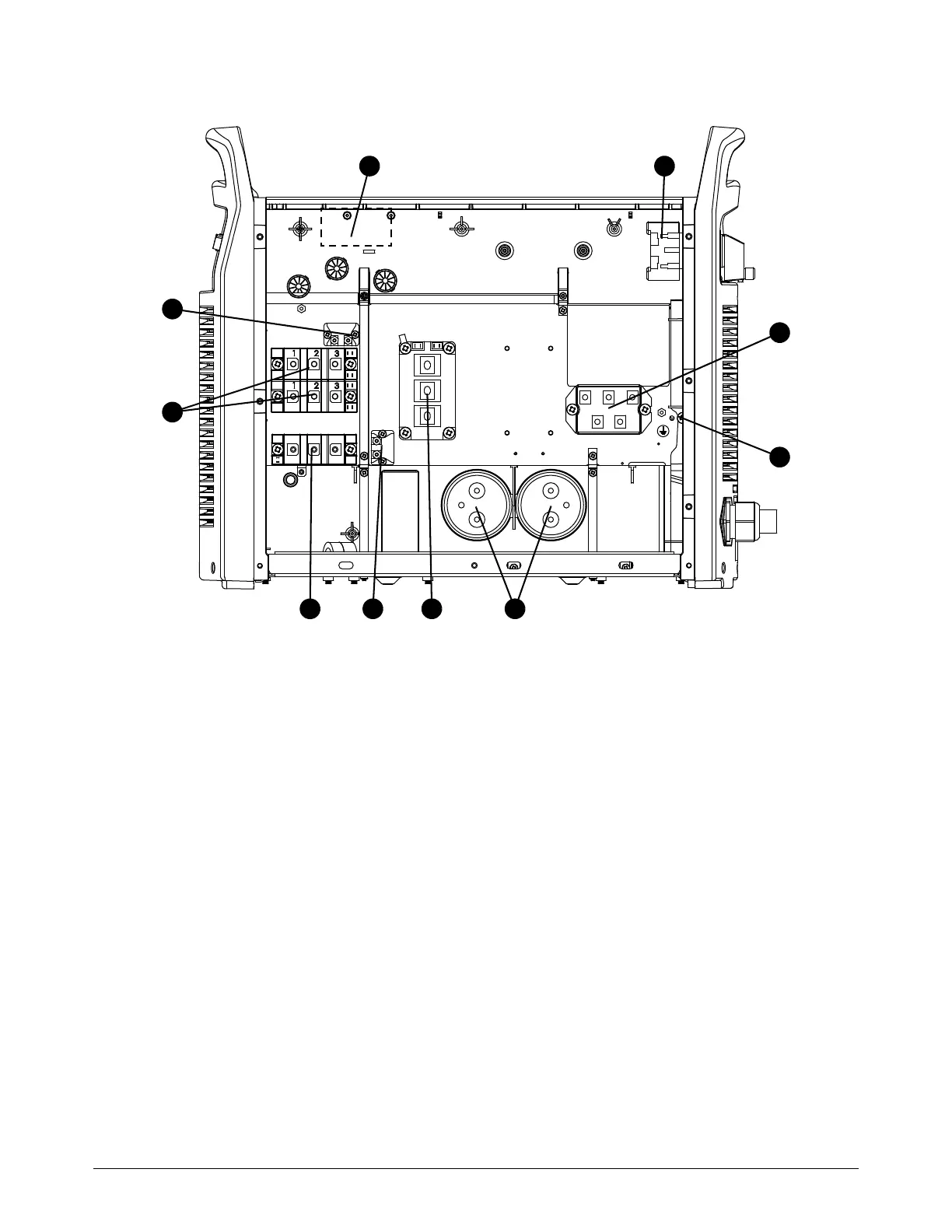

Figure 49 – 380 V CCC / 400 V CE plasma power supply (power PCB removed)

1 Output snubber resistor

2 Output bridge diode

3 Pilot arc IGBT

4 Inverter snubber resistor

5 Inverter IGBT module

6 Bulk capacitors

7 Ground

8 Input diode bridge

9 Power switch (S1)

10 Optional serial PCB
