How the Plasma Power Supply Operates

Powermax65/85/105 SYNC Troubleshooting Guide 810430 167

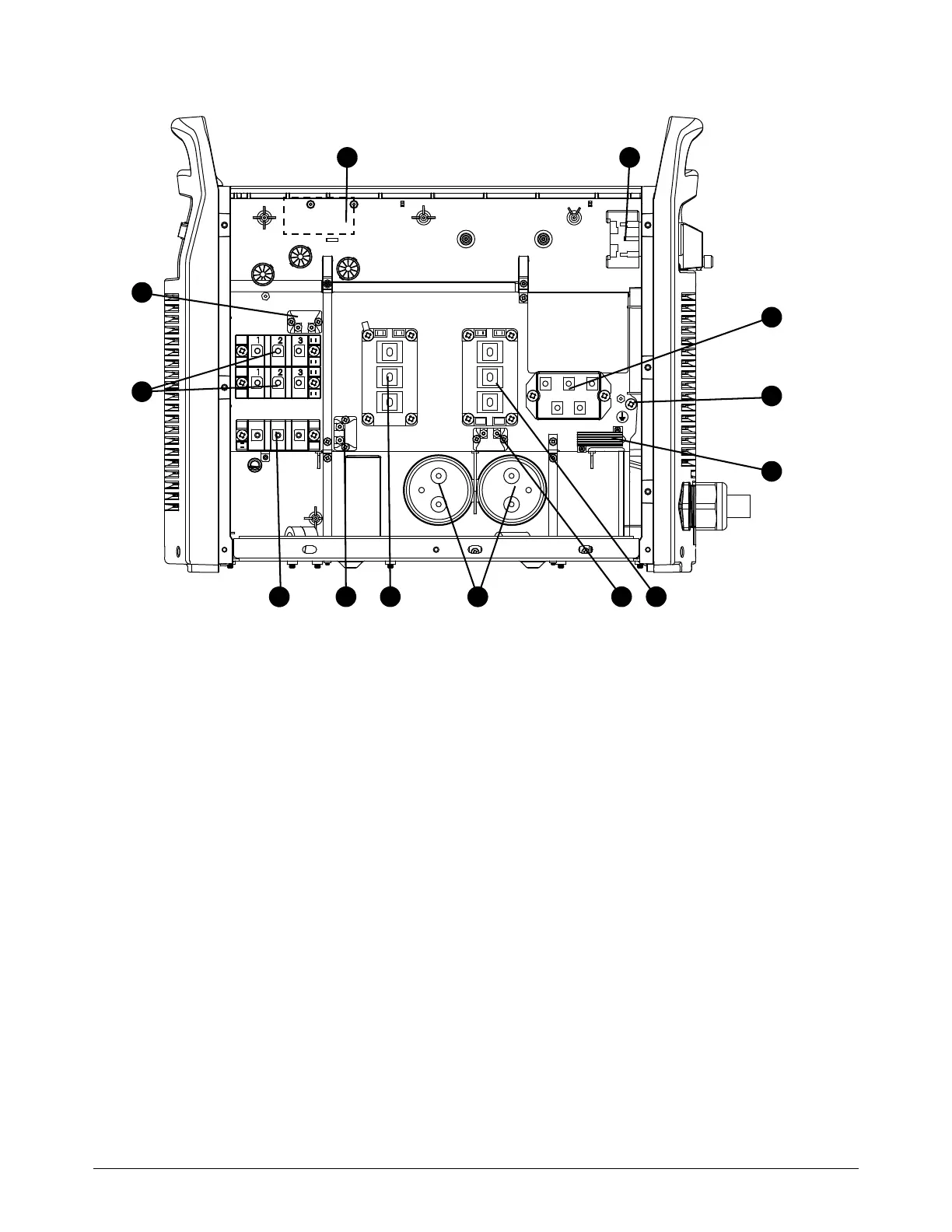

Figure 48 – 230 V – 400 V CE plasma power supply (power PCB removed)

13 12

1 Output snubber resistor

2 Output diode bridge

3 Pilot arc IGBT

4 Inverter snubber resistor

5 Inverter IGBT module

6 Bulk capacitors

7 PFC snubber resistor

8 PFC IGBT module

9 Damper resistor

10 Ground

11 Input diode bridge

12 Power switch (S1)

13 Optional serial PCB
