Hypertherm Powermax65 SYNC Troubleshooting Guide

Troubleshooting for Fault Codes
3

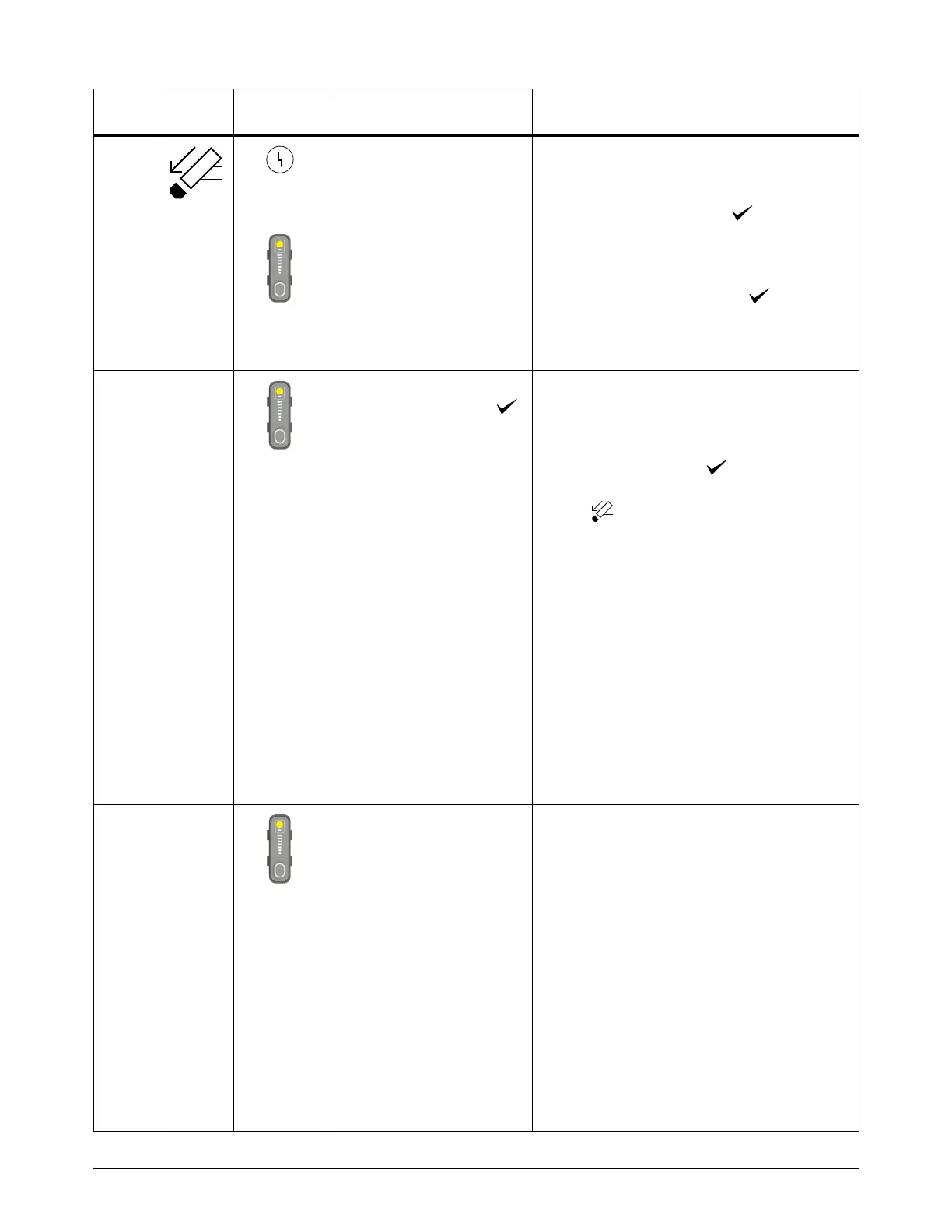

52 810430 Troubleshooting Guide Powermax65/85/105 SYNC
0-50-1
Yellow
Yellow
The torch-lock switch is set to
the yellow lock (X) position.
This fault code stops the system from operating.
Do the following. A restart is not necessary.
• Hand torch: Move the torch-lock switch to
the green “ready to fire” ( ) position. Fire
the torch 1 time to get the warning puffs of
air. Fire the torch again to get a plasma arc.
• Machine torch: Move the torch-lock switch
to the green “ready to fire” ( ) position.
Fire the torch to get a plasma arc.
• Mini machine torch: This fault code is not
applicable to the mini machine torch.
0-50-2 none
Yellow
The torch-lock switch is set to
the green “ready to fire” ( )
position, but the torch is not
prepared to fire.
This fault code identifies a condition in which an
additional step is necessary for hand torches
before the hand torch will fire a plasma arc.
• When you move the torch-lock switch to the
green “ready to fire” ( ) position, the fault
code changes from 0-50-1 to 0-50-2, and
the icon goes off.
• Hand torch: Fire the torch 1 time to get the
warning puffs of air. The 0-50-2 fault code
goes off, and the LED on the hand torch
changes from yellow to green. The torch is
now prepared to fire a plasma arc.
• Machine torch: The 0-50-2 fault code
shows for approximately 1 second and then
goes off. Fire the torch to get a plasma arc.
There are no warning puffs of air. If the
0-50-2 fault code does not go off, send a
STOP signal from the CNC to remove the
fault.
• Mini machine torch: This fault code is not
applicable to the mini machine torch.
0-50-3 none
Yellow
The system is reading data
from the cartridge.
This fault code flashes quickly while the system
reads configuration data from the cartridge.
Wait for the fault code to go away on its own.
• The system will not cut until the fault
code goes away.
• This fault code can show for up to
6 seconds if electrical noise causes
interference with the data connection.
• If the system cannot read the data from the
cartridge, a different fault code will show.
• Hand torch: The usual behavior is to see a
0-50-2 fault code after 0-50-3 goes away.
Fire the torch 1 time to get the warning
puffs of air. The 0-50-2 fault code goes
away. The torch is now prepared to fire a
plasma arc.
Fault
code
Fault
icon
Fault
LEDs Description Solutions
