Hypertherm XPR300 User Manual

Parts List
9
366 809480 Instruction Manual XPR300

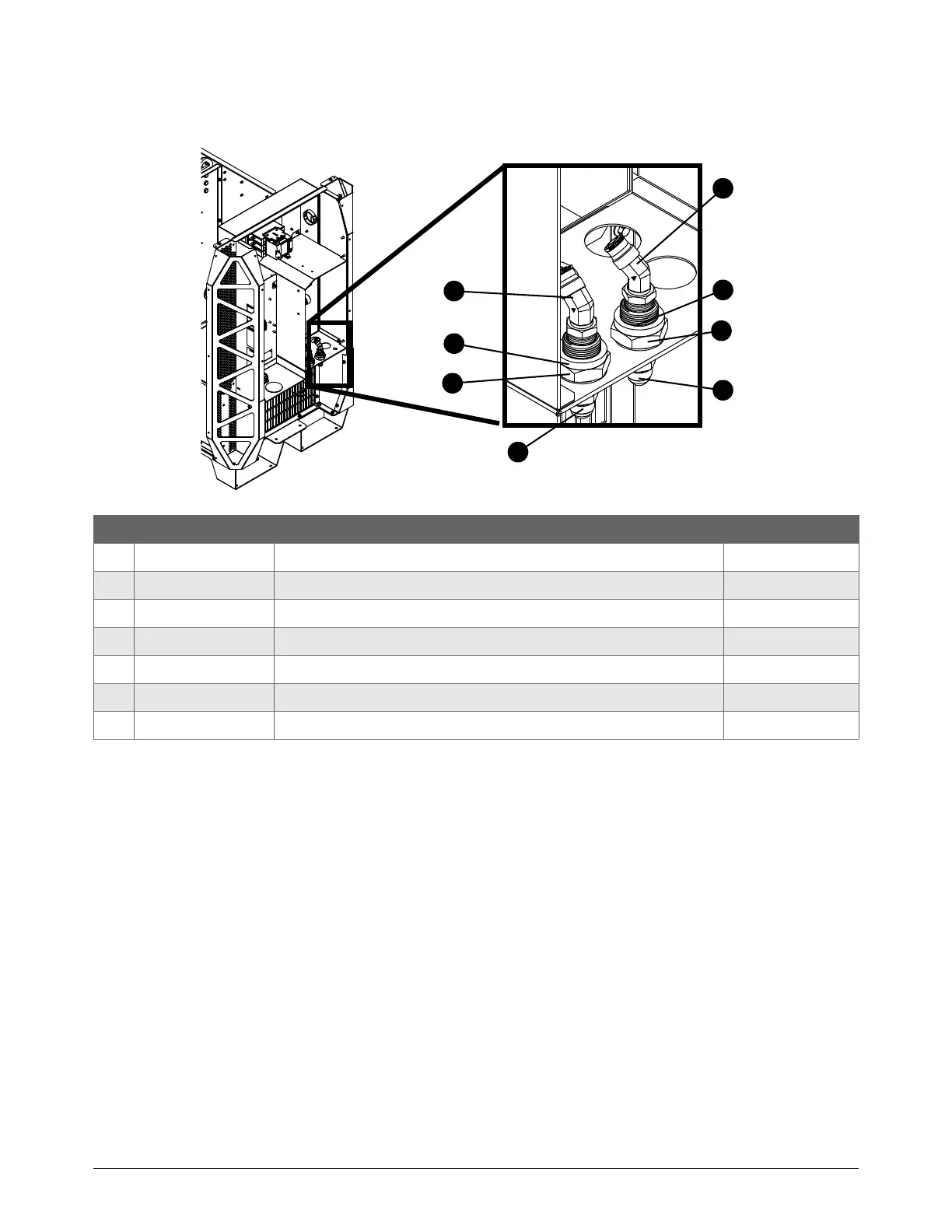

Coolant adapters in the rear compartment
Part number Description Quantity
1 015889 Elbow adapter: 1/2 inch NPT X 1/2 inch tube, 45° swivel 2
2 015903 Red ring: 1.13 inches inner diameter 1
3 015888 Adapter: 1/2 inch FNPT X 1-1/2 inch length bulkhead 2
015899 Red ring: 0.87 inch inner diameter (not shown) 1
4 015029 Adapter: 1/2 inch NPT X #8 male 2
015898 Green ring: 0.87 inch inner diameter (not shown) 1
5 015902 Green ring: 1.13 inch inner diameter 1
1
2
3
4
5
4
3
1

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
