CE Mark
(6) Surge protector
Install a surge protector on the primary side of the 24-VDC power supply to protect the equipment from surge noise
generated by lightning, etc.
Manufacturer: Okaya Electric
Model: ZCAT3035-1330

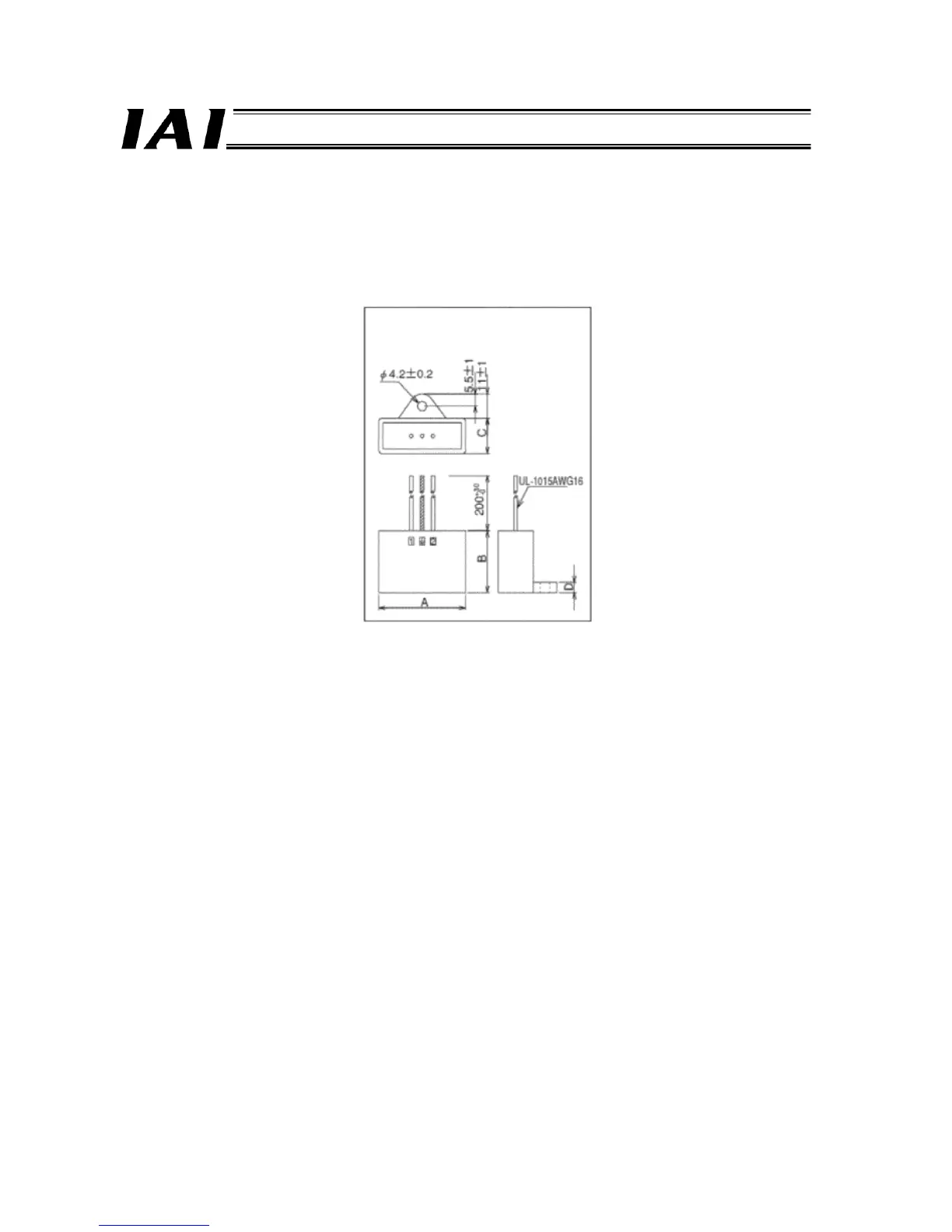

External View of Surge Protector
(7) Cables
Take note that cables are also subject to various limitations.
A) All cables connected to the ROBONET, such as the motor cable, encoder cable and various network cables, must
be less than 30 m long.
B) For the CC-Link cable, use a dedicated Version 1.10 cable (terminal resistance: 110 Ω).
BWZ series
